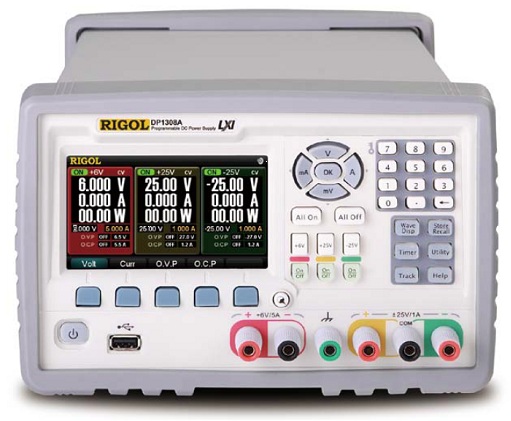

DP1000A Series Power Supplies
- 3 channel, 80 Watt or 1 channel, 160 Watt Power Supplies
- Linear Power Supply design for improved performance
- Full color display with real time Volts, Amps, and Watts readout
- Wave Track monitors outputs over time
- GPIB, LXI-C (Ethernet), USB host & device interfaces all standard
- Program channels to automatically change value over time
- Save and store setups on flash memory drive
DP1000A Series Power Supplies are high-performance 80 W triple output or 160 W single output programmable linear DC power supplies. It has excellent features including timed outputs and tracking capabilities; extremely clean power ripple and noise, comprehensive over-voltage, over current, over-temperature protection, a clean user interface, super performance specifications, and standard interfaces. These power supplies meet the requirements of a wide range of benchtop development applications as well as industrial control and production testing.
|
Model
|
||||||||||
|
Output Ranges/Channels
|
16V/10A
|
32V/5A
|
+6 V
|
+25 V
|
-25 V
|
|||||
|
DC Output ( 0℃ - 40℃)
|
||||||||||
|
Voltage
|
0 to 16 V
|
0 to 32 V
|
0 to +6V
|
0 to +25 V
|
0 to -25 V
|
|||||
|
Current
|
0 to 10 A
|
0 to 5 A
|
0 to 5 A
|
0 to 1 A
|
0 to 1 A
|
|||||
|
Overvoltage Protection
|
0.1 V to 35.2 V
|
0.1 V to 6.5 V
|
0.1 V to 27 V
|
-0.1 V to -27 V
|
||||||
|
Overcurrent Protection
|
0.1 A to 11 A
|
0.1 A to 5.5 A
|
0.1 A to 1.2 A
|
0.1 A to 1.2 A
|
||||||
|
Load Regulation± (output percentage + offset)
|
||||||||||
|
Voltage
|
< 0.01% + 2 mV
|
|||||||||
|
Current
|
< 0.005% + 250 μA
|
< 0.01% + 250 μA
|
||||||||
|
Line Regulation± (output percentage + offset)
|
||||||||||
|
Voltage
|
< 0.01% + 2 mV
|
|||||||||
|
Current
|
< 0.01% + 250 μA
|
|||||||||
|
Ripple and Noise (20 Hz - 20 MHz)
|
||||||||||
|
Normal Mode Voltage
|
< 350 μV rms/3 mVpp
|
< 350 μV rms/2 mVpp
|
||||||||
|
Normal Mode Current
|
< 2 mA rms
|
< 2 mA rms
|
< 500 μA rms
|
|||||||
|
Common Mode Current
|
-
|
<1.5 μA rms
|
||||||||
|
Accuracy 12 Months[1] (25℃±5℃)±(output percentage + offset)
|
||||||||||
|
Programming
|
Voltage
|
0.05% + 10 mV
|
0.1% + 5 mV
|
0.05% + 20 mV
|
||||||
|
|
Current
|
0.2% + 10 mA
|
0.2% + 10 mA
|
0.15% + 4 mA
|
||||||
|
Read Back
|
Voltage
|
0.05% + 5 mV
|
0.1% + 5 mV
|
0.05% + 10 mV
|
||||||
|
|
Current
|
0.15% + 5 mA
|
0.2% + 10 mA
|
0.15% + 4 mA
|
||||||
Datasheet
User’s Manual
Programming Manual
Specifications
For information on which interface or VISA layer to select and how to install review the How to Guide:
Using VISA and drivers to communicate with instruments
For help writing your own programs for our instruments review the programming manual or contact us directly.
Drivers
Software Applications
Standard Accessories
Calibration Form, Packing List, Warranty Card, and Quick Guide
USB Cable
Power Cord
CD Rom (includes manual and software)
Backup Fuse
