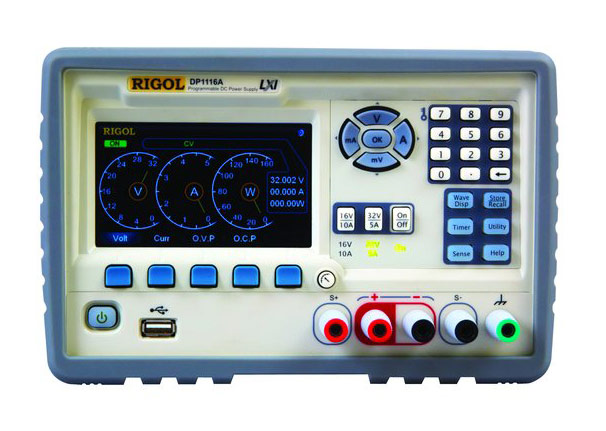

DP1116A | Dual Range 160 Watt Power Supply
Selection Guide
The DP1116A Power Supply is a high-performance 160 W single output programmable linear DC power supplies including 32 V@ 5 A and 16 V@ 10 A ranges. It has excellent features including timed outputs and tracking capabilities; extremely clean power ripple and noise, comprehensive over-voltage, over current, over-temperature protection, a clean user interface, super performance specifications, and standard interfaces. These power supplies meet the requirements of a wide range of benchtop development applications as well as industrial control and production testing.
- Single Channel, 160 Watt Power Supply
- Linear Power Supply design for improved performance
- Full color display with real time Volts, Amps, and Watts readout
- Wave Track monitors outputs over time
- GPIB, LXI-C (Ethernet), USB host & device interfaces all standard
- Program channels to automatically change value over time
- Save and store setups on flash memory drive
|
Model
|
|||
|
Output Ranges/Channels
|
16V/10A
|
32V/5A
|
|
|
DC Output ( 0℃ - 40℃)
|
|||
|
Voltage
|
0 to 16 V
|
0 to 32 V
|
|
|
Current
|
0 to 10 A
|
0 to 5 A
|
|
|
Overvoltage Protection
|
0.1 V to 35.2 V
|
||
|
Overcurrent Protection
|
0.1 A to 11 A
|
||
|
Load Regulation± (output percentage + offset)
|
|||
|
Voltage
|
< 0.01% + 2 mV
|
||
|
Current
|
< 0.005% + 250 μA
|
||
|
Line Regulation± (output percentage + offset)
|
|||
|
Voltage
|
< 0.01% + 2 mV
|
||
|
Current
|
< 0.01% + 250 μA
|
||
|
Ripple and Noise (20 Hz - 20 MHz)
|
|||
|
Normal Mode Voltage
|
< 350 μV rms/3 mVpp
|
||
|
Normal Mode Current
|
< 2 mA rms
|
||
|
Common Mode Current
|
-
|
||
|
Accuracy 12 Months[1] (25℃±5℃)±(output percentage + offset)
|
|||
|
Programming
|
Voltage
|
0.05% + 10 mV
|
|
|
|
Current
|
0.2% + 10 mA
|
|
|
Read Back
|
Voltage
|
0.05% + 5 mV
|
|
|
|
Current
|
0.15% + 5 mA
|
|
| DP1116A Specs |
| |
