DSA1000  |  Series Spectrum Analyzers

 Selection Guide View Larger Image
Array ( [status] => Array ( [0] => 1 [1] => DSA1020 ) )
DSA1020
Price: $2,999
Ships in 4-6 weeks

Array ( [status] => Array ( [0] => 1 [1] => DSA1030 ) )
DSA1030
Price: $3,999
Ships in 4-6 weeks

Array ( [status] => Array ( [0] => 1 [1] => DSA1030-PA ) )
DSA1030-PA
Price: $4,499
Ships in 4-6 weeks

Array ( [status] => Array ( [0] => 1 [1] => DSA1030-PA-TG3 ) )
DSA1030-PA-TG3
Price: $5,498
Ships in 4-6 weeks

Array ( [status] => Array ( [0] => 1 [1] => DSA1030-TG3 ) )
DSA1030-TG3
Price: $4,998
Ships in 4-6 weeks

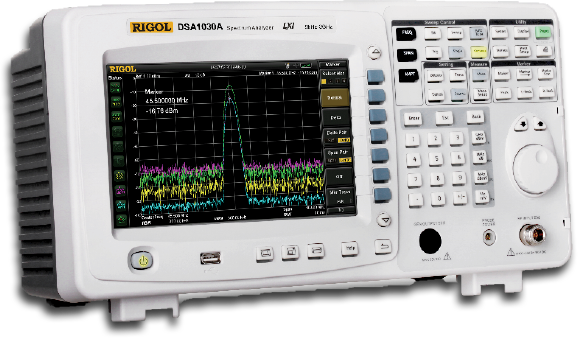

DSA1000 series is a powerful economic spectrum analyzer with premium performance for bench and field applications. Our use of digital IF technology guarantees the reliability and performance required to meet the most demanding RF applications. With its exceptional value for the price it is widely used in electronic manufacture, maintenance, RF education, and R&D.
  • 2 and 3 GHz frequency models available
  • All digital IF Design
  • 100 Hz Minimum Resolution Bandwidth
  • Unique Widescreen Display and VGA output
  • Save thousands of measurements and system configurations with 1 GB of internal storage
  • Options including Tracking Generator, Battery, Advanced Measurements, PreAmplifier, and Case
Model
Frequency Range
9kHz - 3GHz
9kHz - 2GHz
DANL *1
-138dBm
-120dBm
Phase Noise
<-80dBc/Hz @10kHz offset typical
Total Amplitude Accuracy*2
<1.5dB
Minimum RBW
100Hz
RF Input Maximum Level
+30dBm
Interfaces
USB host & device, LXI-C (Ethernet), GPIB (optional), VGA output, 10 MHz REF In, 10 MHz REF Out, External Trigger In
Trigger Source
Free Run, Video, External
External Trigger Level
5 V TTL
Dimensions
Width x Height x Depth = 399mm X 223mm X 159mm
Weight
6.2kg(without battery)

*1: 100Hz RBW; DSA-1020: 10 MHz and up, typical; DSA-1030: 10 MHz to 2.5 GHz, preamplifier on, typical
*2: 95% confidence level, see user's manual for complete specifications

DSA1000 Specs

DSA1000 Specs
