DHO1000
The DHO1000 Series provides improved signal integrity and value with our latest oscilloscope technology. Our UltraVision III platform combined with a new ASIC chip design that provides true 12 bit samples makes the DHO1000 a great solution for benchtop applications where noise and accuracy are paramount. With bandwidths from 70 MHz to 200 MHz, these 2 and 4 channel oscilloscopes have our best signal visualization capabilities. Combine 50-100 Million points of memory, our new Ultra Acquire burst capture mode, and precision measurements for incredible signal fidelity value. The DHO1000 Series is a powerful entry level solution for engineers looking for next generation signal quality and value.
Explore the DHO1000 Series Digital Oscilloscopes

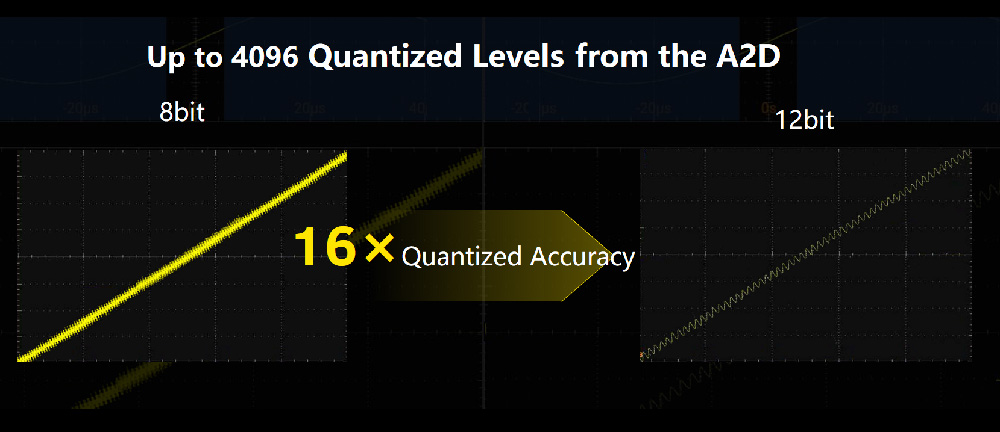

12-bit vertical resolution
12-bit resolution (212=4096) to see the most signal detail

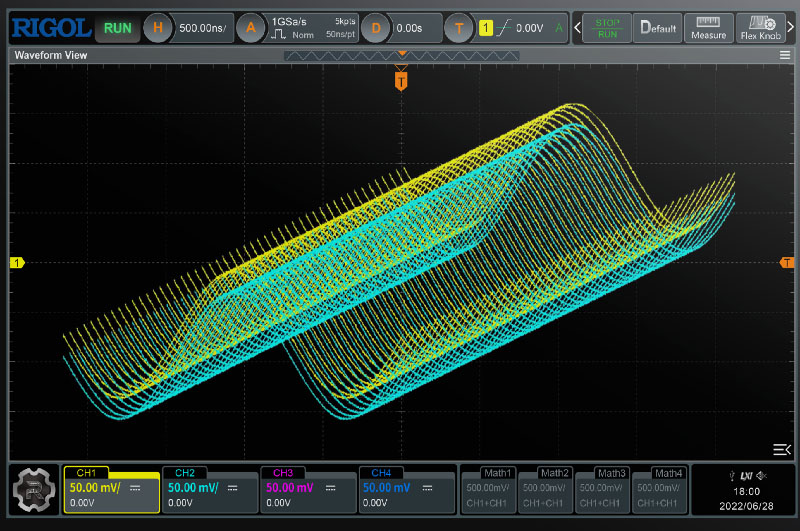

Ultra Acquire
The UltraAcquire time-lapse acquisition mode is provided, with a high waveform capture rate of up to 1,500,000 wfms/s, not missing any frame of abnormal waveforms.

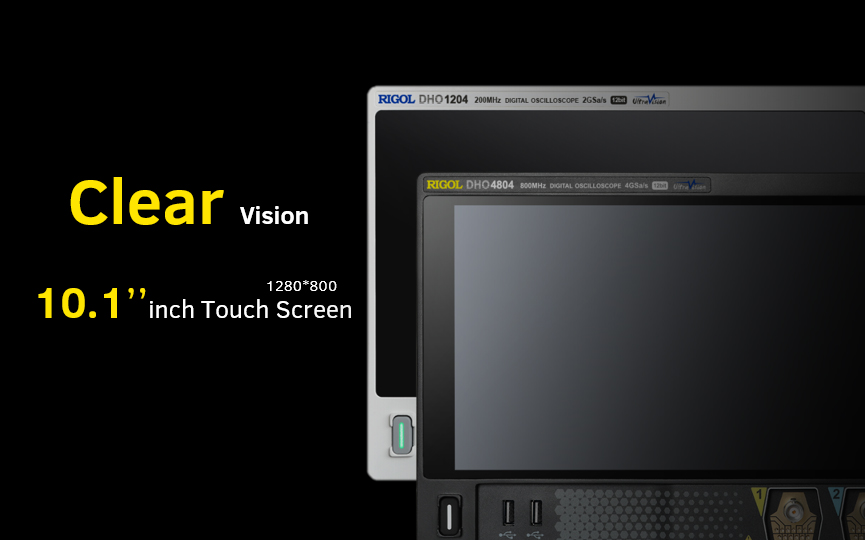

10.1-inch high-definition touch screen
It provides a 10.1-inch high-definition touch screen for more convenient human-computer interaction.

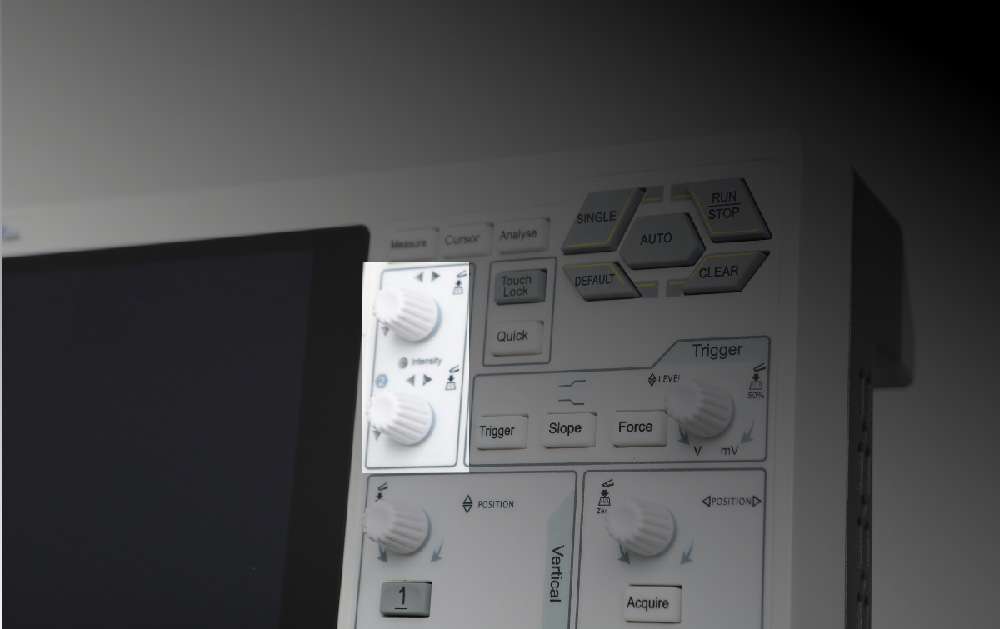

Flex knob
The dual multi-functional knob design eliminates the complex switching steps of a single knob and enables more efficient interaction.

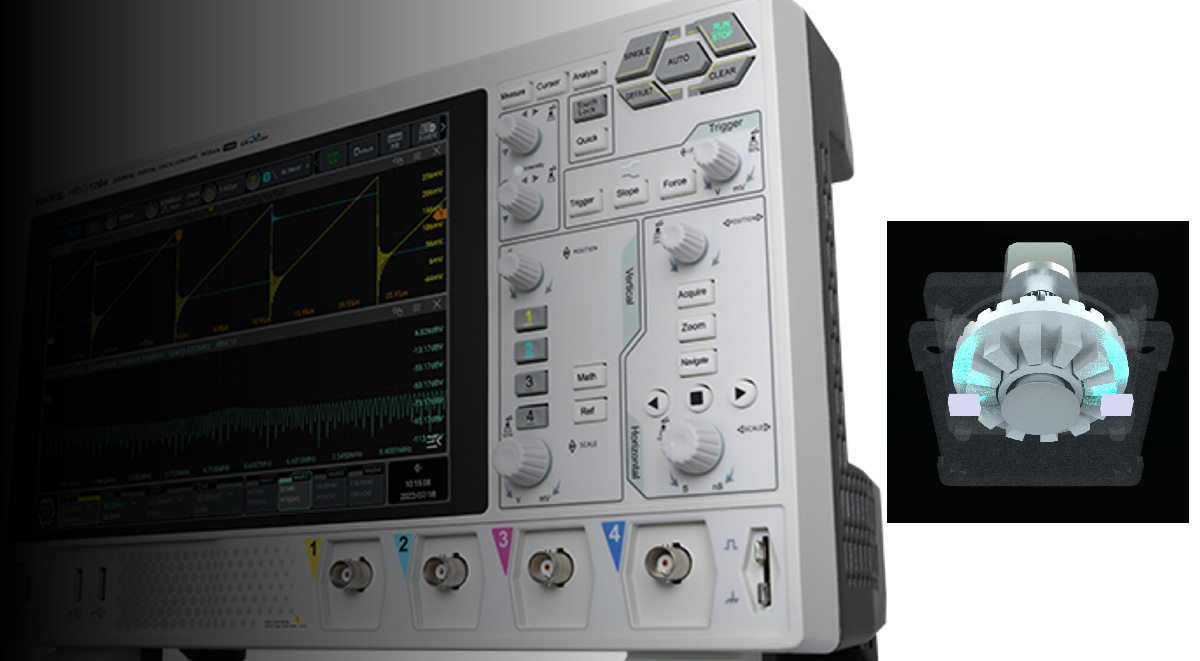

Photoelectric encoder
Equipped with a standard photoelectric encoder, it has an ultra-long service life of 34 years to safeguard your fixed assets.
DHO1000
Model |
Analog Channels |
Vertical Resolution |
Bandwidth |
Real-time Sample Rate |
Max Memory Depth |
Waveform Capture Rate |
Price |
|
|---|---|---|---|---|---|---|---|---|
| DHO1072 | 2 | 12 Bit | 70 MHz | 2 GSa/s | 50 Mpts | 50 Kwfms/s | $739 |
|
| DHO1074 | 4 | 12 Bit | 70 MHz | 2 GSa/s | 50 Mpts | 50 Kwfms/s | $979 |
|
| DHO1102 | 2 | 12 Bit | 100 MHz | 2 GSa/s | 50 Mpts | 50 Kwfms/s | $979 |
|
| DHO1104 | 4 | 12 Bit | 100 MHz | 2 GSa/s | 50 Mpts | 50 Kwfms/s | $1,189 |
|
| DHO1202 | 2 | 12 Bit | 200 MHz | 2 GSa/s | 50 Mpts | 50 Kwfms/s | $1,189 |
|
| DHO1204 | 4 | 12 Bit | 200 MHz | 2 GSa/s | 50 Mpts | 50 Kwfms/s | $1,399 |
|
DHO1000 Quick Guide
|
|
DHO1000 User's Guide
|
|
DHO Programming Guide
|
|
DHO1000 Datasheet & Specs
|
| How do I install UltraSigma Compatible software? | You will need to have Ultra Sigma installed first.
Contact Rigol for more information.
Ultra IQ provides modulation waveform editing for the DSG3000 series of RF sources.
Ultra Power provides instrument control and data collection for the Rigol DP series of power supplies.
Ultra Signal Studio is a legacy software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG4000 and DG5000 arbitrary waveform generators.
Ultra Station is a software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG1000Z, DG4000 and DG5000 arbitrary waveform generators.
Ultra Spectrum provides instrument control and spectrum analysis for Rigol DSA1000, 1000A, and 800 series Digital Spectrum Analyzers. |
| User's Guide for UltraSigma Software | UltraSigma is a VISA based communication and shell program that eases communication and remote control of instrumentation.
We have built a short user's guide to familiarize user's with the features of UltraSigma. |
 UltraSigma Instrument Connectivity Driver | Software for Communicating with instruments over VISA. UltraSigma is also a container and gateway for software such as Ultra Signal Studio, Ultra Spectrum, Ultra Power, and more. |
| C#.NET basic instrument communication example | Here is a short example on using National Instrument VISA and C#.NET to communicate with an instrument. |
| How do I install UltraSigma? | UltraSigma is a software installation that provides basic communications between a computer and an instrument using VISA.
It is also used to contain instrument specific software like UltraSpectrum for use with Rigol Spectrum Analyzers, Ultra Signal Studio for Arbitrary Waveform Generators, and Ultra Power for Power Supplies. |
| Rigol Software Installation and Usage guide | An overview of the installation and usage of the Ultra Family of software products from RIGOL |
Current Probe
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RP1002C
|
Current Probe, DC-1 MHz,70A peak |
$1,791
|
|
|
RP1001C
|
Current Probe, DC-300 kHz,100 Apeak |
$867
|
|
|
RP1003C
|
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply. |
$3,408
|
|
|
RP1004C
|
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply. |
$4,909
|
|
|
RP1005C
|
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply. |
$4,332
|
|
|
RP1006C
|
Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise |
$5,490
|
|
50 Ohm Adaptor
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
ADP0150BNC
|
50 Ohm impedance adapter for oscilloscopes or generators |
$19
|
|
|
BNC Cable
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
CB-BNC-BNC-MM-100
|
BNC Cable (length 1 meter) |
$20
|
|
|
Differential Probe
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
PHA0150
|
70 MHz 1500 V Differential Voltage Probe |
$799
|
|
|
PHA1150
|
100 MHz 1500 V Differential Voltage Probe |
$999
|
|
|
|
PHA2150
|
200 MHz 1500 V Differential Voltage Probe
|
$1,590
|
|
|
RP1100D
|
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp |
$788
|
|
|
RP1025D
|
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp |
$473
|
|
Current Probe Power
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RP1000P
|
RP1003C/RP1004C/RP1005C probe power supply |
$1,560
|
|
|
High Voltage Probe
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RP1010H
|
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation |
$524
|
|
|
|
RP1018H
|
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation |
$1,038
|
|
|
RP1300H
|
100:1 300 MHz TO 2KV PASSIVE PROBE |
$243
|
|
