DNA5000
The DNA5000 Vector Network Analyzer empowers you to precisely capture S-parameters, assessing your device's full transmission and reflection profile. Effortlessly tackle impedance matching with intuitive Smith charts and polar plots and rapidly diagnose cable and antenna issues using the powerful Distance-to-Fault (DTF) function. Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.
Explore the DNA5000 Vector Network Analyzer

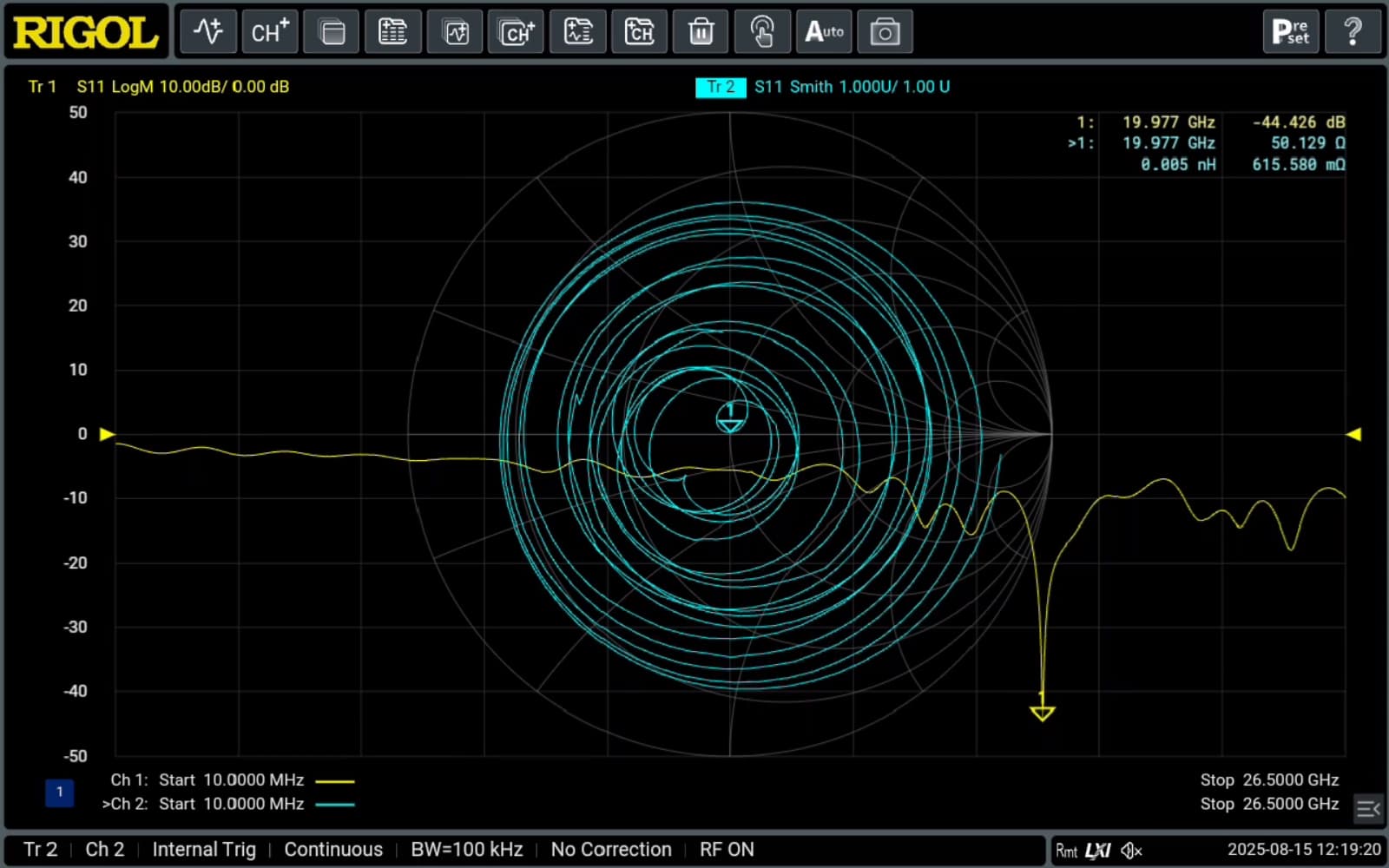

Broad Frequency Range for Diverse Applications
Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.

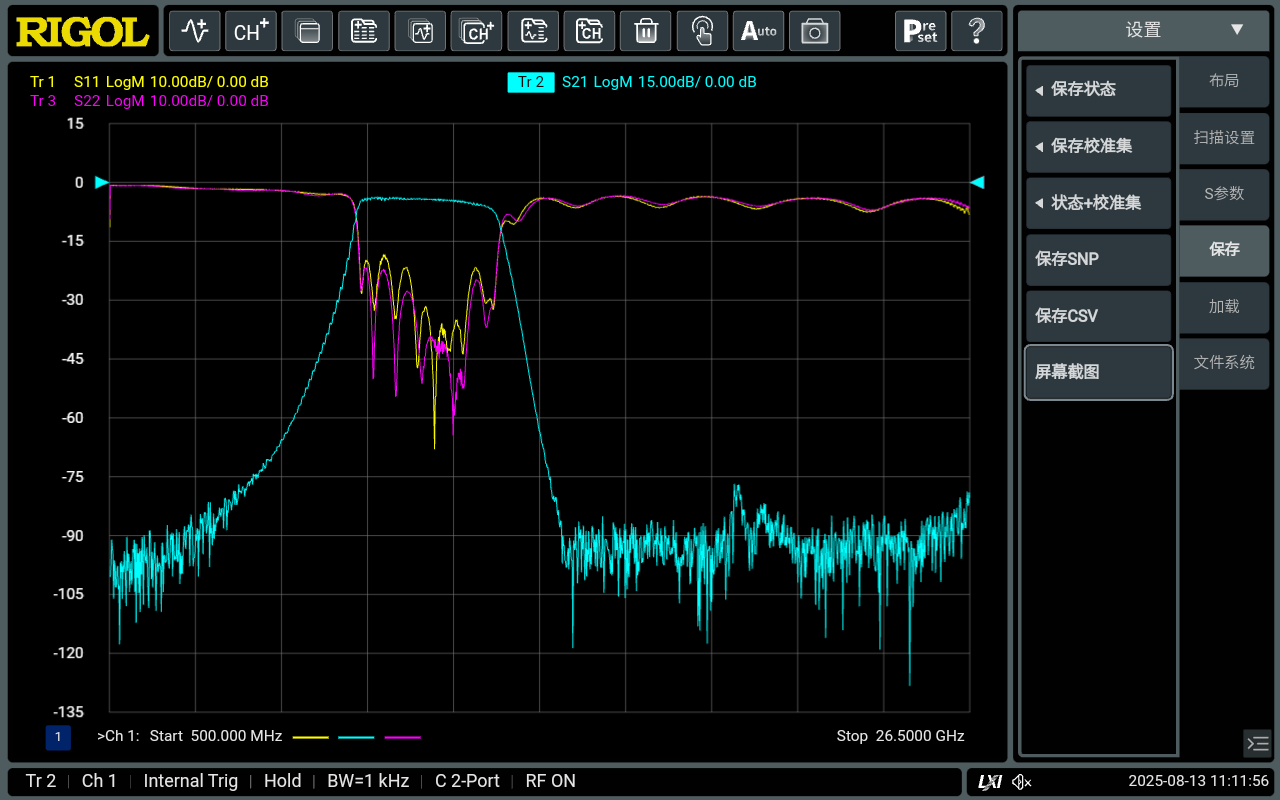

Superior Performance & Stability
Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.

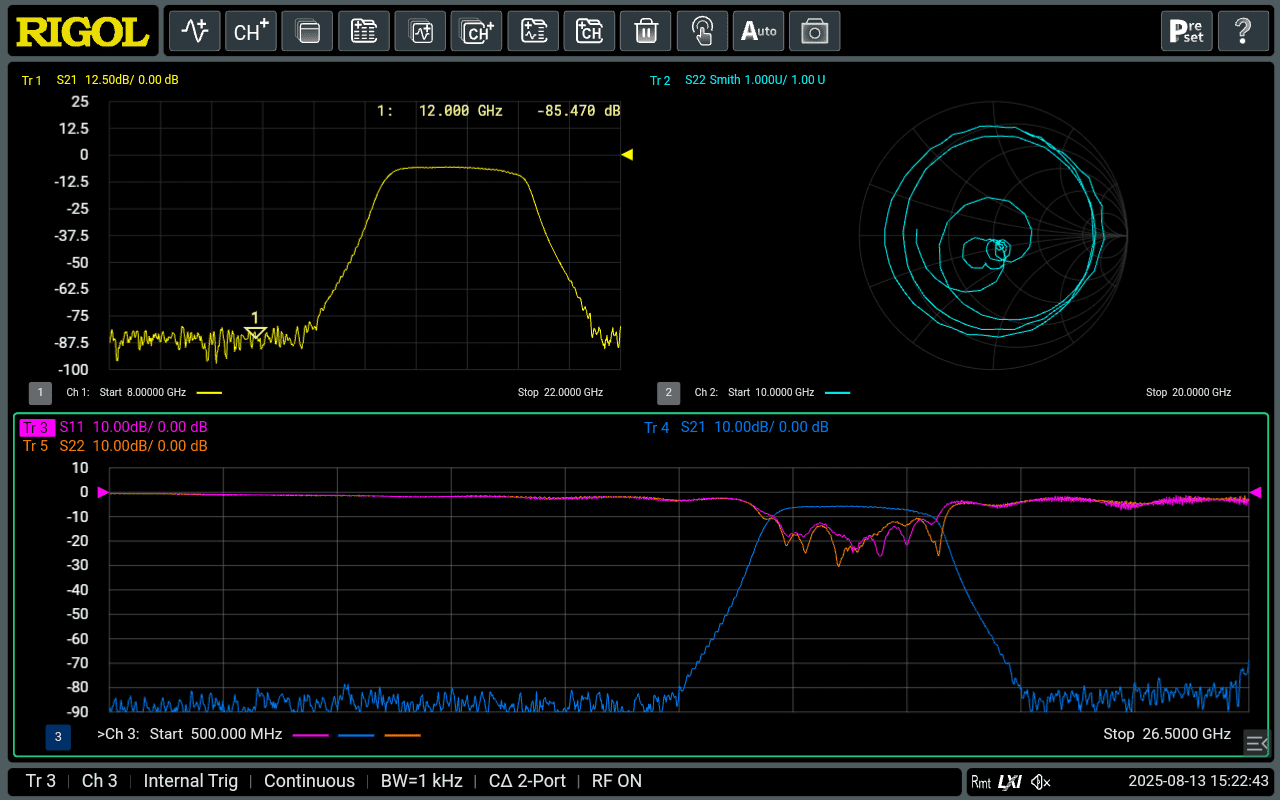

Advanced Analysis Tools Built-In
Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDRu2014perfect for both the lab and the production floor.

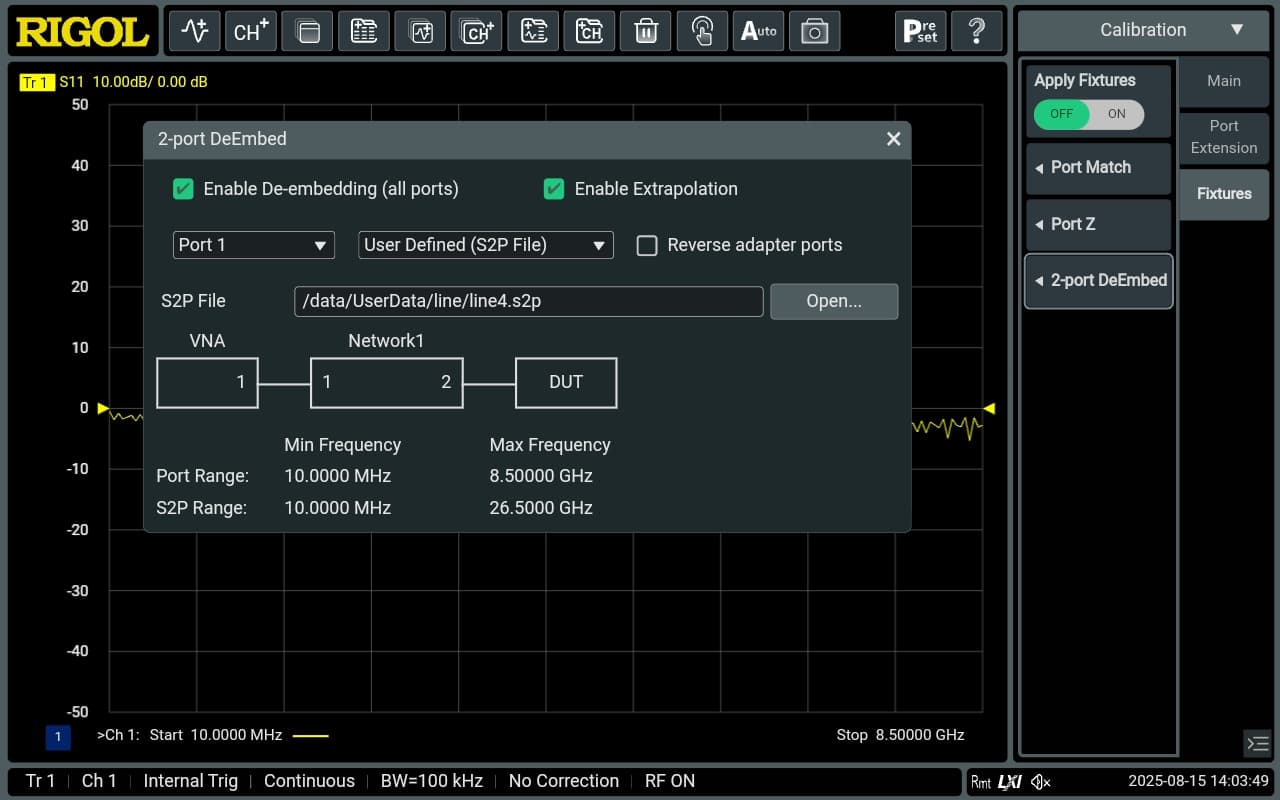

True Device Performance via De-embedding
See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.

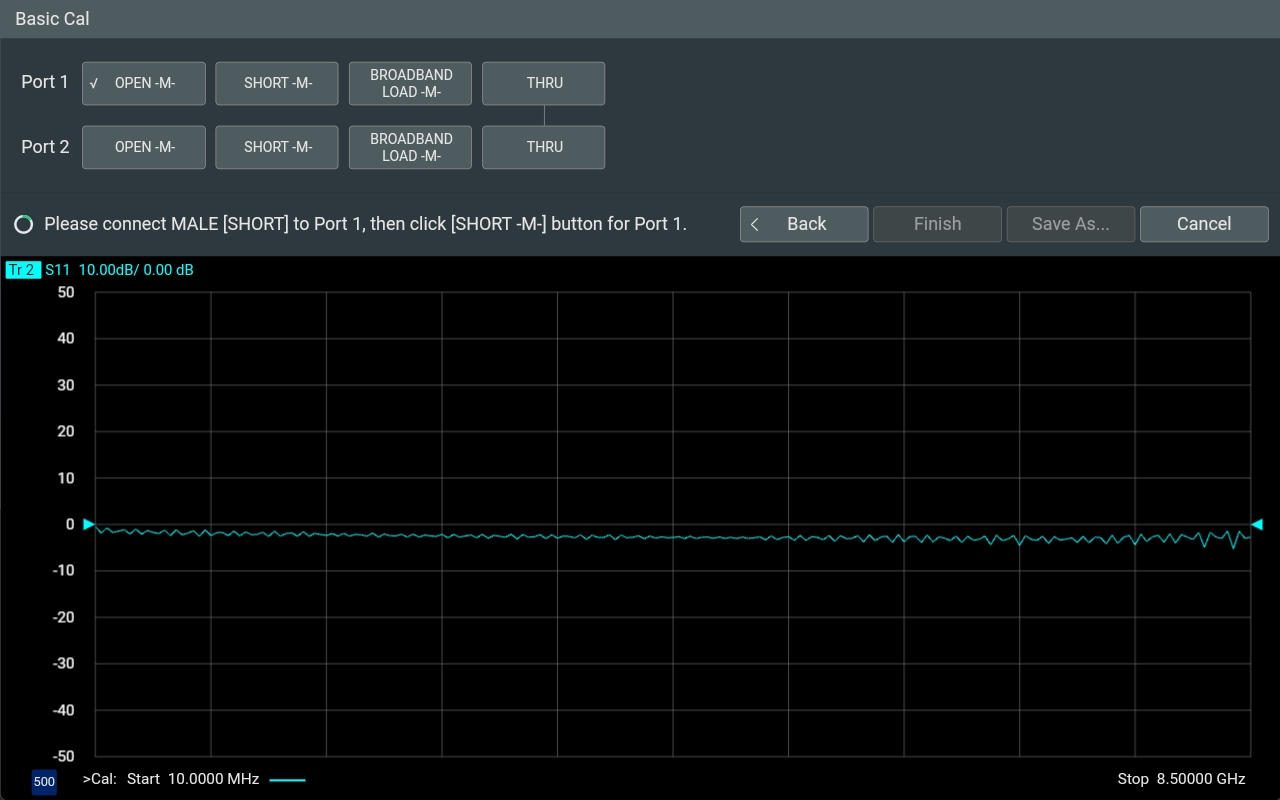

Intuitive Calibration
No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.

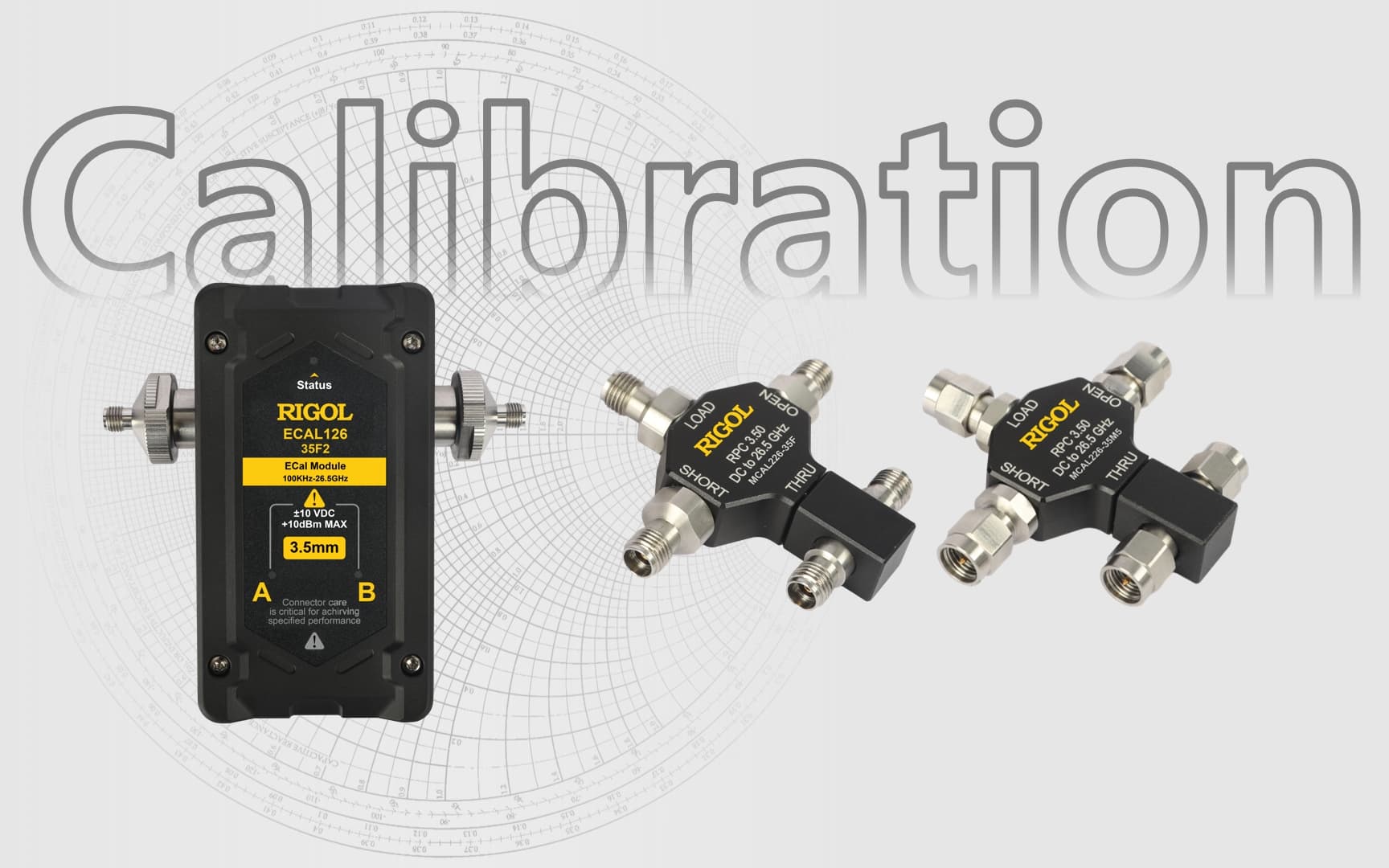

Mechanical or Electronic Calibration
Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.

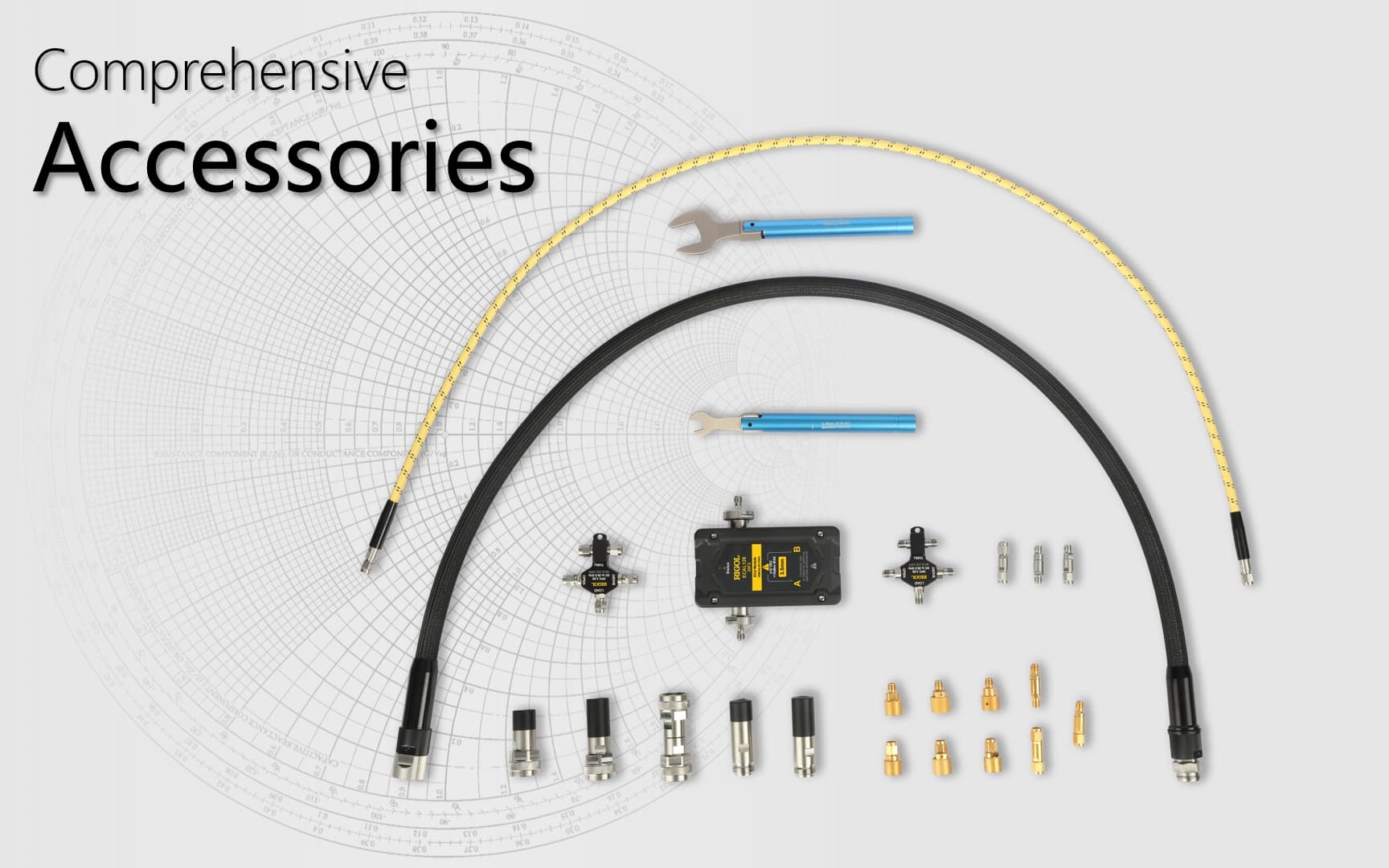

Complete Accessory Support
Get up and running faster with our comprehensive ecosystem of accessoriesu2014your one-stop shop for reliable testing.

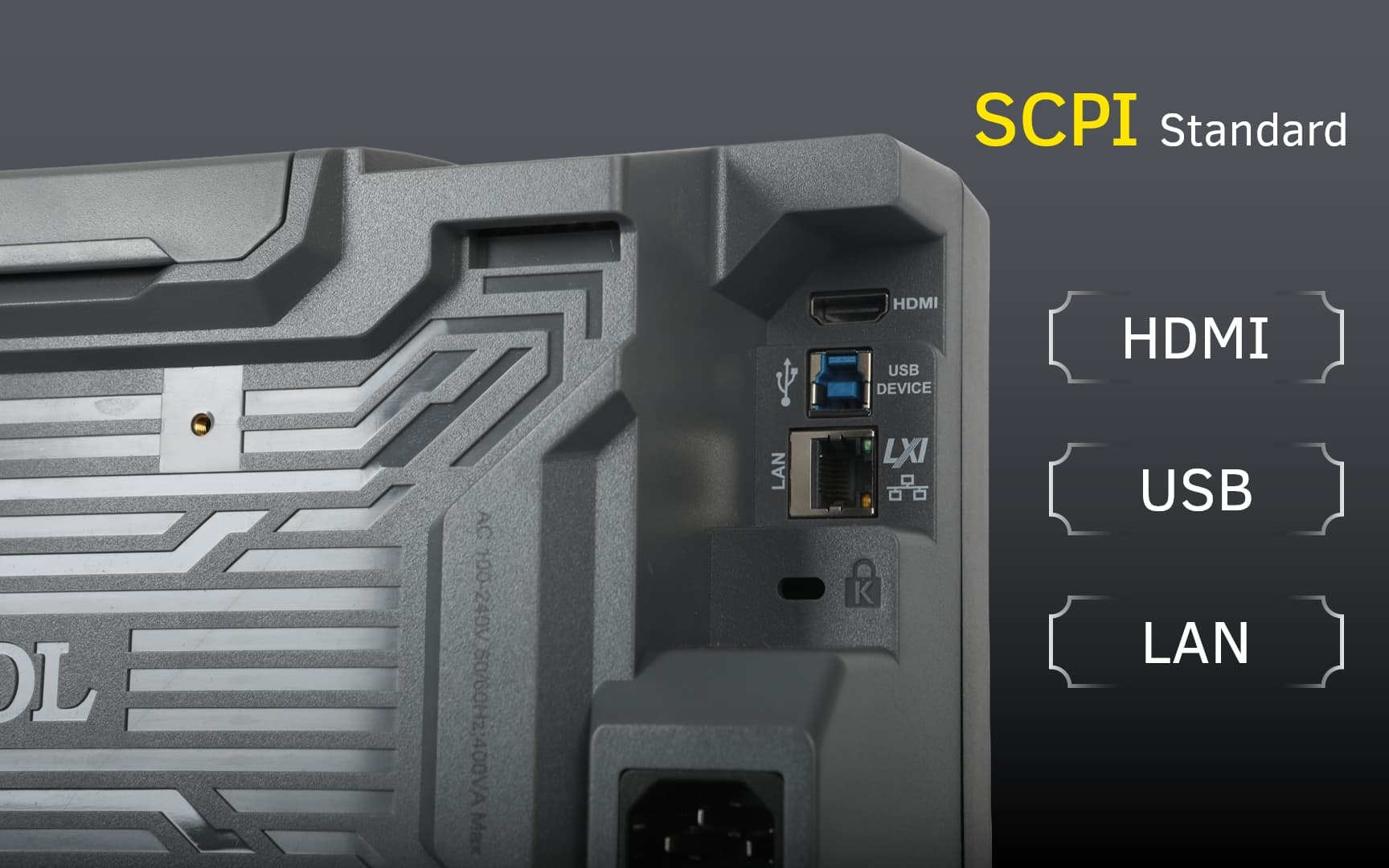

Drop-In Compatibility
Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.
DNA5000
Model |
Ports |
Frequency Range |
High Dynamic Range |
Max. Output Power |
Price |
|
|---|---|---|---|---|---|---|
| DNA5042 | 2 | 5 kHz ~ 4.5 GHz | 127 dB (typ.) | 10 dBm | $6,499 |
|
| DNA5082 | 2 | 5 kHz ~ 8.5 GHz | 127 dB (typ.) | 10 dBm | $10,799 |
|
| DNA5142 | 2 | 5 kHz ~ 14 GHz | 127 dB (typ.) | 10 dBm | $14,299 |
|
| DNA5202 | 2 | 5 kHz ~ 20 GHz | 127 dB (typ.) | 10 dBm | $20,899 |
|
| DNA5262 | 2 | 5 kHz ~ 26.5 GHz | 127 dB (typ.) | 10 dBm | $25,699 |
|
DNA5000 Series Performance Verification
|
|
DNA5000 Series Quick Guide
|
|
DNA5000 Series User Guide
|
|
ECal Module Manual
|
|
Mechanical Calibration Kits Manual
|
|
RF Cable/Adapter/Torque Wrench Manual
|
|
DNA5000 Series Data Sheet
|
Adapters and Connectors
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
AD-3.5F-2.92M-L-26G
|
Adapter, 3.5mm (f) - 2.92 (m), DC ~ 26.5GHz |
$109
|
|
|
|
AD-3.5F-3.5F-L-26G
|
Adapter, 3.5mm (f) - 3.5mm (f), DC ~ 26.5GHz |
$79
|
|
|
|
AD-3.5M-2.92F-L-26G
|
Adapter, 3.5mm (m) - 2.92 (f), DC ~ 26.5GHz |
$109
|
|
|
|
AD-3.5M-3.5M-L-26G
|
Adapter, 3.5mm (m) - 3.5mm (m), DC ~ 26.5GHz |
$79
|
|
|
|
AD-NF-NF-L-18G
|
Adapter, N (f) - N (f), DC ~ 18GHz |
$39
|
|
|
|
AD-NM-BNCF-L-4G
|
Adapter, N (m) - BNC (f), DC ~ 4GHz |
$79
|
|
|
|
AD-NM-NM-L-18G
|
Adapter, N (m) - N(m), DC ~ 18GHz |
$69
|
|
|
|
AD-SMAF-BNCM-L-4G
|
Adapter, SMA (f) - BNC (m), DC ~ 4GHz |
$79
|
|
|
|
AD-SMAF-NM-L-18G
|
Adapter, SMA (f) - N (m), DC ~ 18GHz |
$59
|
|
|
|
AD-SMAF-SMAF-L-18G
|
Adapter, SMA (f) - SMA (f), DC ~ 18GHz |
$59
|
|
|
|
AD-SMAM-NM-L-18G
|
Adapter, SMA (m) - N (m), DC ~ 18GHz |
$59
|
|
|
|
AD-SMAM-SMAM-L-18G
|
Adapter, SMA (m) - SMA (m), DC ~ 18GHz |
$49
|
|
|
Cable
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
CB-3.5M-3.5M-100-L-26G
|
RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (m), 100 cm |
$409
|
|
|
|
CB-NM-3.5M-100-L-18G
|
RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (m), 100 cm |
$369
|
|
|
|
CB-NM-NM-100-L-18G
|
RF Cable, DC ~ 18 GHz, N (m) - N (m), 100 cm |
$369
|
|
|
|
CB-NM-SMAM-100-L-18G
|
RF Cable, DC ~ 18 GHz, N (m) - SMA (m), 100 cm |
$369
|
|
|
|
CB-NMD3.5F-3.5F-63-L-26G
|
VNA RF Cable, DC ~ 26.5 GHz, NMD 3.5mm (f) - 3.5mm (f), 63.5 cm |
$1,099
|
|
|
|
CB-SMAM-SMAM-100-L-18G
|
RF Cable, DC ~ 18 GHz, SMA (m) - SMA (m), 100 cm |
$369
|
|
|
ECAL
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
ECAL109-NF2
|
Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports |
$3,799
|
|
|
|
ECAL114-NF2
|
Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports |
$4,299
|
|
|
|
ECAL126-35F2
|
Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 2 ports |
$5,799
|
|
|
MCAL
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
MCAL104-NF1
|
Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (f), 50 Ω |
$499
|
|
|
|
MCAL104-NM1
|
Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (m), 50 Ω |
$499
|
|
|
|
MCAL104-SF1
|
Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (f) |
$599
|
|
|
|
MCAL104-SM1
|
Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (m) |
$599
|
|
|
|
MCAL109-NF1
|
Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (f), 50 Ω |
$1,599
|
|
|
|
MCAL109-NK1
|
Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m & f), 50 Ω |
$2,999
|
|
|
|
MCAL109-NM1
|
Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m), 50 Ω |
$1,599
|
|
|
|
MCAL109-SF1
|
Mechanical Calibration Kit, DC ~ 9 GHz, SMA (f) |
$1,899
|
|
|
|
MCAL109-SK1
|
Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m & f) |
$3,199
|
|
|
|
MCAL109-SM1
|
Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m) |
$1,899
|
|
|
|
MCAL126-35K1
|
Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (m & f) |
$4,799
|
|
|
|
MCAL226-35F5
|
4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f) |
$3,799
|
|
|
General Optional Accessory
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
TW12-19
|
Torque Wrench, 12 in-lb, 19.1 mm-open end, for N-type connectors |
$239
|
|
|
|
TW8-8
|
Torque Wrench, 8 in-lb, 8.1 mm-open end, for SMA 3.5mm connectors |
$239
|
|
|
