DNA6000 Series   |  VECTOR NETWORK ANALYZERS

DNA6000

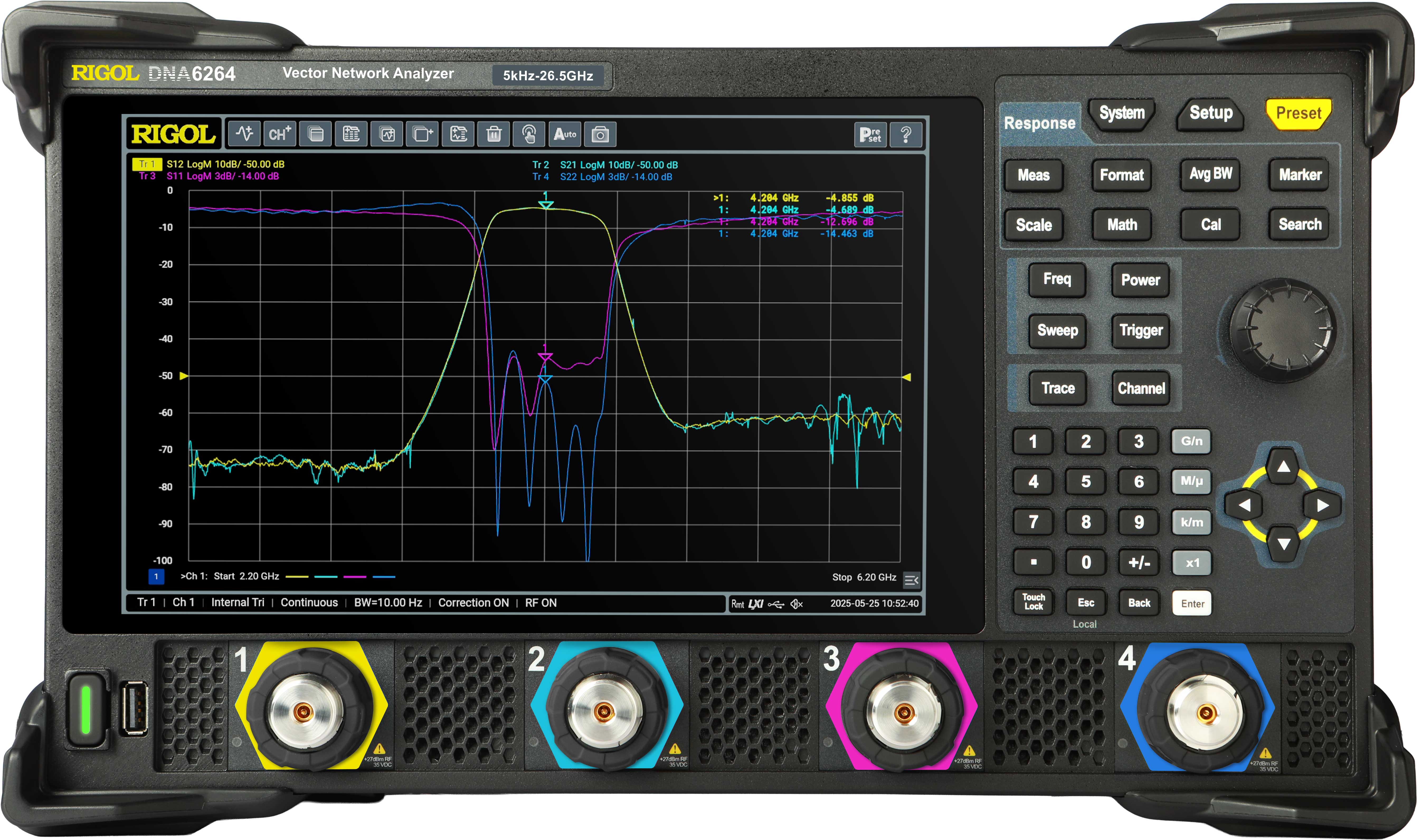

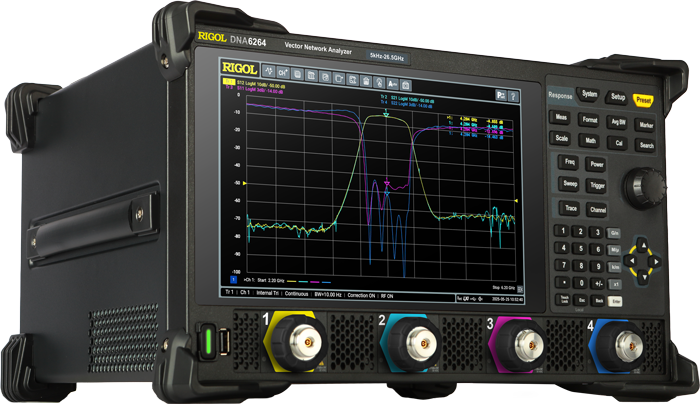

The DNA6000 Vector Network Analyzer is the ideal choice for your lab and production line. Its solid benchtop form factor provides stable and reliable measurements, making it perfect for long-duration and repetitive testing tasks. Whether you're debugging devices in R&D or performing quality control on the production line, it accurately characterizes the performance of components like filters, amplifiers, and cables. Ample connectivity options also simplify connections and automated testing, making it a dependable partner in your daily workflow.
DNA6000 Series Data Sheet
Product Feature Customer Benefit
Broad Frequency Range for Diverse Applications Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.
Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.

Superior Performance & Stability Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.
Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.

Advanced Analysis Tools Built-In Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.
Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.

True Device Performance via De-embedding See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.
See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.

Intuitive Calibration No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.
No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.

Mechanical or Electronic Calibration Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.
Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.

Complete Accessory Support Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.
Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.

Drop-In Compatibility Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.
Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.

Product View

DNA6000
Whitepapers
Purchasing Info
Buy Now Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (877) 474-4651

Read about our 3 Year Warranty
Product Info
 DNA6000 Series Data Sheet   Firmware

Specs

Please scroll to the sides when using small displays
Model PortsFrequency RangeHigh Dynamic RangeMax. Output Power Price
DNA6084 4 5 kHz ~ 8.5 GHz127 dB (typ.)10 dBm $20,899
DNA6142 2 5 kHz ~ 14 GHz127 dB (typ.)10 dBm $19,299
DNA6144 4 5 kHz ~ 14 GHz127 dB (typ.)10 dBm $28,899
DNA6202 2 5 kHz ~ 20 GHz127 dB (typ.)10 dBm $25,699
DNA6204 4 5 kHz ~ 20 GHz127 dB (typ.)10 dBm $38,499
DNA6262 2 5 kHz ~ 26.5 GHz127 dB (typ.)10 dBm $32,099
DNA6264 4 5 kHz ~ 26.5 GHz127 dB (typ.)10 dBm $47,999
 Compare Product Families

App Notes

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

icon DNA6000_Firmware_Update_v00.01.00.00.47
Please scroll to the sides when using small displays

VNA General Optional Accessory

DNA-DTF10

Distance to Fault

$999

VNA General Optional Accessory

DNA-TDA10

Time Domain Analysis

$1,599

Please scroll to the sides when using small displays

Adapters and Connectors

AD-3.5F-2.92M-L-26G

Adapter, 3.5mm (f) - 2.92 (m), DC ~ 26.5GHz

$109

Adapters and Connectors

AD-3.5F-3.5F-L-26G

Adapter, 3.5mm (f) - 3.5mm (f), DC ~ 26.5GHz

$79

Adapters and Connectors

AD-3.5M-2.92F-L-26G

Adapter, 3.5mm (m) - 2.92 (f), DC ~ 26.5GHz

$109

Adapters and Connectors

AD-3.5M-3.5M-L-26G

Adapter, 3.5mm (m) - 3.5mm (m), DC ~ 26.5GHz

$79

Adapters and Connectors

AD-NF-NF-L-18G

Adapter, N (f) - N (f), DC ~ 18GHz

$39

Adapters and Connectors

AD-NM-BNCF-L-4G

Adapter, N (m) - BNC (f), DC ~ 4GHz

$79

Adapters and Connectors

AD-NM-NM-L-18G

Adapter, N (m) - N(m), DC ~ 18GHz

$69

Adapters and Connectors

AD-SMAF-BNCM-L-4G

Adapter, SMA (f) - BNC (m), DC ~ 4GHz

$79

Adapters and Connectors

AD-SMAF-NM-L-18G

Adapter, SMA (f) - N (m), DC ~ 18GHz

$59

Adapters and Connectors

AD-SMAF-SMAF-L-18G

Adapter, SMA (f) - SMA (f), DC ~ 18GHz

$59

Adapters and Connectors

AD-SMAM-NM-L-18G

Adapter, SMA (m) - N (m), DC ~ 18GHz

$59

Adapters and Connectors

AD-SMAM-SMAM-L-18G

Adapter, SMA (m) - SMA (m), DC ~ 18GHz

$49

Cable

CB-3.5M-3.5M-100-L-26G

RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (m), 100 cm

$409

Cable

CB-NM-3.5M-100-L-18G

RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (m), 100 cm

$369

Cable

CB-NM-NM-100-L-18G

RF Cable, DC ~ 18 GHz, N (m) - N (m), 100 cm

$369

Cable

CB-NM-SMAM-100-L-18G

RF Cable, DC ~ 18 GHz, N (m) - SMA (m), 100 cm

$369

Cable

CB-NMD3.5F-3.5F-63-L-26G

VNA RF Cable, DC ~ 26.5 GHz, NMD 3.5mm (f) - 3.5mm (f), 63.5 cm

$1,099

Cable

CB-SMAM-SMAM-100-L-18G

RF Cable, DC ~ 18 GHz, SMA (m) - SMA (m), 100 cm

$369

ECAL

ECAL109-NF2

Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports

$3,799

ECAL

ECAL114-NF2

Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports

$4,299

ECAL

ECAL126-35F2

Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 2 ports

$5,799

MCAL

MCAL104-NF1

Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (f), 50 Ω

$499

MCAL

MCAL104-NM1

Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (m), 50 Ω

$499

MCAL

MCAL104-SF1

Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (f)

$599

MCAL

MCAL104-SM1

Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (m)

$599

MCAL

MCAL109-NF1

Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (f), 50 Ω

$1,599

MCAL

MCAL109-NK1

Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m & f), 50 Ω

$2,999

MCAL

MCAL109-NM1

Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m), 50 Ω

$1,599

MCAL

MCAL109-SF1

Mechanical Calibration Kit, DC ~ 9 GHz, SMA (f)

$1,899

MCAL

MCAL109-SK1

Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m & f)

$3,199

MCAL

MCAL109-SM1

Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m)

$1,899

MCAL

MCAL126-35K1

Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (m & f)

$4,799

MCAL

MCAL226-35F5

4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f)

$3,799

General Optional Accessory

TW12-19

Torque Wrench, 12 in-lb, 19.1 mm-open end, for N-type connectors

$239

General Optional Accessory

TW8-8

Torque Wrench, 8 in-lb, 8.1 mm-open end, for SMA 3.5mm connectors

$239

Method:LooKup
