The DNA6000 Vector Network Analyzer is the ideal choice for your lab and production line. Its solid benchtop form factor provides stable and reliable measurements, making it perfect for long-duration and repetitive testing tasks. Whether you're debugging devices in R&D or performing quality control on the production line, it accurately characterizes the performance of components like filters, amplifiers, and cables. Ample connectivity options also simplify connections and automated testing, making it a dependable partner in your daily workflow.
Explore the DNA6000 Series Vector Network Analyzer
Broad Frequency Range for Diverse Applications

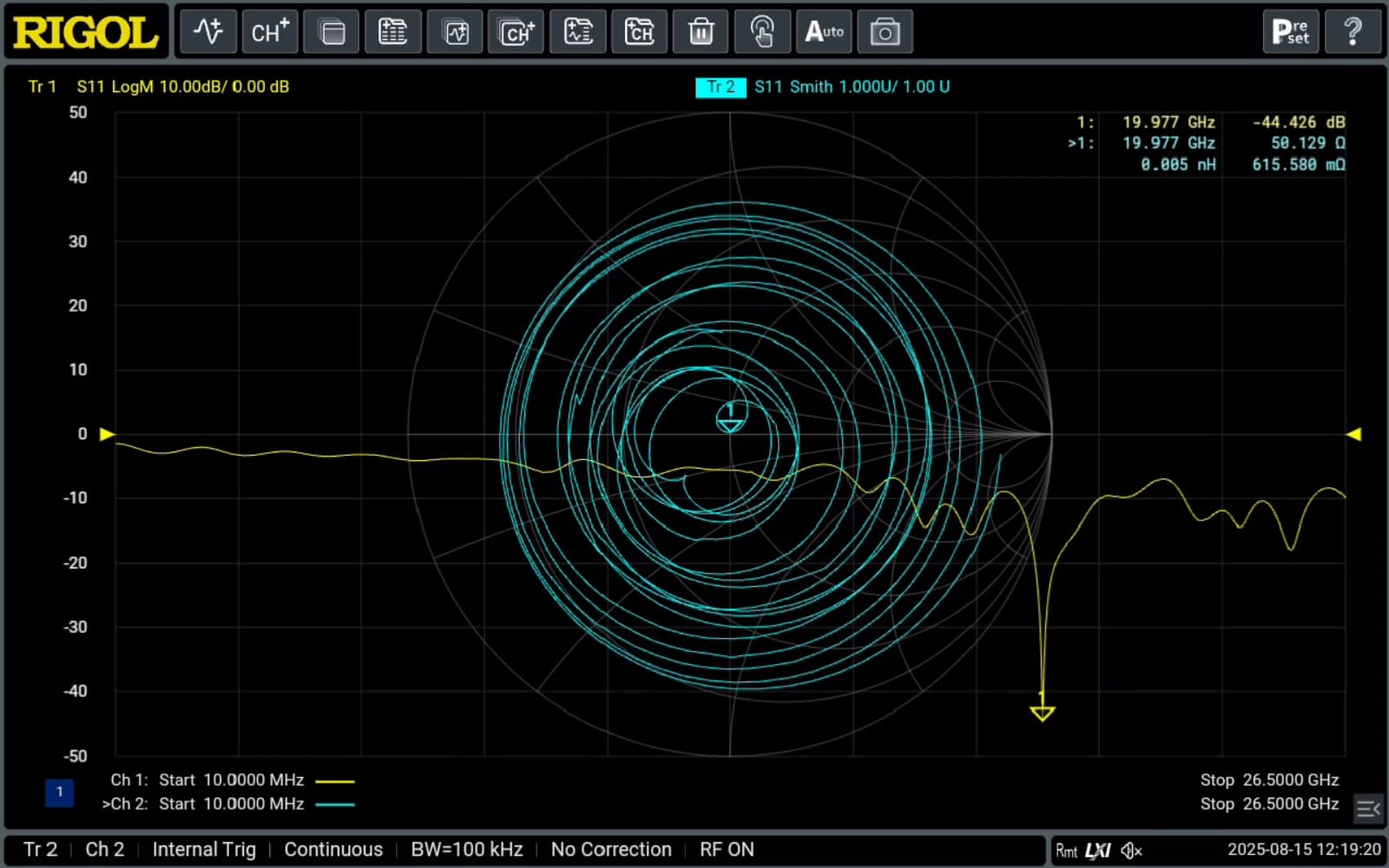

Delivering a frequency range from 5 kHz to 26.5 GHz with 4 or 2 test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.
Superior Performance & Stability

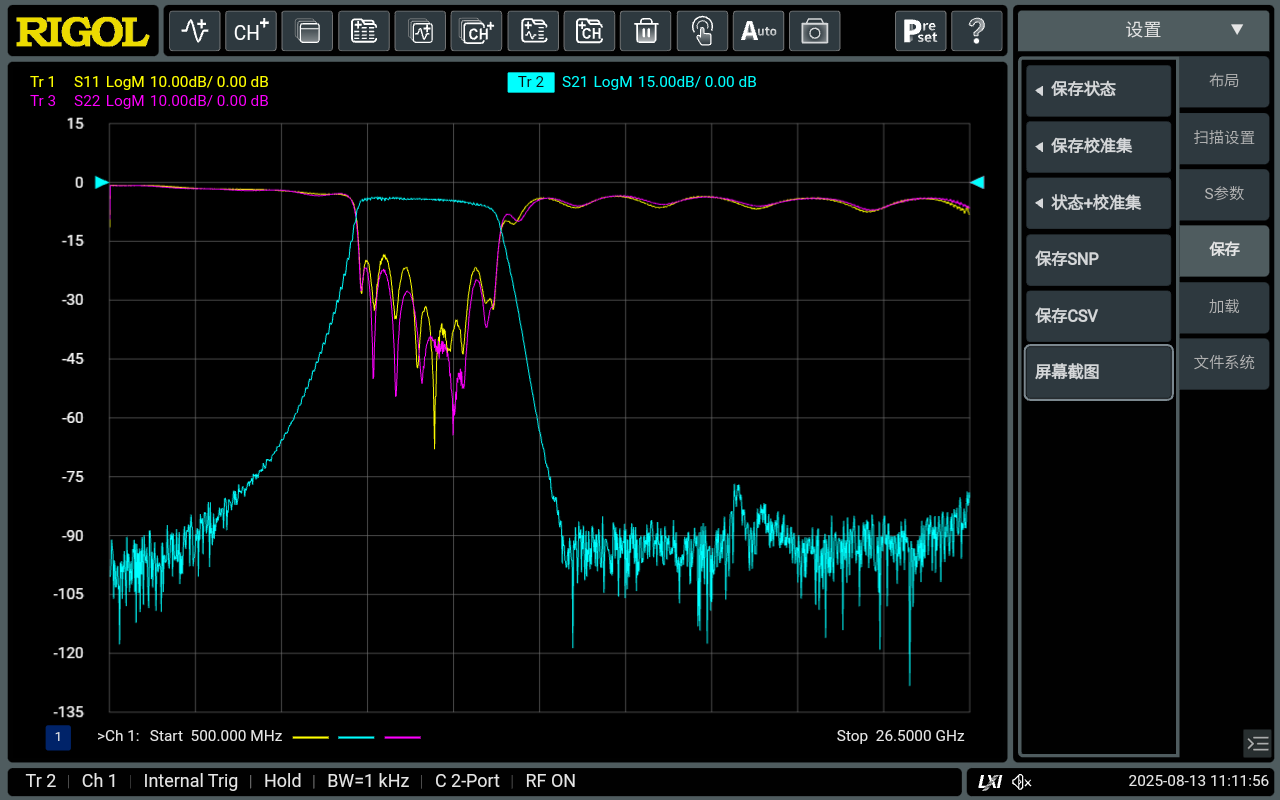

Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.
Advanced Analysis Tools Built-In

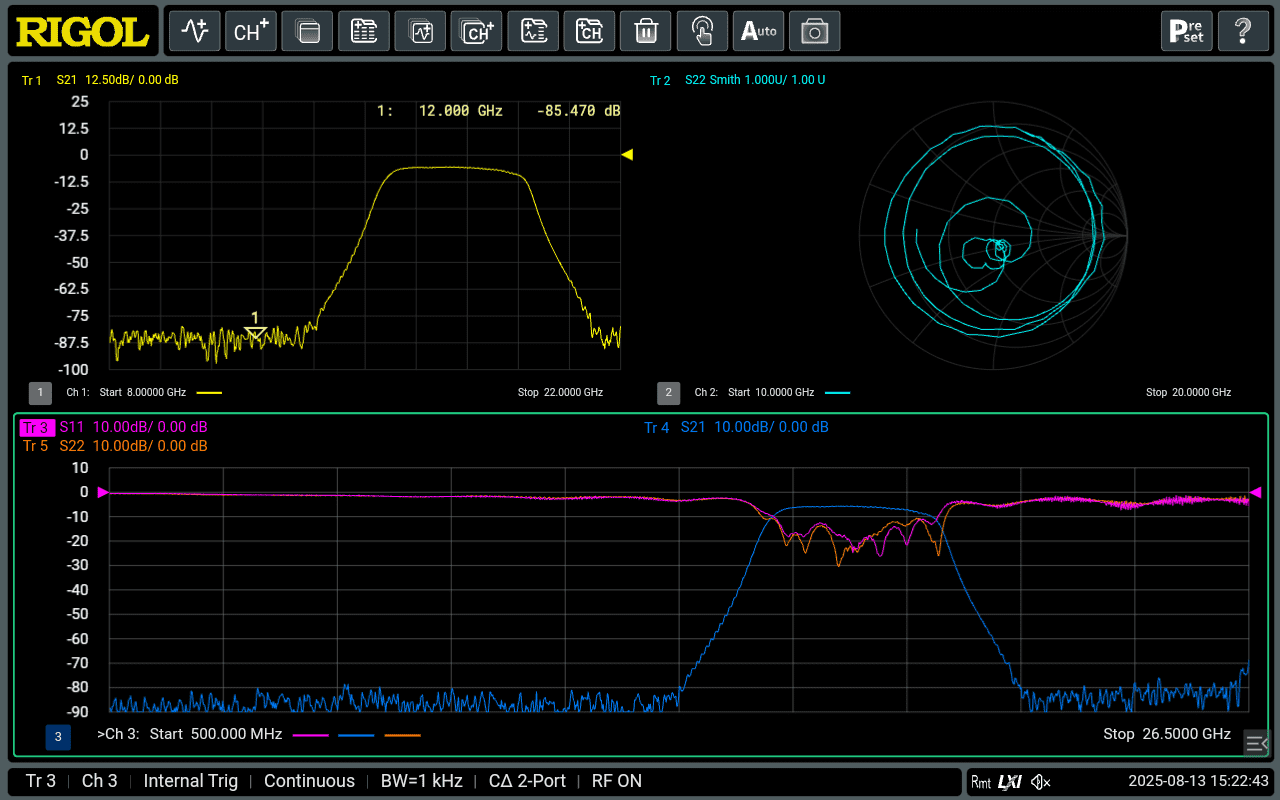

Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDRu2014perfect for both the lab and the production floor.
True Device Performance via De-embedding

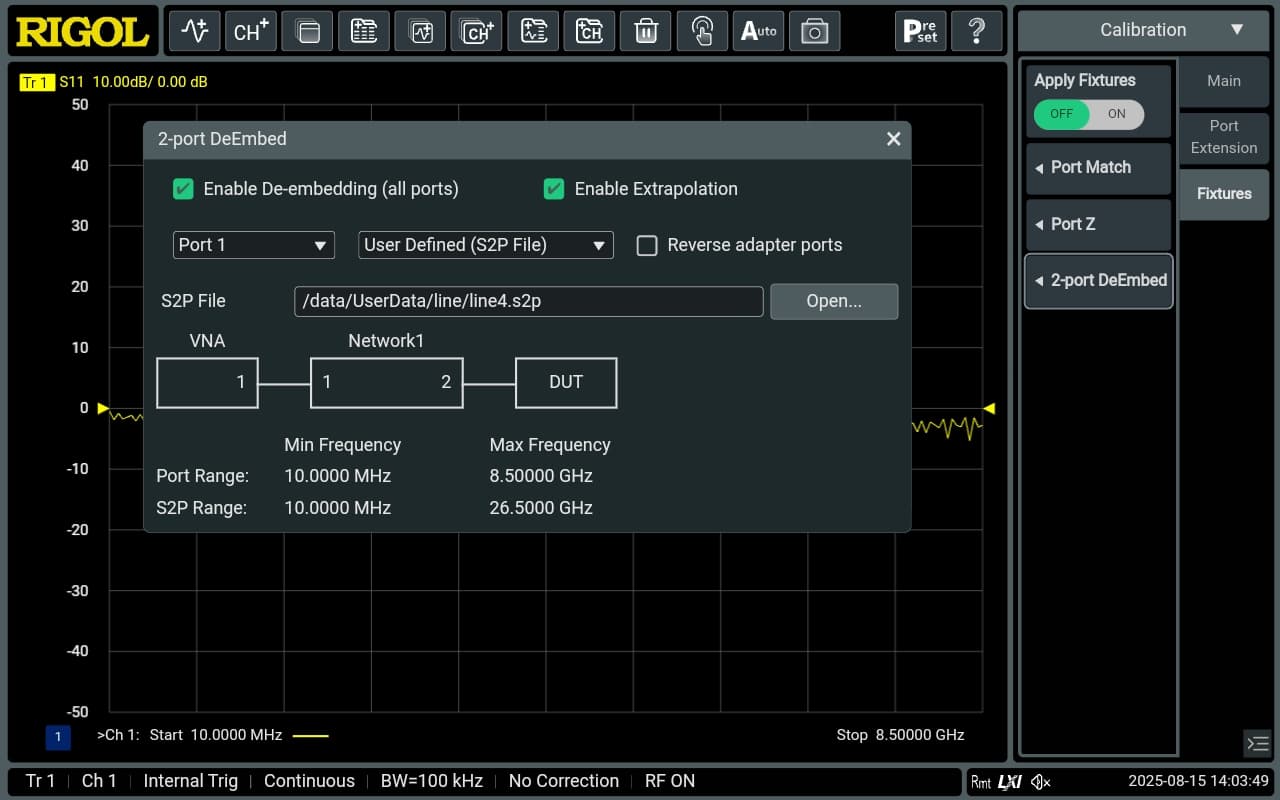

See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.
Intuitive Calibration

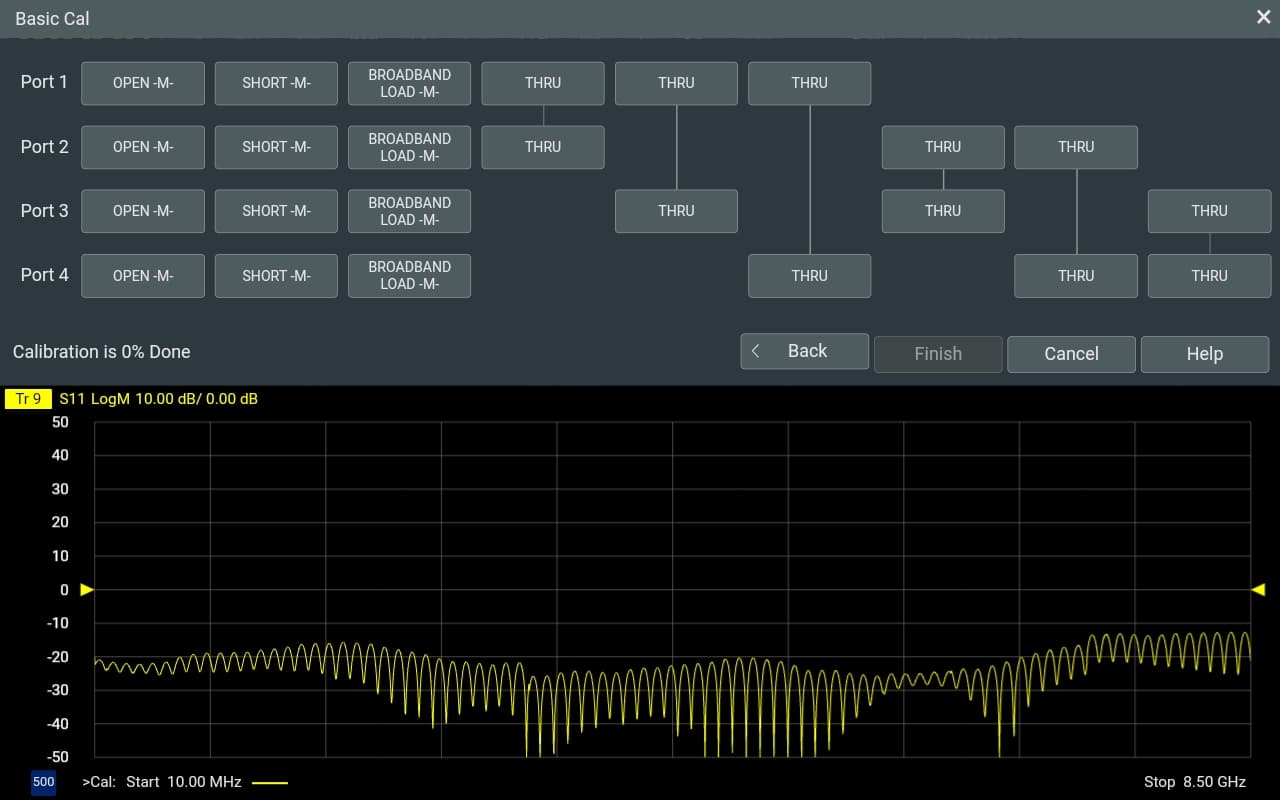

No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.
Mechanical or Electronic Calibration

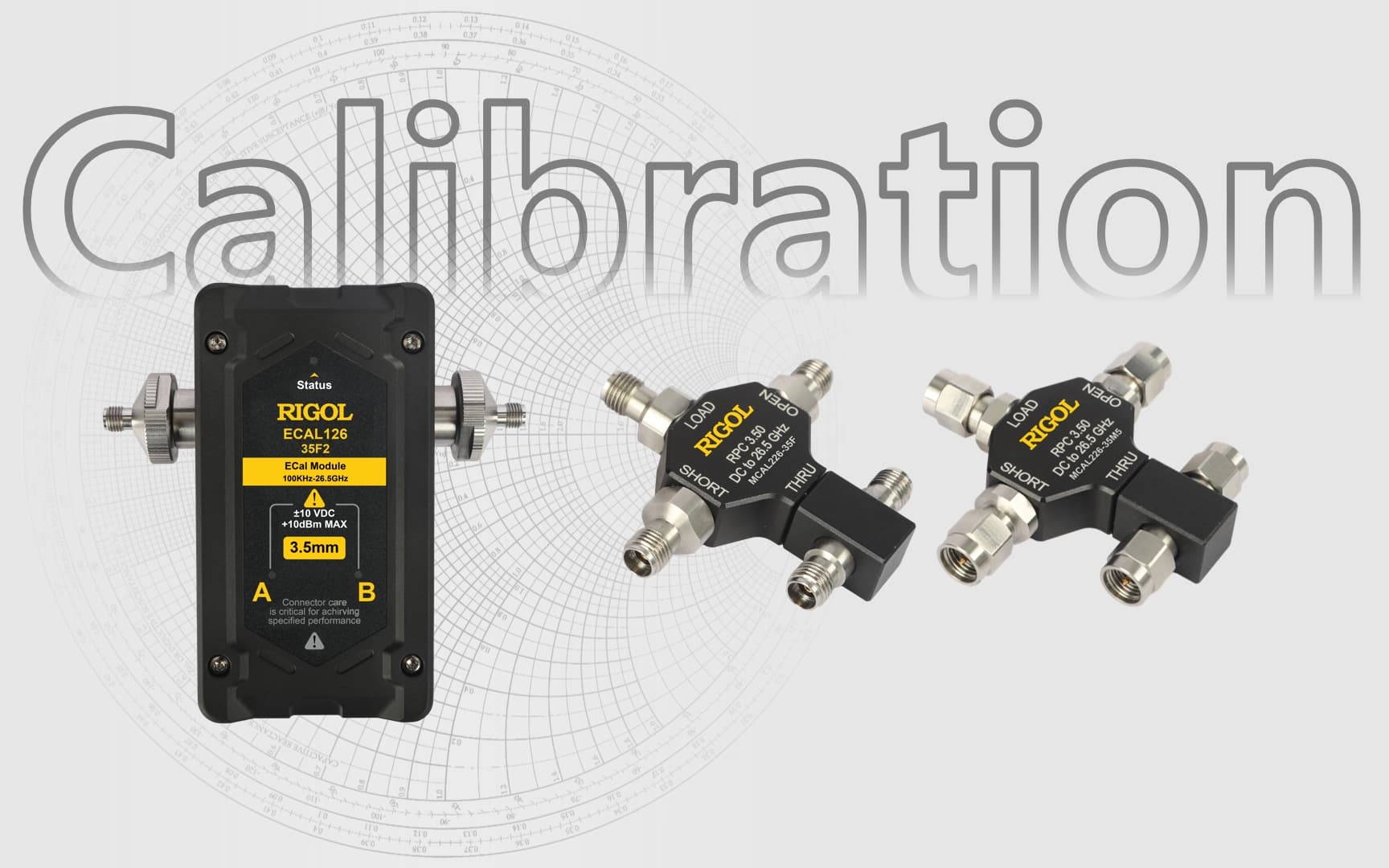

Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.
Complete Accessory Support

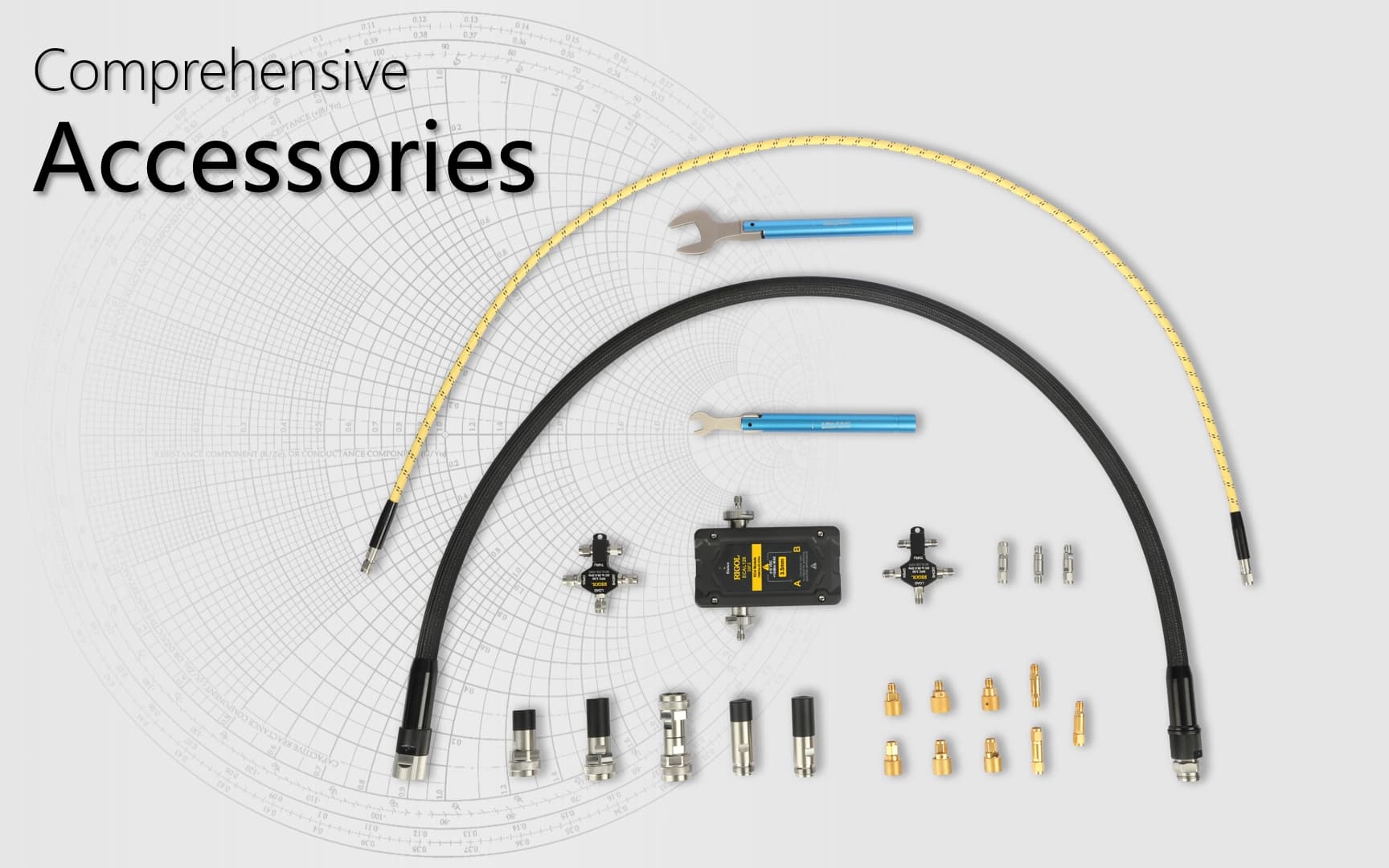

Get up and running faster with our comprehensive ecosystem of accessoriesu2014your one-stop shop for reliable testing.
Drop-In Compatibility

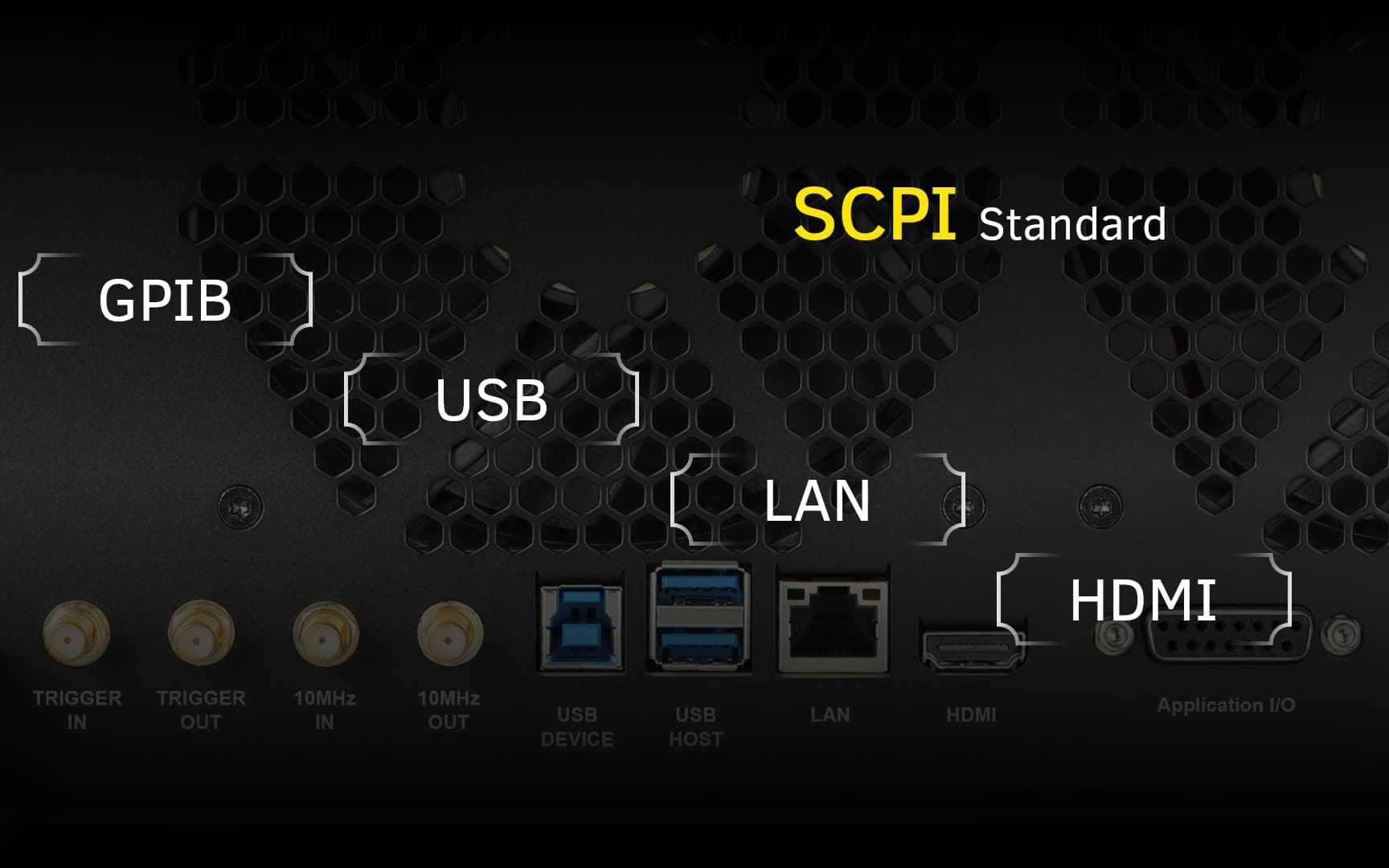

Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.
DNA6000
Model |
Ports |
Frequency Range |
High Dynamic Range |
Max. Output Power |
Price |
|
|---|---|---|---|---|---|---|
| DNA6082 | 2 | 5 kHz ~ 8.5 GHz | 127 dB (typ.) | 10 dBm | $12,899 |
|
| DNA6084 | 4 | 5 kHz ~ 8.5 GHz | 127 dB (typ.) | 10 dBm | $20,899 |
|
| DNA6142 | 2 | 5 kHz ~ 14 GHz | 127 dB (typ.) | 10 dBm | $19,299 |
|
| DNA6144 | 4 | 5 kHz ~ 14 GHz | 127 dB (typ.) | 10 dBm | $28,899 |
|
| DNA6202 | 2 | 5 kHz ~ 20 GHz | 127 dB (typ.) | 10 dBm | $25,699 |
|
| DNA6204 | 4 | 5 kHz ~ 20 GHz | 127 dB (typ.) | 10 dBm | $38,499 |
|
| DNA6262 | 2 | 5 kHz ~ 26.5 GHz | 127 dB (typ.) | 10 dBm | $32,099 |
|
| DNA6264 | 4 | 5 kHz ~ 26.5 GHz | 127 dB (typ.) | 10 dBm | $47,999 |
|
DNA6000 Series Performance Verification
|
|
DNA6000 Series Quick Guide
|
|
DNA6000 Series User Guide
|
|
ECal Module Manual
|
|
Mechanical Calibration Kits Manual
|
|
RF Cable/Adapter/Torque Wrench Manual
|
|
DNA6000 Series Data Sheet
|
Adapters and Connectors
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
AD-3.5F-2.92M-L-26G
|
Adapter, 3.5mm (f) - 2.92 (m), DC ~ 26.5GHz |
$109
|
|
|
|
AD-3.5F-3.5F-L-26G
|
Adapter, 3.5mm (f) - 3.5mm (f), DC ~ 26.5GHz |
$79
|
|
|
|
AD-3.5M-2.92F-L-26G
|
Adapter, 3.5mm (m) - 2.92 (f), DC ~ 26.5GHz |
$109
|
|
|
|
AD-3.5M-3.5M-L-26G
|
Adapter, 3.5mm (m) - 3.5mm (m), DC ~ 26.5GHz |
$79
|
|
|
|
AD-NF-NF-L-18G
|
Adapter, N (f) - N (f), DC ~ 18GHz |
$39
|
|
|
|
AD-NM-BNCF-L-4G
|
Adapter, N (m) - BNC (f), DC ~ 4GHz |
$79
|
|
|
|
AD-NM-NM-L-18G
|
Adapter, N (m) - N(m), DC ~ 18GHz |
$69
|
|
|
|
AD-SMAF-BNCM-L-4G
|
Adapter, SMA (f) - BNC (m), DC ~ 4GHz |
$79
|
|
|
|
AD-SMAF-NM-L-18G
|
Adapter, SMA (f) - N (m), DC ~ 18GHz |
$59
|
|
|
|
AD-SMAF-SMAF-L-18G
|
Adapter, SMA (f) - SMA (f), DC ~ 18GHz |
$59
|
|
|
|
AD-SMAM-NM-L-18G
|
Adapter, SMA (m) - N (m), DC ~ 18GHz |
$59
|
|
|
|
AD-SMAM-SMAM-L-18G
|
Adapter, SMA (m) - SMA (m), DC ~ 18GHz |
$49
|
|
|
Cable
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
CB-3.5M-3.5M-100-L-26G
|
RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (m), 100 cm |
$409
|
|
|
|
CB-NM-3.5M-100-L-18G
|
RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (m), 100 cm |
$369
|
|
|
|
CB-NM-NM-100-L-18G
|
RF Cable, DC ~ 18 GHz, N (m) - N (m), 100 cm |
$369
|
|
|
|
CB-NM-SMAM-100-L-18G
|
RF Cable, DC ~ 18 GHz, N (m) - SMA (m), 100 cm |
$369
|
|
|
|
CB-NMD3.5F-3.5F-63-L-26G
|
VNA RF Cable, DC ~ 26.5 GHz, NMD 3.5mm (f) - 3.5mm (f), 63.5 cm |
$1,099
|
|
|
|
CB-SMAM-SMAM-100-L-18G
|
RF Cable, DC ~ 18 GHz, SMA (m) - SMA (m), 100 cm |
$369
|
|
|
ECAL
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
ECAL109-NF2
|
Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports |
$3,799
|
|
|
|
ECAL114-NF2
|
Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports |
$4,299
|
|
|
|
ECAL126-35F2
|
Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 2 ports |
$5,799
|
|
|
MCAL
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
MCAL104-NF1
|
Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (f), 50 Ω |
$499
|
|
|
|
MCAL104-NM1
|
Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (m), 50 Ω |
$499
|
|
|
|
MCAL104-SF1
|
Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (f) |
$599
|
|
|
|
MCAL104-SM1
|
Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (m) |
$599
|
|
|
|
MCAL109-NF1
|
Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (f), 50 Ω |
$1,599
|
|
|
|
MCAL109-NK1
|
Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m & f), 50 Ω |
$2,999
|
|
|
|
MCAL109-NM1
|
Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m), 50 Ω |
$1,599
|
|
|
|
MCAL109-SF1
|
Mechanical Calibration Kit, DC ~ 9 GHz, SMA (f) |
$1,899
|
|
|
|
MCAL109-SK1
|
Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m & f) |
$3,199
|
|
|
|
MCAL109-SM1
|
Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m) |
$1,899
|
|
|
|
MCAL126-35K1
|
Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (m & f) |
$4,799
|
|
|
|
MCAL226-35F5
|
4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f) |
$3,799
|
|
|
General Optional Accessory
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
TW12-19
|
Torque Wrench, 12 in-lb, 19.1 mm-open end, for N-type connectors |
$239
|
|
|
|
TW8-8
|
Torque Wrench, 8 in-lb, 8.1 mm-open end, for SMA 3.5mm connectors |
$239
|
|
|
