DG4000
The DG4000 Series waveform generators are utilized in a wide range of applications because of the many functions combined into one instrument. With capabilities including Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, Analog/Digital Modulation source, and Counter the DG4000 series can handle a broad array of signal emulation applications from near DC up to 60 or even 200 MHz depending on model and function. The DG4000 utilizes Direct Digital Synthesizer (DDS) technology which delivers stable, precise, low distortion signals. The sleek, upright design features a high resolution 7" display screen, while the user-friendly interface design and panel layout improves efficiency.
Explore the DG4000 Series Function/Arbitrary Waveform Generator

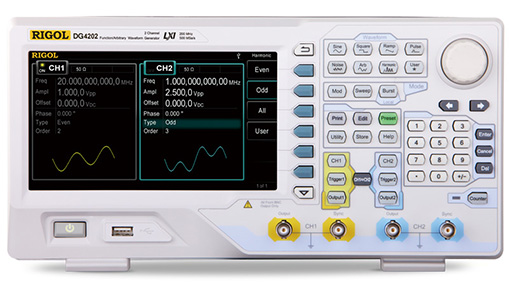

Wide Screen, Novel Appearance
The parameter setting value, waveform shape and output configuration of the channel are clearly displayed, so that the user can see the current output state of the instrument at a glance.

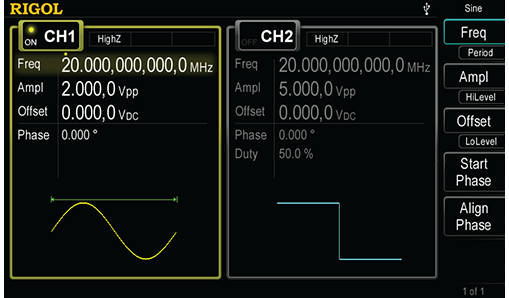

Dual Channels With Equal Performance And Precise Phase
The dual channel performance is the same, including basic wave, arbitrary wave, modulation wave, scanning, pulse series and other waveform output. Between channels, waveform or state can be copied, and frequency / amplitude / phase coupling can also be performed. The phase between channels can be adjusted accurately.

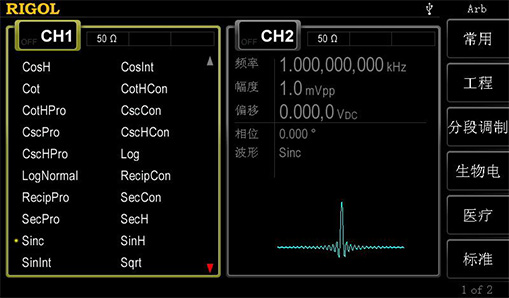

Built In 150 Arbitrary Waveforms
Various common waveforms in built-in teaching and circuit debugging are classified according to common, engineering, subsection modulation, bioelectricity, medical treatment, standard, mathematics, trigonometric function, anti trigonometric function and window function. Special user key is provided on the panel to quickly call out specified arbitrary waves.

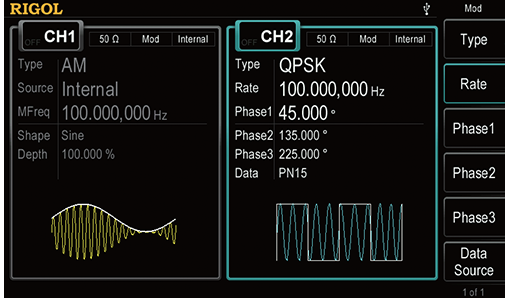

Rich Analog And Digital Modulation Functions
Modulation types include am, FM, PM, ask, FSK, 3fsk, 4FSK, PSK, BPSK, QPSK, PWM and OSK, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

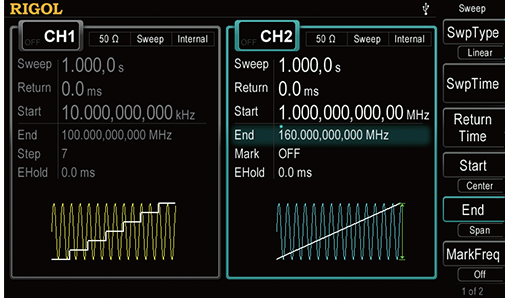

Multiple Sweep Modes
DG4000 supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications.

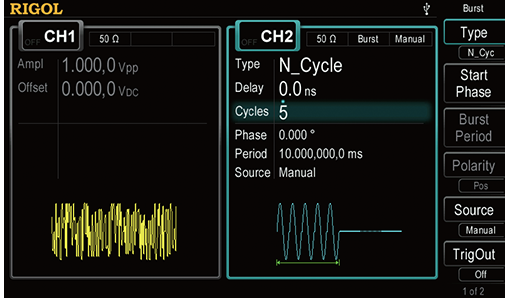

Noise Generation Function And Burst Mode Function
DG4000 can generate white noise with a maximum bandwidth of 120mhz. In addition, it has the function of noise superposition, which supports the superposition of a Gaussian noise on the main output signal. It can be used to test the anti noise performance of the equipment. Burst mode function provides N-cycle, infinite and gating three types of pulse strings.

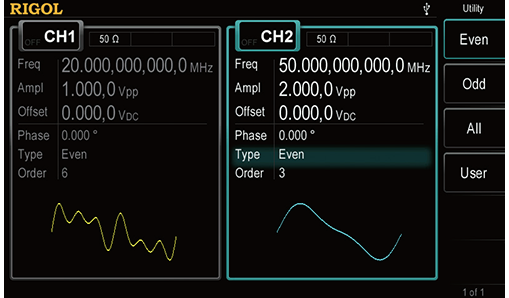

Up To 16th Harmonic Output Function
The output harmonic with specified frequency, amplitude and phase is usually used in the test of harmonic detection equipment or harmonic filter equipment.

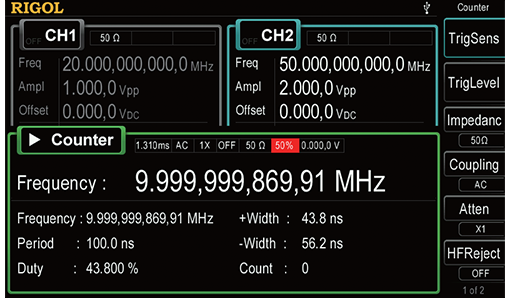

High Resolution Function Of Frequency Meter
DG4000 provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.
DG4000
Model |
Output Frequency- SINE |
Output Frequency- Square |
Channels |
Arbitrary Waveform Length |
Price |
|
|---|---|---|---|---|---|---|
| DG4062 | 60 MHz | 25 MHz | 2 channels | 16 K | $1,059 |
|
| DG4102 | 100 MHz | 40 MHz | 2 channels | 16 K | $1,129 |
|
| DG4162 | 160 MHz | 50 MHz | 2 channels | 16 K | $1,439 |
|
| DG4202 | 200 MHz | 60 MHz | 2 channels | 16 K | $2,069 |
|
DG4000 Programming Guide
|
DG4000 Datasheet
|
| DG4000 DG1000Z DG5000 LabVIEW 2011 General Example | This example VI provides a way to remotely select the waveform function, amplitude, and DC offset.
It also allows you to remotely enable the outputs as well.
The DG4000 DG5000 DG1000Z example code is built using National Instruments VISA and LabVIEW 2011. |
| Ultra Station (old) - Advanced Activation Instructions | Follow these easy steps to activate your UltraStation Advanced software. |
| Ultra Station Software (New) | Waveform creation and manipulation software. Compatible with:DG1000ZDG2000DG4000DG5000 & DG5000 ProDG800 & DG800 ProDG900 & DG900 ProMSO5000 (if generator option enabled)MSO7000 (if generator option enabled)MSO8000 (if generator option enabled) |
| Ultra Station Software (old) | Waveform creation and manipulation software for DG1Z, DG4K, DS scopes with sources (-S), and DG5K series instruments. |
| UltraSigma Instrument Connectivity Driver | Software for Communicating with instruments over VISA. UltraSigma is also a container and gateway for software such as Ultra Signal Studio, Ultra Spectrum, Ultra Power, and more. |
| PA1011 Control Software | Control Software for the PA 1011 Power Amplifier. Works on Win 7 32 bit and Win XP. |
| Ultra Station-adv | Full advanced version of UltraStation wave generation software for DG1000Z, DG4000, DG5000 Series generators as well as DS1000Z and DS2000A "-S" embedded generators. This is a software upgrade license. |
Rack Mount Kit
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RM-DS1000Z/DG4000
|
Rack Mounting Kit for a DS1000Z Series Oscilloscope or DG4000 Series generator. May be different than image. Rack kits are different for each instrument. |
$159
|
|
Carrying Case
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
BAG-G1
|
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope. |
$155
|
|
|
Power Amplifier
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
PA1011
|
10W POWER AMPLIFIER FOR GENERATORS. Requires generator to function. |
$451
|
|
GPIB Adaptor
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
USB-GPIB
|
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly. |
$346
|
|
