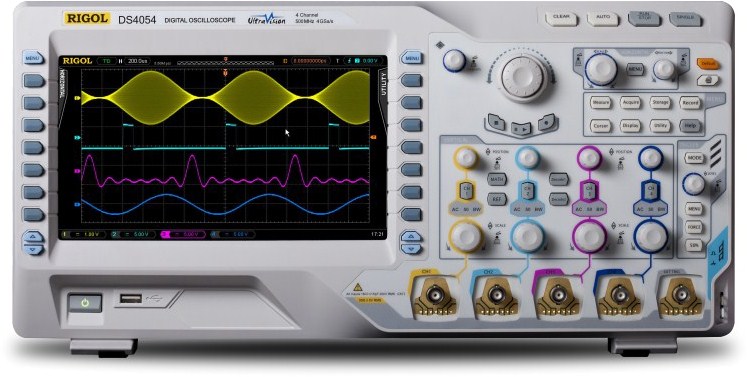

DS4024 | Series Digital Oscilloscopes
Selection Guide
The DS4000 series digital oscilloscope is a versatile, high performance oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s and up to 4 analog channels, the DS4000 is ideal for a wide variety of markets including communications, defense, aerospace, industrial electronics, R&D and educational fields.
- 200 MHz bandwidth
- 4 GSa/s sample rate
- 4 Analog channels available
- 140 million memory points, standard
- 110,000 Waveforms per second
- Original Ultravision technology
- Hardware allows for real-time, continuous waveform recording and waveform analysis
|
Bandwidth
|
200 MHz
|
|
Analog Channels
|
4 |
|
Vertical Sensitivity
|
1 mV/div - 10V/div
|
|
Real-time Sample Rate
|
4 GSa/s
|
|
Memory Depth
|
140 Million Points
|
|
Waveform Acquisition Rate
|
110,000 Waveforms per Second
|
|
Standard Interface
|
USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
|
|
Vertical Resolution
|
8 bits
|
|
Math
|
＋, －, ×, FFT, customizable user defined
|
|
Cursor Measurements
|
Manual, Track and Auto Measure modes
|
| DS4000 Specs |
| |
Datasheets
| DS4000 Datasheet |
|
User's Manual(s)
| DS4000 User's Guide |
|
| DS4000 Quickguide |
|
| Probe Data Sheet |
|
| Oscilloscope Declassification Guide |
|
Programming Manual(s)
| DS4000 Programming Guide |
|
Specifications
| DS4000 Specs |
|
Service Manuals
| DS4000 Service Manual |
|
| 3 Year Product Warranty Agreement |
|
Catalogs
| Full Line Catalog |
|
| Product Selection Guide |
|
To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments
For help writing your own programs for our instruments review the programming manual or contact us directly.
Drivers
| DS4000 IVI Driver |
|
Software Applications
| Simple Excel VBA Control program, DS2000, DS4000, DS6000 Oscilloscopes |
|
| LabVIEW 2011 General Example code for the DS4000 and DS6000 Oscillscopes. |
|
| How do I install Ultra Signal Studio, Ultra Spectrum, or Ultra Power? |
|
| UltraSigma |
|
| C#.NET basic instrument communication example |
|
| User's Guide for UltraSigma Software |
|
| How do I install UltraSigma? |
|
Standard Accessories (included)
-
Probes - qty. 4
-
FacePlate
Instrument Display Cover
-
Packing Kit
-
Product CD
-
Calibration Certificate
-
Power Cord
-
USB Cable
Optional Accessories
-
USB-GPIB
$299
In StockUSB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.
-
RP7150
$3,900
Ships in 4-6 weeks1.5 GHz Bandwidth Active Probe Kit option for DS4000 & DS6000 Series Oscilloscopes
-
SD-RS232-DS4
$500
In StockRS232 & UART BUS Serial Decode Option for the DS4000 Oscilloscope.
-
RP5600A
$300
Ships in 4-6 weeks600 MHz Bandwidth 10:1 Passive Probe Kit (these ship standard with DS6000 Series Oscilloscopes)
-
SD-I2C-DS4
$500
In StockI2C & SPI BUS Serial Decode Option for the DS4000 Oscilloscope. SPI decoding requires a 4 channel DS4000.
-
-
SD-FLEXRAY-DS4
$1,200
In StockFLEXRAY BUS Serial Decode Option for the DS4000 Oscilloscope.
-
DS4000-RMSA
$199
Ships in 4-6 weeksRack Mounting Kit for a DS4000 Series Oscilloscopes. May be different than image. Rack kits are different for each instrument.
-
-
-
RP1050H
$999
Ships in 4-6 weeksHigh Voltage 15KV (1000:1), 50MHz Passive Probe. AC:Pulse = 30KVpp AC:Sine= 10KVrms
-
-
-
-
-
RP1004C
$4,250
Ships in 7-9 weeksCurrent Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.
-
RP1050D
$650
In StockHigh Voltage Differential Probe, DC-50 MHz, 7000 Vpp
-
RP1005C
$3,750
Ships in 7-9 weeksCurrent Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.
-
-
RP1100D
$750
In StockHigh Voltage Differential Probe, DC-100 MHz, 7000 Vpp
-
RP1025D
$450
In StockHigh Voltage Differential Probe, DC-25 MHz, 1400 Vpp
-
-
-
-
Price vs. Bandwidth
-
DS4000 Calibration Certificate
How do I check the trigger rate of a DS6 or DS4 series of oscilloscope? You can use any unused channel on the DS4 or DS6 scope as a counter. Simply connect a BNC cable from the Trigger out connection on the back of the scope to the unused channel. Configure the Trigger connector as a Trigger Output and the unused channel DS4000 Packing list Here is a sample of the DS4000 series of oscilloscopes packing list. Can you disable the AUTOSET button on the DS4 and DS6 series? Not at this time. What products are LXI compliant? The attached document lists the LXI Compliant instruments. Does the DG4000 support WFM waveform file transfers from RIGOL scopes? Many RIGOL scopes can be used to capture data and then have that data transferred and replayed using a DG family of arbitrary waveform generator. The DG4000 series does not support USB cable transfer of WFM files at this time.It does support wavef Enabling Maximum Recording Length The DS2, 4, and 6000 series of oscilloscopes feature powerful record, playback, and analyze capabilities. Here are simple instructions on how to enable the maximum number of available frames for your scope. RP7150 Users Guide PCK-100 Users Guide Here are the calibration instructions for use with the PCK-100 Kit. DS2000 DS4000 DS6000 Firmware Upgrade Procedure Here are the instructions for upgrading the firmware on your DS2, 4, or 6000 series of scopes. Maximum Acquisition times for DS2000 DS4000 DS6000 scopes Here are timing charts showing maximum acquisition times for some of our deep memory scopes. DS6000 and DS4000 (Version before 00.01.00.00.06) WFM converter Here is a small application that will convert waveform files (extension *.WFM) to CSV text files.
Option license activation process for the DS2000, DS4000, and DS6000 Oscilloscopes Here are instructions for activating licenses for the DS2000, DS4000, and DS6000 series of oscilloscopes. What is the capacitance of the RP6150 and RP6150A passive probe? 1.6pF. Square wave displayed as sine wave on an oscilloscope. A scope user attempting to view a square wave on an oscilloscope might view a sine wave of the same frequency in place of a square wave. This is not a necessarily a sign of a defect with the scope or the generator, however an effect of the constituent hig Are your products UL or CSA listed? At this time, many of our products are C TUV USA listed. Per the TUV website, http://www.tuvasi.com/en/tests-and-analysis/information-about-nrtl-tests.htmlThe C TUV US mark is recognized as the equivalent and direct replacement to the UL and CSA m When I plug in my instrument via USB, I get a Windows Page Fault error ( Blue Screen of Death / BSoD ). There is a known issue with the IVI VISA Shared components version.See attached document for more details. What data set size is used to calculate the FFT on the DS series of scopes? The FFT is calculated using the displayed data set.DS1000E/D/B/CA series scopes = 600 Data pointsDS4000 series = 700 pointsDS6000 series = 700 points Software Compatibility The attached PDF file describes Windows 7 Compatibility Issues. Help File Error: Navigation to web page cancelled. Some instrument manuals are compiled HTML files with extensions ending in .CHM. On occasion, they have shown Navigation to web page cancelled. Here are some steps to help solve that error. Where do I find instrument drivers for LabVIEW? http://www.ni.com/downloads/idnet/ Rigol Scopes VISA Driver Installation / Rigols UltraScope software not detect Rigol scope attached to PC via USB OR User receives Run Time Error '48': File not found VISA32.DLL error message when UltraScope is launched. The user either has not installed the latest available National Instruments VISA Runtime engine or the version of National Instruments VISA Runtime Engine included on the CD that the user installed is outdated.In both cases, the recommended solution VISA Runtime for Apple OS X To use a VISA compatible Rigol instrument under Apple OS X, the user must install National Instruments VISA run-time engine for OS XAs of this writing the latest OS X VISA run-time engine from National Instruments is NI-VISA 5.0NI-VISA 5.0 can be Can you set up any RIGOL scopes to stop triggering after a specific averaging number? Not at this time. The average acquisition mode for the DS1000E/D, DS1000CA, DS1000B, DS4000, and DS6000 scopes are identical in function. They collect a boxcar average of the last acquisitions on a rolling basis. How do I configure a DS1000B Series Oscilloscope to return maximum data lengths? This note covers how to configure the DS1000B series of oscilloscope to return the maximum data length.This can be useful for storing to a USB memory stick. RP2200 Users Guide RP1300H Users Guide RP3300 Users Guide RP5600 Users Guide RP6150 Users Guide RP1050H Users Guide Standard probes for all scopes Here is a listing of the standard probes that ship with each scope. Why does my data not appear to have 8 bits of resolution? The displayed data is a subset of the actual total measurement range. This is mainly due to a smaller number of vertical pixels than bits available. See attached for more details. Bits vs. dBs Here are instructions on converting bits of resolution to dBs. Benefits of deep memory Modern oscilloscopes feature many powerful tools to help you get your job done. Here are some of the benefits of deep memory. My Instrument IVI Driver does not appear in the LabVIEW tools palette. You may need to manually find and convert the IVI driver. See attachment for more details. The instrument not recognized over the USB bus In some cases, an instrument may not be recognized over the USB bus. Here are some troubleshooting hints to help. -
-
