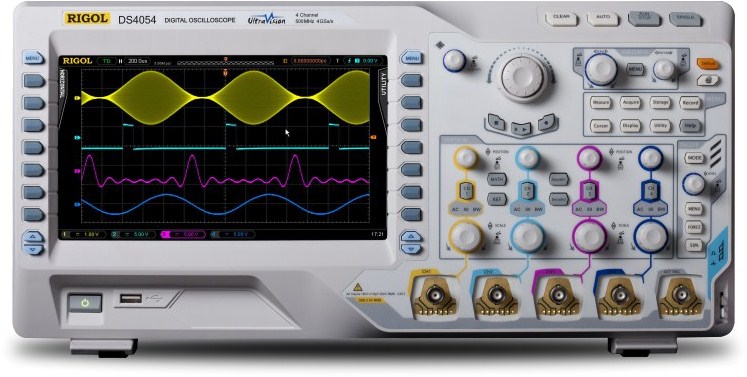

DS4054 | Series Digital Oscilloscopes

Selection Guide View Larger Image Product Video

DS4054
Price: $5,899
In Stock

The DS4000 series digital oscilloscope is a versatile, high performance oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s and up to 4 analog channels, the DS4000 is ideal for a wide variety of markets including communications, defense, aerospace, industrial electronics, R&D and educational fields.

Features
Specifications
Documents
Software
Accessories

500 MHz bandwidth
4 GSa/s sample rate
4 Analog channels available
140 million memory points, standard
110,000 Waveforms per second
Original Ultravision technology
Hardware allows for real-time, continuous waveform recording and waveform analysis

Bandwidth	500 MHz
Analog Channels	4
Vertical Sensitivity	1 mV/div - 10V/div
Real-time Sample Rate	4 GSa/s
Memory Depth	140 Million Points
Waveform Acquisition Rate	110,000 Waveforms per Second
Standard Interface	USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution	8 bits
Math	＋, －, ×, FFT, customizable user defined
Cursor Measurements	Manual, Track and Auto Measure modes

DS4000 Specs

Datasheets

DS4000 Datasheet

User's Manual(s)

DS4000 Quickguide
DS4000 User's Guide
Oscilloscope Declassification Guide

Programming Manual(s)

DS4000 Programming Guide

Specifications

DS4000 Specs

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Drivers

DS4000 IVI Driver

Software Applications

User's Guide for UltraSigma Software?
Simple Excel VBA Control program DS4000 DS6000 Oscilloscopes
C#.NET basic instrument communication example
UltraSigma
How do I install UltraSigma?
How do I install Ultra Signal Studio, Ultra Spectrum, or Ultra Power?
LabVIEW 2011 General Example code for the DS4000 and DS6000 Oscillscopes.

Standard Accessories (included)

Probes - qty. 4
FacePlate

Instrument Display Cover
Calibration Certificate
Power Cord
USB Cable
Packing Kit
Product CD

Optional Accessories

Compare Instruments

Price vs. Bandwidth

FAQs

Are your products UL or CSA listed?
At this time, many of our products are C TUV USA listed. Per the TUV website, http://www.tuvasi.com/en/tests-and-analysis/information-about-nrtl-tests.html The C TUV US mark is recognized as the equivalent and direct replacement to the UL and CSA marks by city, county

How do I configure a DS1000B Series Oscilloscope to return maximum data lengths?
This note covers how to configure the DS1000B series of oscilloscope to return the maximum data length. This can be useful for storing to a USB memory stick.

Where do I find instrument drivers for LabVIEW?
http://www.ni.com/downloads/idnet/

Software Compatibility
The attached PDF file describes Windows 7 Compatibility Issues.

Square wave displayed as sine wave on an oscilloscope.
A scope user attempting to view a square wave on an oscilloscope might view a sine wave of the same frequency in place of a square wave. This is not a necessarily a sign of a defect with the scope or the generator, however an effect of the constituent higher frequency harmonic

VISA Runtime for Apple OS X
To use a VISA compatible Rigol instrument under Apple OS X, the user must install National Instruments VISA run-time engine for OS X As of this writing the latest OS X VISA run-time engine from National Instruments is NI-VISA 5.0 NI-VISA 5.0 can be downloaded directly

Rigol Scopes VISA Driver Installation / Rigol’s UltraScope software not detect Rigol scope attached to PC via USB OR User receives "Run Time Error '48': File not found VISA32.DLL" error message when UltraScope is launched.
The user either has not installed the latest available National Instruments VISA Runtime engine or the version of National Instrument’s VISA Runtime Engine included on the CD that the user installed is outdated. In both cases, the recommended solution is to visit National

DS4000 Packing list
Here is a sample of the DS4000 series of oscilloscopes packing list.

Can you disable the AUTOSET button on the DS4 and DS6 series?
Not at this time.

What products are LXI compliant?
The attached document lists the LXI Compliant instruments.

Does the DG4000 support WFM waveform file transfers from RIGOL scopes?
Many RIGOL scopes can be used to capture data and then have that data transferred and replayed using a DG family of arbitrary waveform generator. The DG4000 series does not support USB cable transfer of WFM files at this time. It does support waveform transfer via USB

When I plug in my instrument via USB, I get a Windows Page Fault error ( Blue Screen of Death / BSoD ).
There is a known issue with the IVI VISA Shared components version. See attached document for more details.

What data set size is used to calculate the FFT on the DS series of scopes?
The FFT is calculated using the displayed data set. DS1000E/D/B/CA series scopes = 600 Data points DS4000 series = 700 points DS6000 series = 700 points

How do I check the trigger rate of a DS6 or DS4 series of oscilloscope?
You can use any unused channel on the DS4 or DS6 scope as a counter. Simply connect a BNC cable from the Trigger out connection on the back of the scope to the unused channel. Configure the Trigger connector as a Trigger Output and the unused channel as a counter. The

Can you set up any RIGOL scopes to stop triggering after a specific averaging number?
Not at this time. The average acquisition mode for the DS1000E/D, DS1000CA, DS1000B, DS4000, and DS6000 scopes are identical in function. They collect a boxcar average of the last acquisitions on a rolling basis.

DS4000 Calibration Certificate

Application Notes

DS6000 Video Signal and Glitch Demonstration Note
