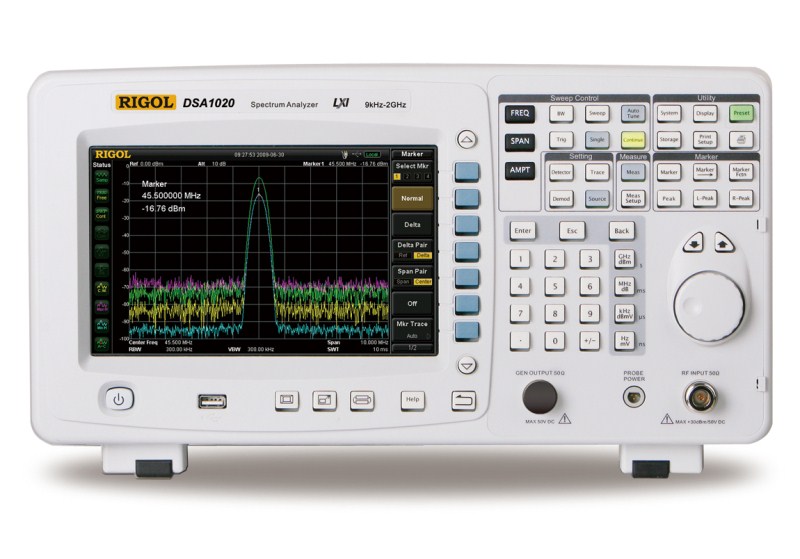

DSA1020 | 2 GHz Spectrum Analyzer
Selection Guide- 2 GHz Bandwidth
- All digital IF Design
- 100 Hz Minimum Resolution Bandwidth
- Unique Widescreen Display and VGA output
- Save thousands of measurements and system configurations with 1 GB of internal storage
- Options including Tracking Generator, Battery, Advanced Measurements, PreAmplifier, and Case
|
Frequency Range
|
9kHz - 2GHz
|
|
|
DANL (10 MHz and up)
|
-120dBm
|
|
|
Phase Noise
|
<-80dBc/Hz @10kHz offset typical
|
|
|
Total Amplitude Accuracy*1
|
<1.5dB
|
|
|
Minimum RBW
|
100Hz
|
|
|
RF Input Maximum Level
|
+30dBm
|
|
|
Interfaces
|
USB host & device, LXI-C (Ethernet), GPIB (optional), VGA output, 10 MHz REF In, 10 MHz REF Out, External Trigger In
|
|
|
Trigger Source
|
Free Run, Video, External
|
|
|
External Trigger Level
|
5 V TTL
|
|
|
Dimensions
|
Width x Height x Depth = 399mm X 223mm X 159mm
|
|
|
Weight
|
6.2kg(without battery)
|
|
*1: 95% confidence level, see user's manual for complete specifications
| DSA1000 Specs |
| |
Datasheets
| DSA1000 Datasheet |
|
User's Manual(s)
| DSA1000 Quickguide |
|
| DSA1000 User's Guide |
|
| DSA Declassification Guide |
|
Programming Manual(s)
| DSA1000 Programming Guide |
|
Specifications
| DSA1000 Specs |
|
Service Manuals
| 3 Year Product Warranty Agreement |
|
Catalogs
| Full Line Catalog |
|
| Product Selection Guide |
|
To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments
For help writing your own programs for our instruments review the programming manual or contact us directly.
Drivers
| DSA1000 IVI Driver |
|
Software Applications
| UltraSpectrum Software Introduction |
|
| UltraSpectrum Software Introduction |
|
| How do I install Ultra Signal Studio, Ultra Spectrum, or Ultra Power? |
|
| UltraSigma |
|
| C#.NET basic instrument communication example |
|
| UltraSpectrum |
|
| Simple Excel VBA Control program DSA8, DSA1000, DSA1000A Spectrum Analyzers |
|
| User's Guide for UltraSigma Software |
|
| Pass/Fail Limit Builder |
|
| LabVIEW 2010 Example Basic DSA Control |
|
| How do I install UltraSigma? |
|
| How do I retrieve data using UltraSigma and a DSA? |
|
Standard Accessories (included)
-
FacePlate
Instrument Display Cover
-
FacePlate
Instrument Display Cover
-
Packing Kit
-
Product CD
-
Calibration Certificate
-
Power Cord
-
USB Cable
Optional Accessories
-
USB-GPIB
$299
In StockUSB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.
-
ARM
$50
In StockArm mount option for a DSA1000 Series or DSA1000A Series Spectrum Analyzer or DS6000 Series Oscilloscope
-
DSA1000-SCBA
$150
In StockSoft Carrying Bag for a DSA1000 Series or DSA1000A Series Spectrum Analyzer.
-
DSA1000-AMK
$500
In StockSpectrum Analyzer Measurement Package Option
-
DSA1000-RMSA
$370
In StockRack Mounting Kit for a DSA1000 Series or DSA1000A Series Spectrum Analyzer. May be different than image. Rack kits are different for each instrument.
-
DSA1000-FPCS
$70
Ships in 4-6 weeksReplacement Front Panel Cover for a DSA1000 Series or DSA1000A Series Spectrum Analyzer
-
USB-GPIB
$299
In StockUSB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.
-
ARM
$50
In StockArm mount option for a DSA1000 Series or DSA1000A Series Spectrum Analyzer or DS6000 Series Oscilloscope
-
DSA1000-SCBA
$150
In StockSoft Carrying Bag for a DSA1000 Series or DSA1000A Series Spectrum Analyzer.
-
DSA1000-AMK
$500
In StockSpectrum Analyzer Measurement Package Option
-
DSA1000-RMSA
$370
In StockRack Mounting Kit for a DSA1000 Series or DSA1000A Series Spectrum Analyzer. May be different than image. Rack kits are different for each instrument.
-
DSA1000-FPCS
$70
Ships in 4-6 weeksReplacement Front Panel Cover for a DSA1000 Series or DSA1000A Series Spectrum Analyzer
-
-
UltraSpectrum
$260
In StockSoftware for the DSA800, DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package.
-
TX1000
$859
Ships in 4-6 weeksRF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier.
-
DSA Utility Kit
$719
In StockDSA Accessories Package including?cables, adaptors, and antennas.
-
Price vs. Frequency
-
How do I achieve the lowest DANL with my spectrum analyzer? Attenuator = 0dBPreamplifier ONCenter Frequency = 10MHzRBW = 10HzSpan = 10KHz DSA-1000 Introduction This document contains instructions on operating a Rigol DSA for the first time.
TX1000 Application Note Here is an application note that covers using the TX1000 RF Demo Kit. Including software installation, Bandpass filter, RF Amplifier, and other controls. What products are LXI compliant? The attached document lists the LXI Compliant instruments. Using A Tracking Generator Ken Wyatt explains a tracking generator on his EMC blog. Leave Rigol to read it on the blog site.
How do I achieve the lowest DANL with my spectrum analyzer? Attenuator = 0dBPreamplifier ONCenter Frequency = 10MHzRBW = 10HzSpan = 10KHz DSA-1000 Introduction This document contains instructions on operating a Rigol DSA for the first time. TX1000 Application Note Here is an application note that covers using the TX1000 RF Demo Kit. Including software installation, Bandpass filter, RF Amplifier, and other controls. What products are LXI compliant? The attached document lists the LXI Compliant instruments. Using A Tracking Generator Ken Wyatt explains a tracking generator on his EMC blog. Leave Rigol to read it on the blog site. Working with DSA Correction factors Here are instructions on working with DSA correction factors. DSA Ethernet connectivity troubleshooting Here are some hints and tips to successfully connecting and testing the Ethernet connection on the Rigol DSA line of instruments. Are your products UL or CSA listed? At this time, many of our products are C TUV USA listed. Per the TUV website, http://www.tuvasi.com/en/tests-and-analysis/information-about-nrtl-tests.htmlThe C TUV US mark is recognized as the equivalent and direct replacement to the UL and CSA m DSA Packing list Here is a sample of the packing list for the DSA family of spectrum analyzer's. When I plug in my instrument via USB, I get a Windows Page Fault error ( Blue Screen of Death / BSoD ). There is a known issue with the IVI VISA Shared components version.See attached document for more details. VB1020/1030 VSWR Bridge User's Guide and Data Sheet. Here is the spec sheet for the VSWR data sheet. Software Compatibility The attached PDF file describes Windows 7 Compatibility Issues. Help File Error: Navigation to web page cancelled. Some instrument manuals are compiled HTML files with extensions ending in .CHM. On occasion, they have shown Navigation to web page cancelled. Here are some steps to help solve that error. Where do I find instrument drivers for LabVIEW? http://www.ni.com/downloads/idnet/ Rigol Scopes VISA Driver Installation / Rigol’s UltraScope software not detect Rigol scope attached to PC via USB OR User receives Run Time Error '48': File not found VISA32.DLL error message when UltraScope is launched. The user either has not installed the latest available National Instruments VISA Runtime engine or the version of National Instrument’s VISA Runtime Engine included on the CD that the user installed is outdated.In both cases, the recommended solution VISA Runtime for Apple OS X To use a VISA compatible Rigol instrument under Apple OS X, the user must install National Instruments VISA run-time engine for OS XAs of this writing the latest OS X VISA run-time engine from National Instruments is NI-VISA 5.0NI-VISA 5.0 can be DSA Calibration Certificate Here is a sample of the calibration certificate for the DSA family of spectrum analyzers. DSA External Trigger Rate The DSA 1000, 1000A, and 800 series of spectrum analyzers have an external trigger rate of approximately 5Hz. Spectrum analyzer detector selection guide. Spectrum analyzers have many options when it comes to input detector configurations. This document provides a guide to selecting the proper filter for the input signal type. DSA FM/AM Demodulation tips Here are some helpful tips for using the demodulation function on the Rigol DSA's. Using A Tracking Generator Ken Wyatt explains a tracking generator on his EMC blog. Leave Rigol to read it on the blog site. How to find installed DSA options Here are instructions for checking the installed options for the Rigol DSA series of spectrum analyzers. Bits vs. dBs Here are instructions on converting bits of resolution to dBs. DSA Firmware Upgrade instructions See attached for instructions to upgrade your DSA. UltraSpectrum License Activation instructions UltraSpectrum is a software package that gives remote controlled data collection and analysis for Rigol DSA spectrum analyzers. See attached for instructions on activating the software. My Instrument IVI Driver does not appear in the LabVIEW tools palette. You may need to manually find and convert the IVI driver. See attachment for more details. The instrument not recognized over the USB bus In some cases, an instrument may not be recognized over the USB bus. Here are some troubleshooting hints to help. -
-
EMC Precompliance Testing This application note covers hints and tips for implementation of precompliance steps to help lower the cost of full compliance EMC testing.It also features a series of documents that have practical use details for EMC testing.
How do I measure VSWR using a Spectrum Analyzer? Here are instructions on using a Spectrum Analyzer to measure VSWR for an antenna. It can be applied to other passive RF devices and cables as well. FM signal transmission and demodulation demo This application uses a DG4162 arbitrary waveform generator and audio source to create a custom FM transmission and then a DSA-1030A spectrum analyzer to receive and demodulate the signal.
DSA1000 Application Note Hardware for a simple Mixer This note describes using a Simple Transconductance Amplifier as a Mixer. Mixing RF Signals This note uses the TX1000 RF Demo Kit, A DG4000 function Generator, and the DSA815 Spectrum Analyzer to describe and demonstrate the fundamental operation of a multiplexer. EMC Precompliance: Conducted Emission Testing This application note covers standard practices for performing EMC conducted emissions tests using a Rigol DSA-815 spectrum analyzer. Running the DSA800 from a Battery Includes performance data for DSA800 while running on battery. -
