DNA800

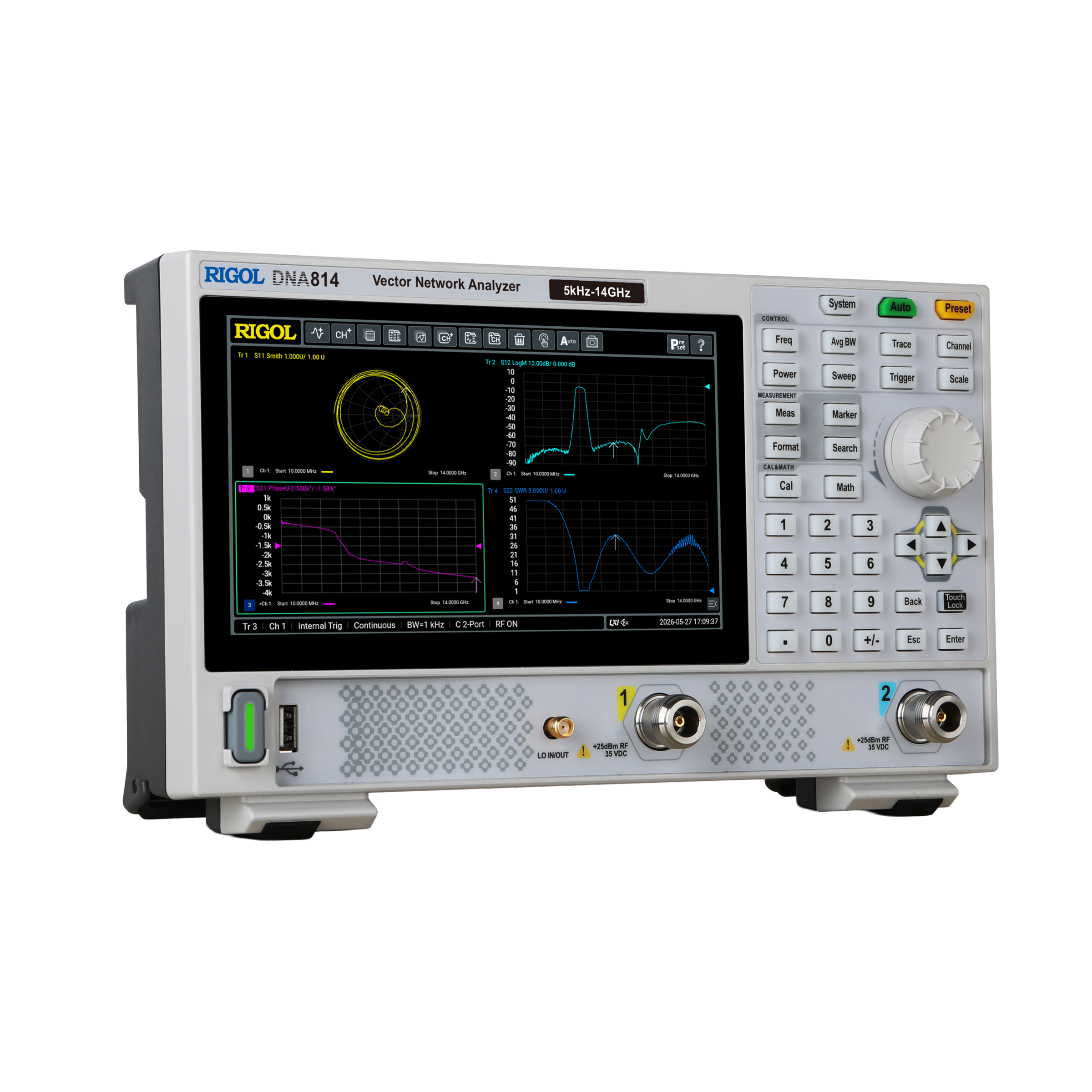

The DNA800 Series is an ultra-portable entry-level vector network analyzer featuring a true two-port architecture and frequency coverage from 5 kHz to 14 GHz. In a compact form factor, it delivers comprehensive S-parameter and impedance measurements. With a typical 125 dB dynamic range, 1 Hz to 3 MHz IF bandwidth, and 0.005 dB rms trace noise, it is well suited for testing passive components, filters, and matching networks. A 7-inch multi-touch display, HDMI output, and full SCPI remote control with compatibility for mainstream command sets simplify automated testing in both laboratory and production environments.
Compact in Size. Powerful in Performance.
Every model weighs just 1.9 kg. Pack it into the RIGOL Ultra-Portable Instrument Bag and take professional measurements wherever your work takes you.
Standard USB Type-C PD Power

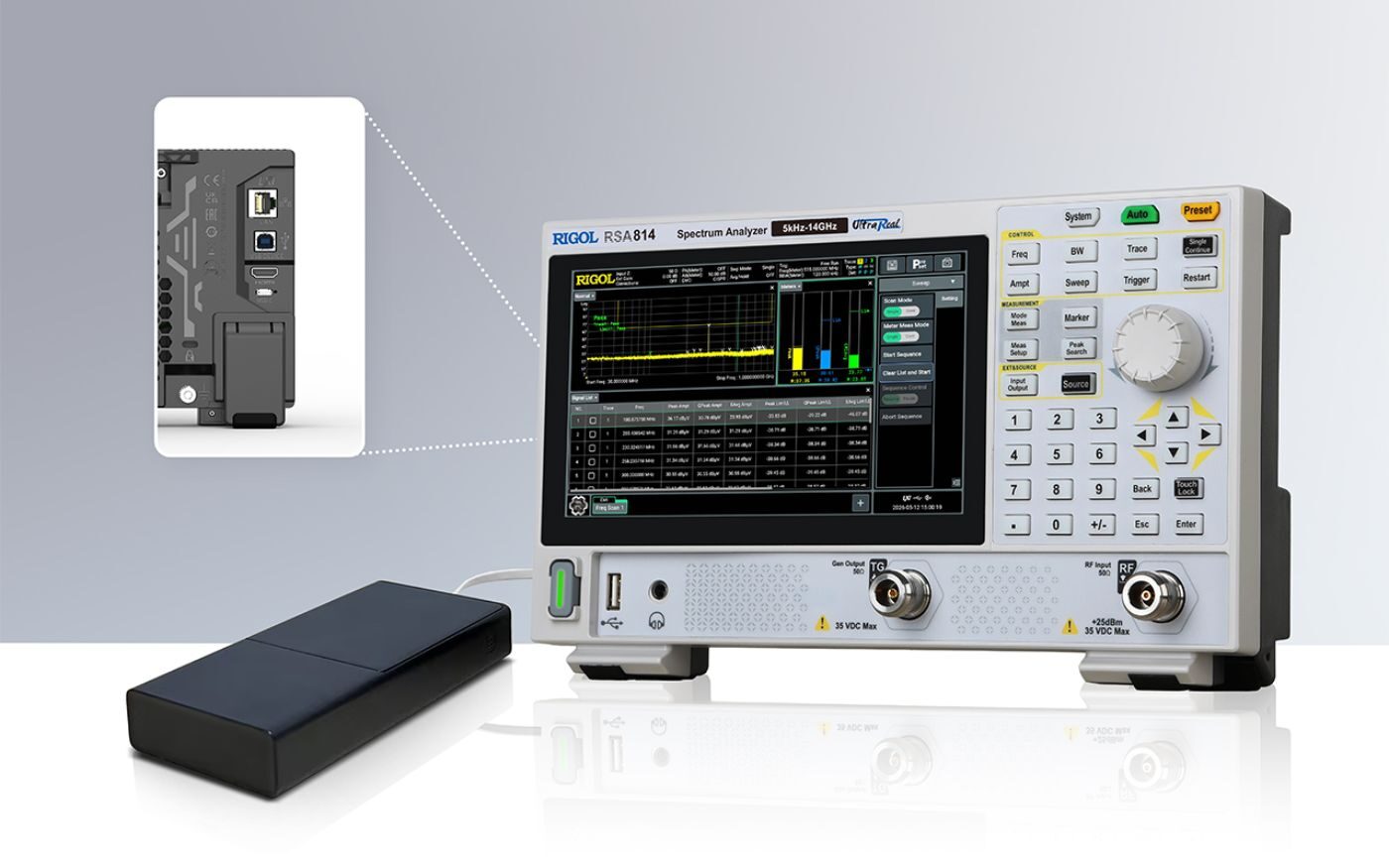

Supports the standard USB Power Delivery (PD) protocol via the Type-C interface. Power the instrument with a power bank for business travel and field testing.
Dual Ports. Wide Frequency Coverage.

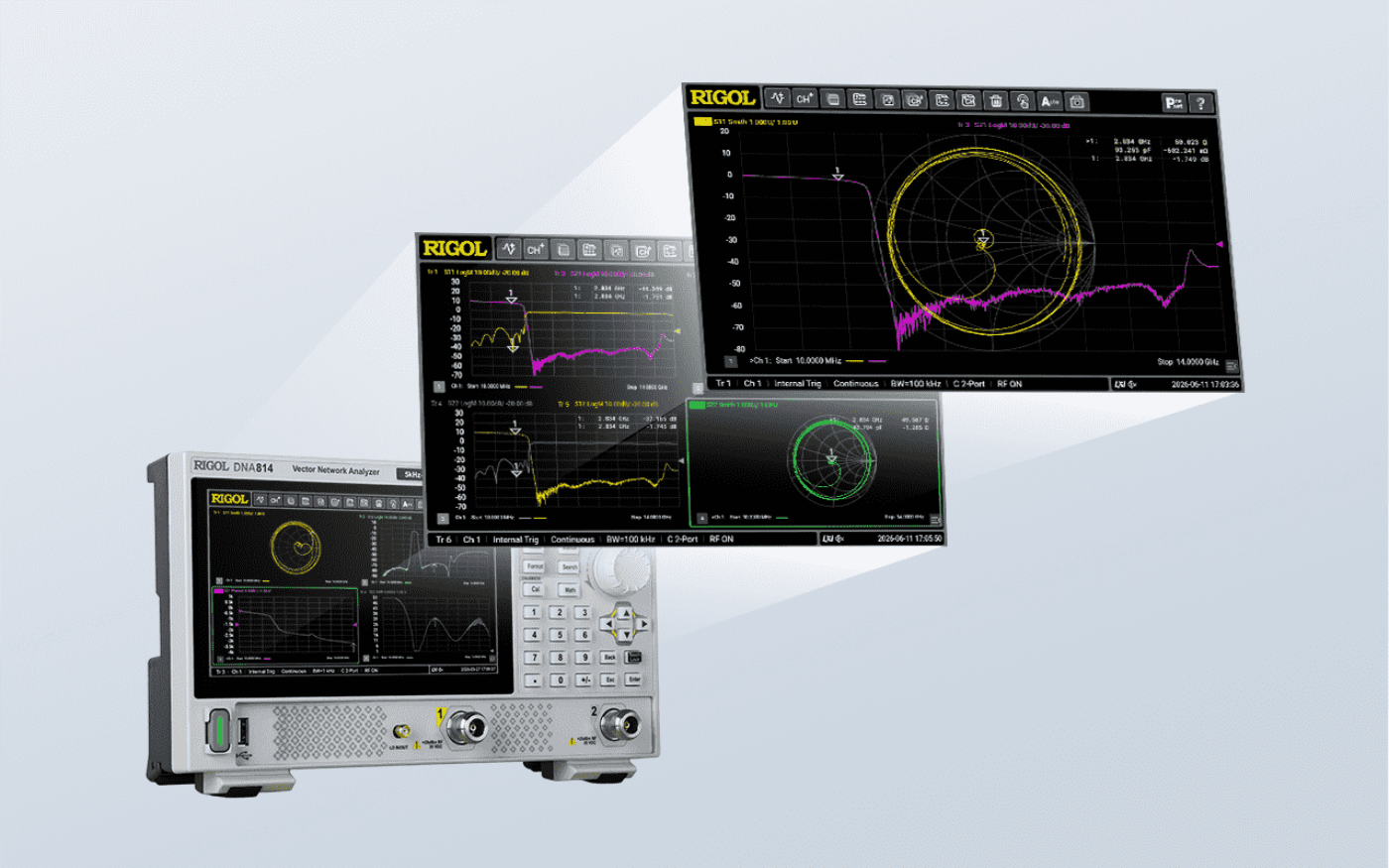

Frequency coverage from 5 kHz to 14 GHz. A true two-port architecture supports full S-parameter (S11 / S12 / S21 / S22) and impedance measurements. Two units can be cascaded for expanded port configurations.
Complete VNA Functionality

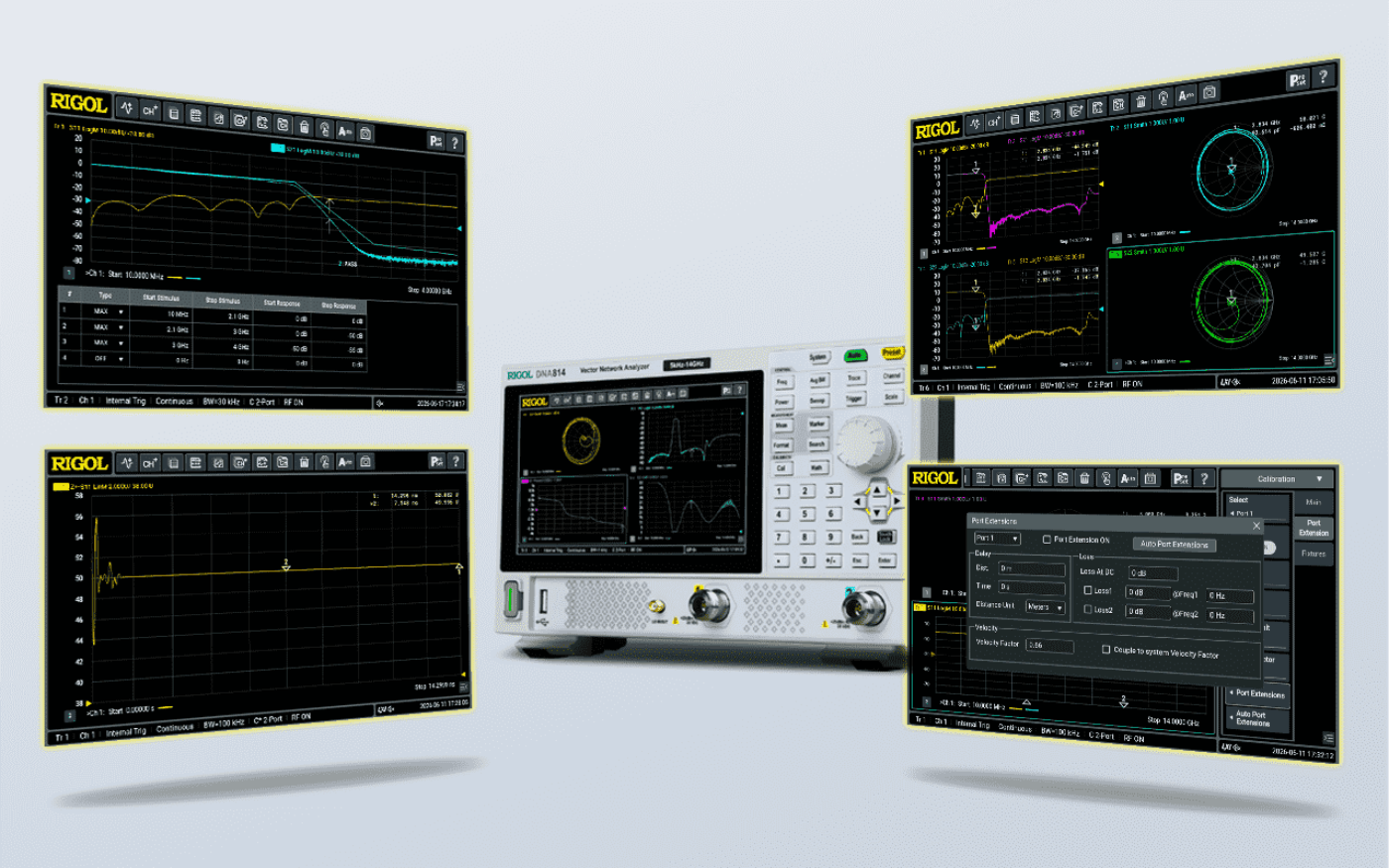

All models support port extension, fixture de-embedding, Pass/Fail testing, and DTF/TDA cable fault and impedance analysis. Multiple data formats and multi-window display improve measurement efficiency.
New Electronic Calibration Kits

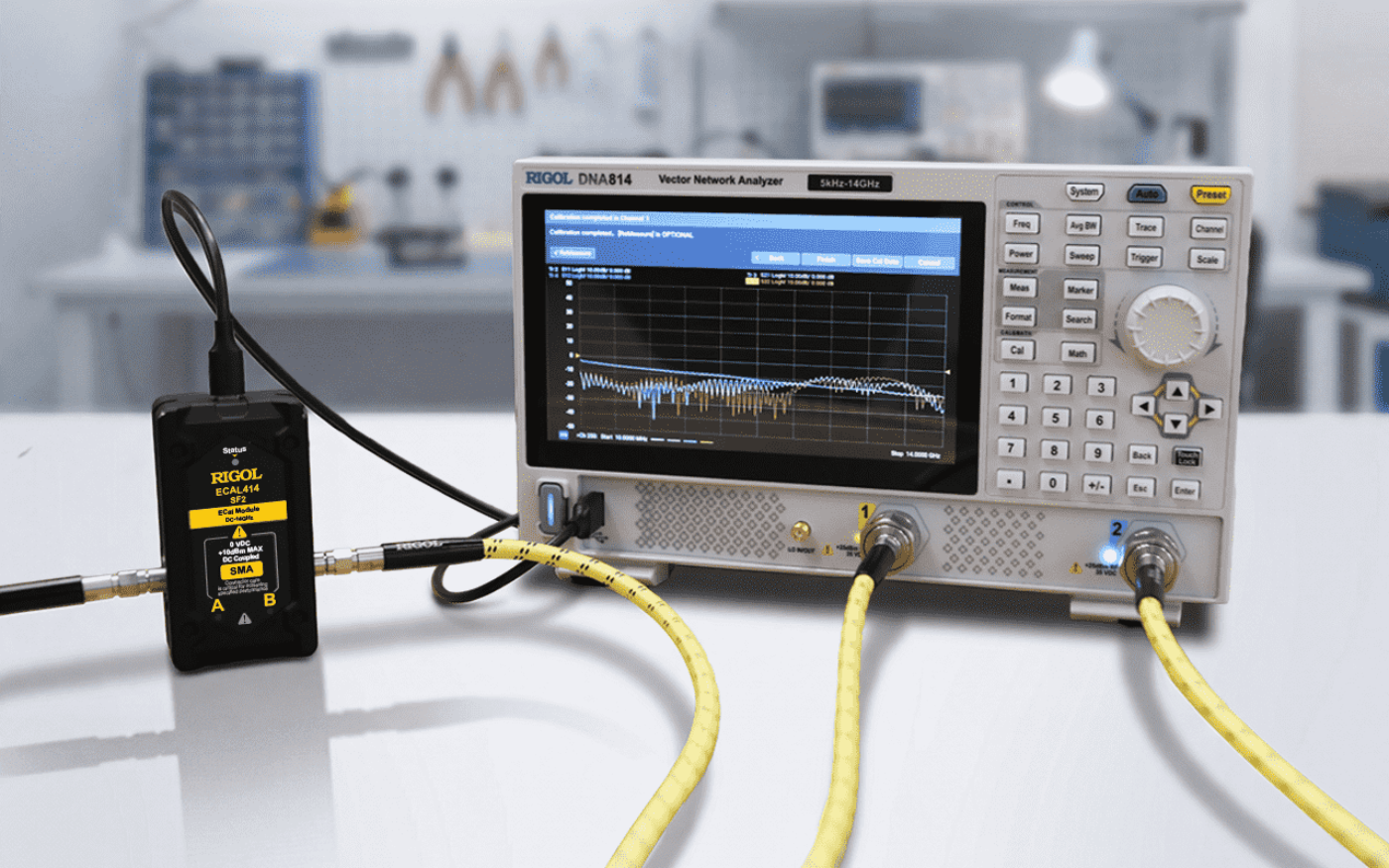

The new ECAL300/400 Series electronic calibration kits simplify two-port calibration with plug-and-calibrate convenience. Precision mechanical calibration kits are also supported to meet different application requirements.
Standard USB, LAN and HDMI Connectivity

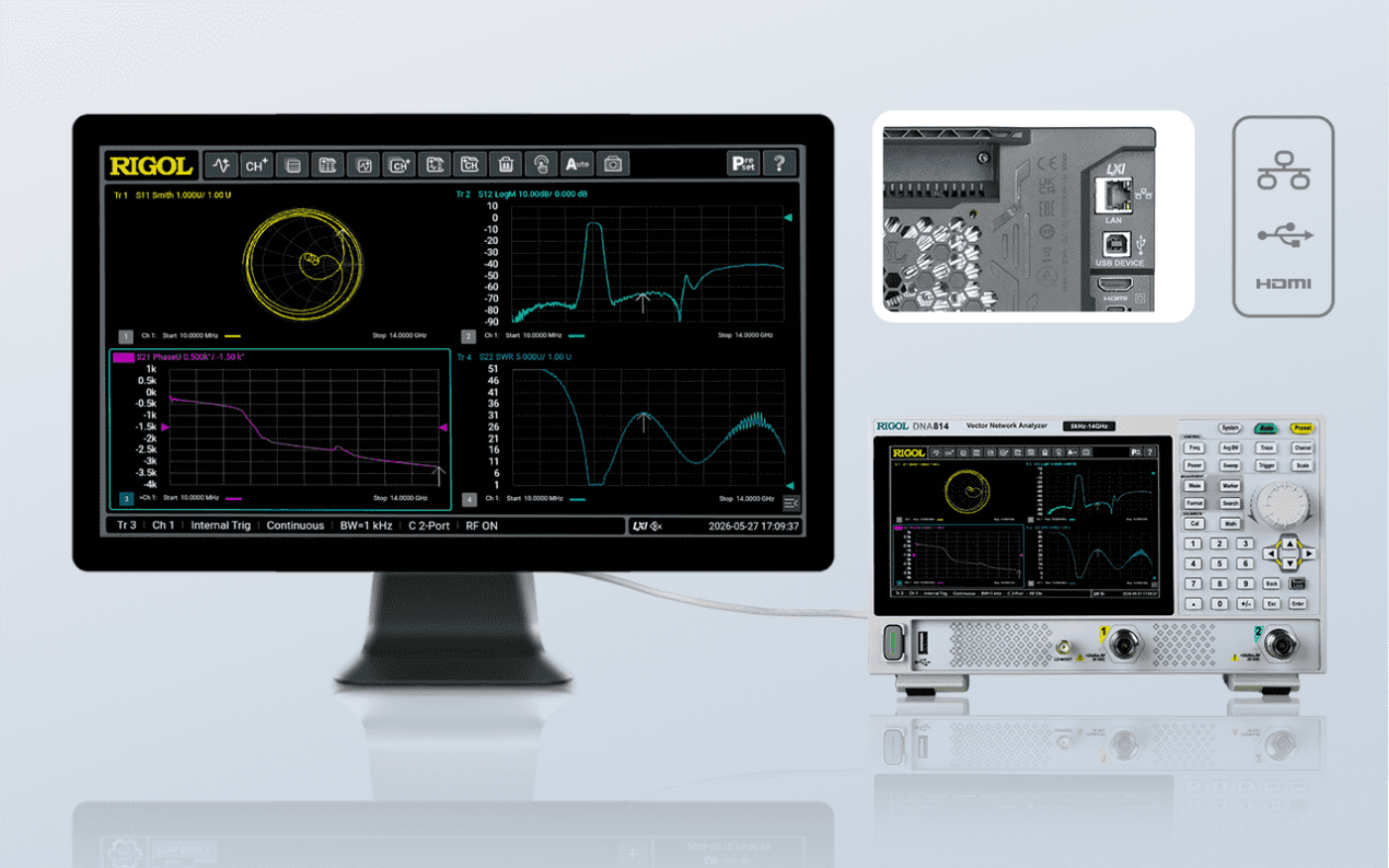

USB and LAN interfaces support remote communication with the standard SCPI command set. An HDMI output enables connection to an external display for enhanced viewing.
WebControl

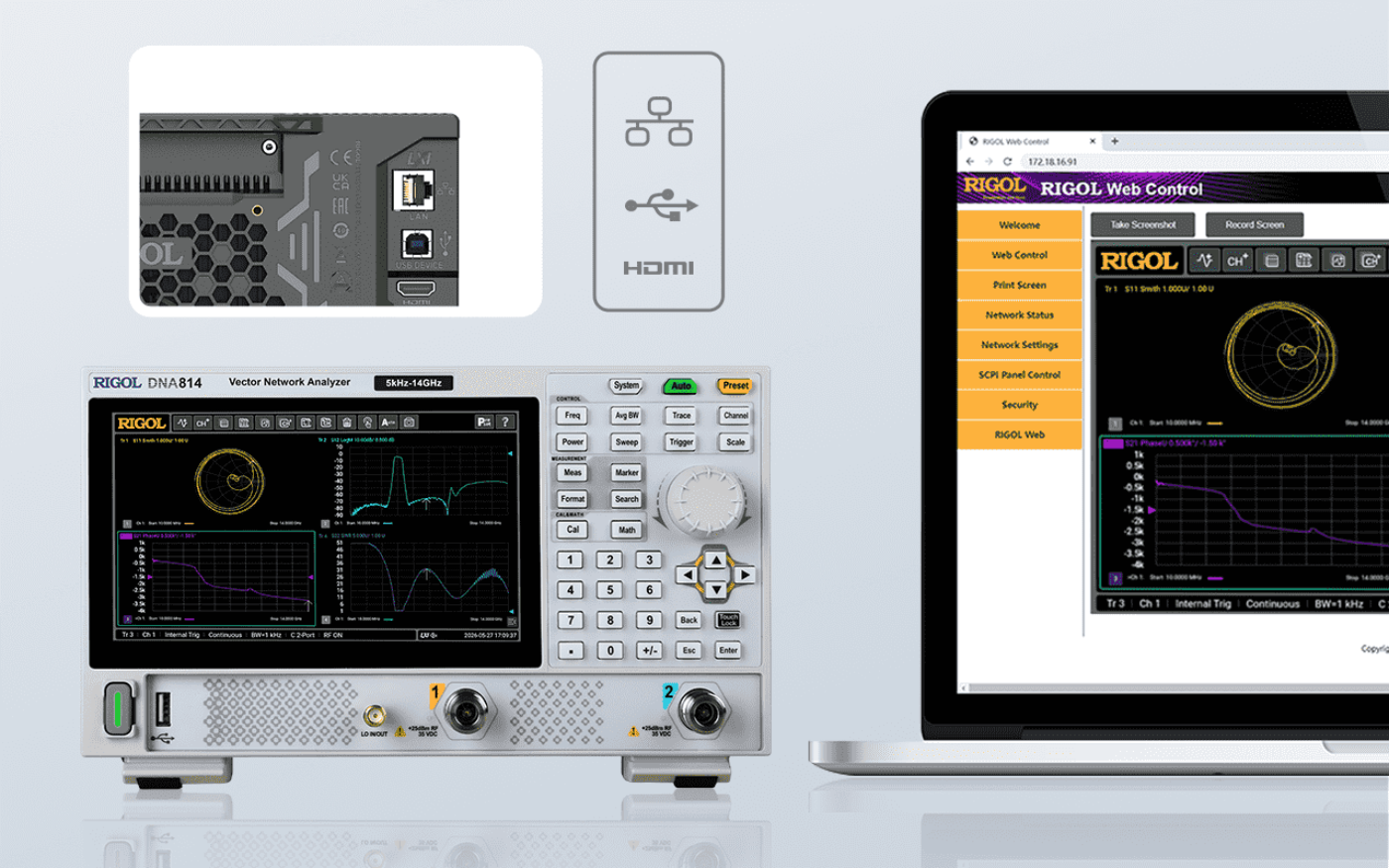

Access and control the instrument through a web browser using its IP address, no PC software installation required. Ideal for remote operation and SCPI command debugging.
DNA800
Model |
Ports |
Frequency Range |
High Dynamic Range |
Price |
|
|---|---|---|---|---|---|
| DNA804 | 2 | 5 kHz ~ 4.5 GHz | 125 dB (typ.) |
$3,599.00
Contact RIGOL |
|
| DNA808 | 2 | 5 kHz ~ 8.5 GHz | 125 dB (typ.) |
$5,999.00
Contact RIGOL |
|
| DNA814 | 2 | 5 kHz ~ 14 GHz | 125 dB (typ.) |
$9,999.00
Contact RIGOL |
|
ECAL
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
ECAL304-NF2
|
Basic ECal, 100 kHz ~ 4.5 GHz, Type-N (f), 50 Ω, 2 ports Contact RIGOL |
$1,099.00
|
|
|
|
ECAL304-SF2
|
Basic ECal, 100 kHz ~ 4.5 GHz, SMA (f), 50 Ω, 2 ports Contact RIGOL |
$1,099.00
|
|
|
|
ECAL309-NF2
|
Basic ECal, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports Contact RIGOL |
$1,799.00
|
|
|
|
ECAL309-SF2
|
Basic ECal, 100 kHz ~ 9 GHz, SMA (f), 50 Ω, 2 ports Contact RIGOL |
$1,799.00
|
|
|
|
ECAL314-NF2
|
Basic ECal, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports Contact RIGOL |
$2,999.00
|
|
|
|
ECAL314-SF2
|
Basic ECal, 100 kHz ~ 14 GHz, SMA (f), 50 Ω, 2 ports Contact RIGOL |
$2,999.00
|
|
|
Rackmount Kit
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
RM5041
|
The RM5041 is compatible with the DHO800, DHO900, MHO900, DG800 Pro, DG900 Pro, and DM858 series. Contact RIGOL |
$179.00
|
|
VNA General Optional Accessory
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
DNA-DTF10
|
Distance to Fault In Stock |
$999.00
|
|
|
|
DNA-TDA10
|
Time Domain Analysis In Stock |
$1,599.00
|
|
|
