DG5000   |  Series Arbitrary Waveform Generators

DG5352
350 MHz
DG5351
350 MHz
DG5252
250 MHz

DG5102
100 MHz
DG5101
100 MHz
DG5072
70 MHz
DG5071
70 MHz


DG5000 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5000 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.
  • Generators up to 350 MHz

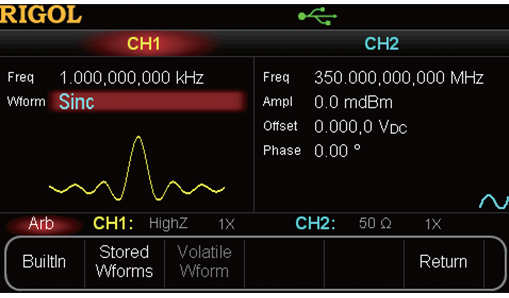

  • 1 GSa/Sec waveform output
  • 14 bit vertical resolution
  • 128 Million Points of Arbitrary Waveform Memory

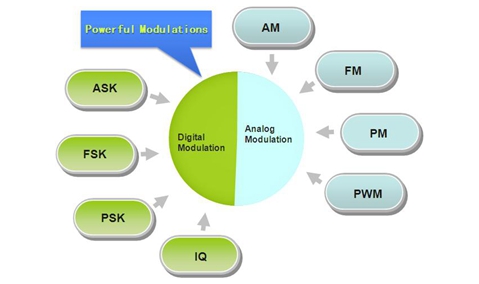

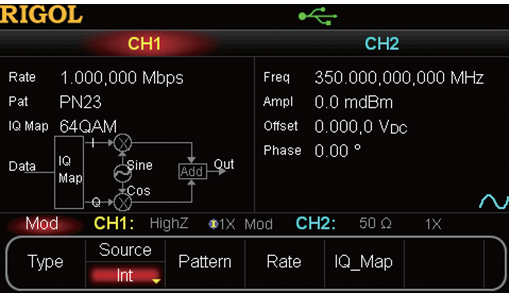

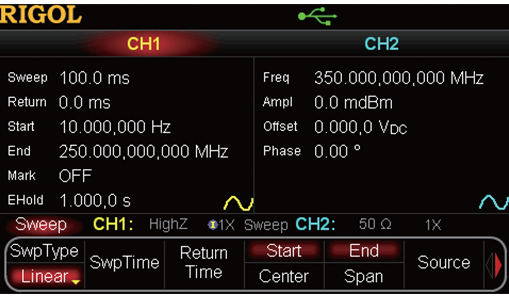

  • Built in standard modulations including IQ modulation for digital baseband generation including QPSK and QAM formats
  • Standard Interfaces including LXI-C (Ethernet), USB device and host, and GPIB

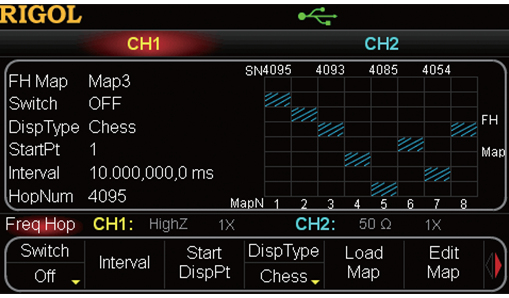

  • Options including output amplifier (PA-1011), digital generator (DG-POD-A), and frequency hopping capability
Model
DG5072 DG5071
Channels
2
1
2
1
2
1
2 1
Frequency
350 MHz
250 MHz
100 MHz
70 MHz
Sample Rate
1 GSa/s
Waveform Length
Up to 128 Million points
Resolution
1 μHz
Amplitude range
5 mVpp - 10 Vpp(50 Ω),10 mV - 20 Vpp(into open circuit)
Vertical Resolution
14 bits

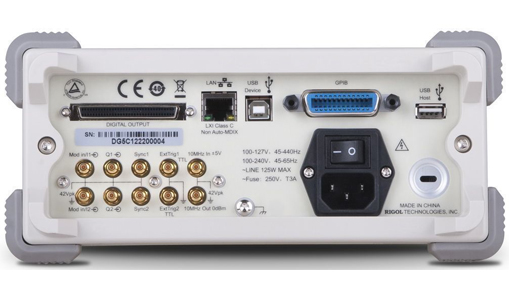

Standard Interface
USB Host(2),USB Device,GPIB,LXI-C (Ethernet)
Options
Hop Frequency Module,Logic Signal Output Module,Power Amplifier
Weight
10 lbs.
DG5000 Specs

DG5000 Specs

Datasheets

DG5000 Datasheet

Ultra Station Features

User's Manual(s)

DG5000 User's Guide

Arbitrary Waveform Generator Declassification Guide

Programming Manual(s)

DG5000 Programming Guide

Specifications

DG5000 Specs

Service Manuals

DG5000 Calibration Guide

DG5000 Performance Verification Guide

3 Year Product Warranty Agreement
