M300 System Series   |  Data Acquisition Mainframes

M300 System
Rigol's M300 Series data acquisition and switch system provides accurate, repeatable measurements with industry leading total system cost optimized for general purpose temperature, resistance, and voltage scanning with a breadth of modules to handle all of your DAQ system requirements. A single mainframe can scan and measure up to 128 fully differential measurements in one instrument. Automatically log data to a USB stick attached to the system or control up to 5 mainframes from a PC with a single instance of the Ultra Acquire software.
Product Feature Customer Benefit
  DMM scanning of up to 256 channels in a single mainframe Fast acquisition of voltage, resistance, temperature and more for whatever sensors or signals you need to measure
Fast acquisition of voltage, resistance, temperature and more for whatever sensors or signals you need to measure   The M300 Mainframe has 5 slots for modules. Typically, one of these modules is taken by a DMM and the other 4 are used for measurement channels. Depending on the modules chosen a slot may have up to 64 measurement channels making 256 measurements per mainframe possible.
  Log Readings directly to USB drive Never run out of memory and never lose data with per scan data archiving to a USB flash drive.

The M300 can internally log up to 100,000 time stamped samples. With a USB drive that can be extended indefinitely. Each scan will log data when completed backing up critical test results in the event of power loss or failure.

  8 module configurations available Create flexible systems customized for your requirements. Simplify setup and debugging with the correct modules.
Create flexible systems customized for your requirements. Simplify setup and debugging with the correct modules.   The M300 offers several module options. For the DMM, there are modules that can make single ended measurements on up to 64 channels. Differential measurements on 20 or 32 channels. There is a modules with 20 voltage and 4 current channels as well.

Additional modules support DIO, Digital to analog converters, and counters as well as simple external switching or matrix switches.
  Easy to use large format display Visualize switch diagrams, scan modes, and datalogging charts all right on the display. Complete testing without a PC from the lab to the field.
Visualize switch diagrams, scan modes, and datalogging charts all right on the display. Complete testing without a PC from the lab to the field.   Data acquisition systems can be complex. Power users can depend on the PC software to configure their scans, but the instrument can be completely configured from the front panel with the intuitive display. Everything from channel and module settings manipulation to channel scan lists to real time graphing can be achieved without a PC.
  UltraAcquire data logging software Free data logging software included for quick and easy data transfer to a PC or complex scan configurations.
Free data logging software included for quick and easy data transfer to a PC or complex scan configurations.   UltraAcquire can control up to 5 mainframes for complete configuration of complex systems. Log and graph data after each scan to a PC over Ethernet or USB. Users can also set limits, alarms, and triggers for advanced system monitoring.

Product Details

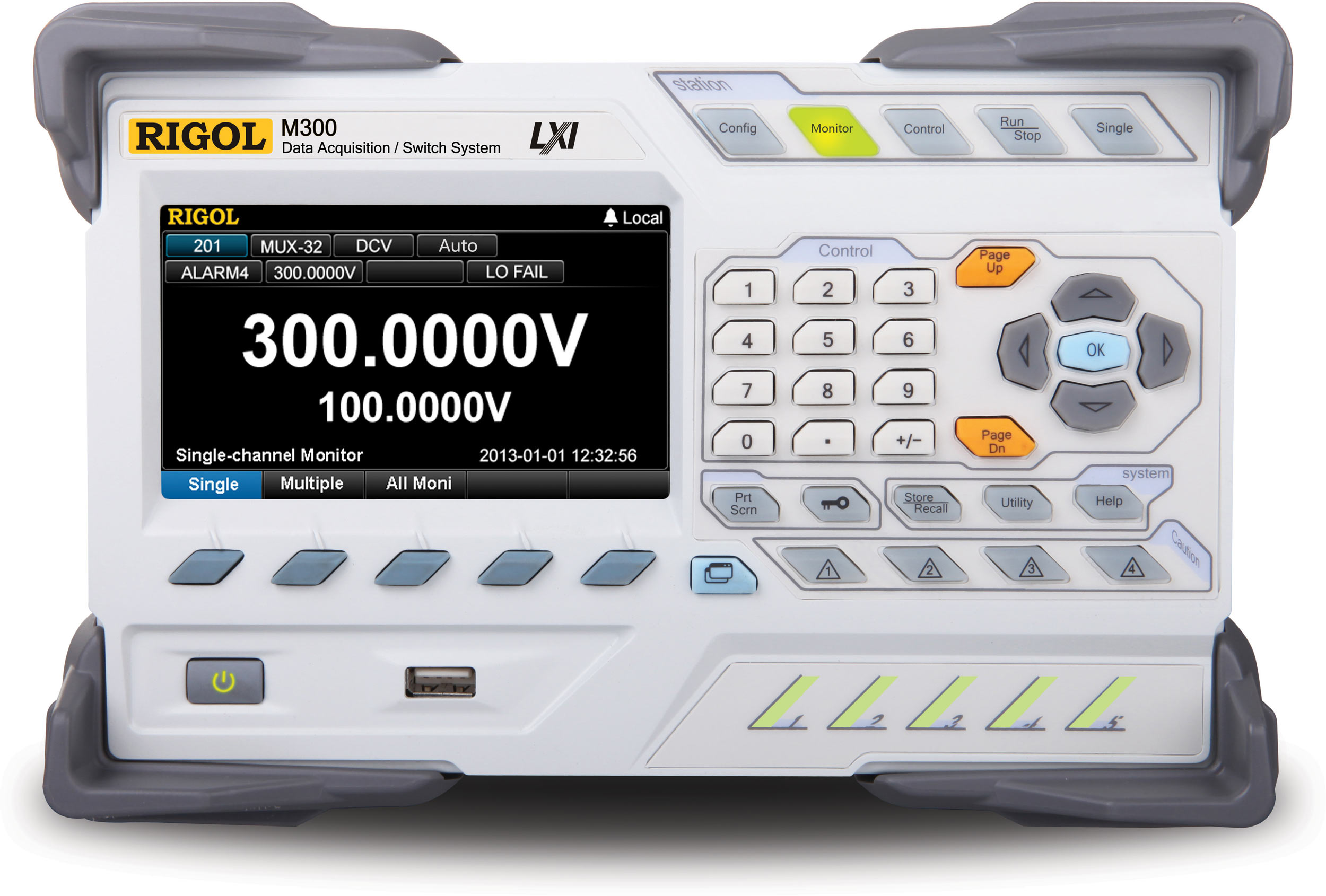

M300 System with Callouts

Specs

Please scroll to the sides when using small displays
Model Number of SlotsIncluded Module(s) Price
M300 5 slotsNA $1,008
M301 5 (DMM uses one of these slots) slotsMC3065 DMM Module $1,413
M302 5 (DMM and MC3120 use one of these slots each) slotsMC3065 DMM and MC3120 Module $1,766

 Interactive Selection Tool

Specifications:

 M300 Specifications
Array ( [0] => Array ( [SolutionNumber] => 00000955 [SolutionName] => M300 User's Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => M300 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-04e1/0/-/-/-/-/file.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000U2q4IAC [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000ECzEIAW [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000ECzEIAW [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:54 [CreatedDate] => 2014-03-28 13:36:23 [SystemModstamp] => 2017-07-18 21:52:55 [lastUpdate] => 2017-07-20 08:15:07 ) [1] => Array ( [SolutionNumber] => 00001134 [SolutionName] => M300 Quick Start Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => M300 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-0567/1/-/-/-/-/M300%20Quick%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000U6gSIAS [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => True [IsPublishedInPublicKb] => True [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:54 [CreatedDate] => 2014-10-27 14:00:27 [SystemModstamp] => 2017-07-18 21:52:55 [lastUpdate] => 2017-07-20 08:15:06 ) [2] => Array ( [SolutionNumber] => 00001156 [SolutionName] => M300 Selection Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => M300 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-0587/1/-/-/-/-/M300%20Selection%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000USWaIAO [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => True [IsPublishedInPublicKb] => True [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:54 [CreatedDate] => 2015-01-13 20:39:08 [SystemModstamp] => 2017-07-18 21:52:54 [lastUpdate] => 2017-07-20 08:15:06 ) ) 3Array ( [0] => Array ( [SolutionNumber] => 00000955 [SolutionName] => M300 User's Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => M300 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-04e1/0/-/-/-/-/file.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000U2q4IAC [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000ECzEIAW [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000ECzEIAW [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:54 [CreatedDate] => 2014-03-28 13:36:23 [SystemModstamp] => 2017-07-18 21:52:55 [lastUpdate] => 2017-07-20 08:15:07 ) [1] => Array ( [SolutionNumber] => 00001134 [SolutionName] => M300 Quick Start Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => M300 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-0567/1/-/-/-/-/M300%20Quick%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000U6gSIAS [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => True [IsPublishedInPublicKb] => True [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:54 [CreatedDate] => 2014-10-27 14:00:27 [SystemModstamp] => 2017-07-18 21:52:55 [lastUpdate] => 2017-07-20 08:15:06 ) [2] => Array ( [SolutionNumber] => 00001156 [SolutionName] => M300 Selection Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => M300 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-0587/1/-/-/-/-/M300%20Selection%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000USWaIAO [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => True [IsPublishedInPublicKb] => True [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:54 [CreatedDate] => 2015-01-13 20:39:08 [SystemModstamp] => 2017-07-18 21:52:54 [lastUpdate] => 2017-07-20 08:15:06 ) ) 3

User's Manual(s)

Programming Manual(s)

Service Manuals

Datasheets

Specifications

Catalogs

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

UltraAcquire

M300 Data Acquisition Software

Instrument Quick Guide

Calibration Certificate

Power Cord

USB Cable

Data Acqusition Software

Ultra Acquire Pro
M300 Configuration Software with advanced data analysis features



$965

Switch Module

MC3132
32 channel differential Multiplexer module for use with M300 DAQ System Mainframe and MC3065 DMM module. Configurable for 2 or 4 wire measurements. The M3TB32 is the mating terminal block for this module.



$477

Switch Module

MC3324
24 channel multiplexer module for use with M300 DAQ System Mainframe and MC3065 DMM module. This card has 20 voltage channels configurable for 2 or 4 wire measurements and 4 current only measurement channels. The M3TB24 is the mating terminal block for this module.



$573

Switch Module

MC3164
64 channel multiplexer module for use with M300 DAQ System Mainframe and MC3065 DMM module. The M3TB64 is the mating terminal block for this module.



$486

Switch Module

MC3416
16 channel actuator module for use with M300 DAQ System Mainframe. The M3TB16 is the mating terminal block for this module.



$415

Switch Module

MC3534
Multifunction module for use with M300 DAQ System Mainframe. It includes 4 DACs, 4 Totalizers, and 32 DIO bits. The M3TB34 is the mating terminal block for this module.



$637

Switch Module

MC3648
Matrix module for use with M300 DAQ System Mainframe. It is a 4x8 2-wire matrix switch. The M3TB48 is the mating terminal block for this module.



$519

Terminal Block

M3TB32
Terminal block accessory for M300 DAQ system modules with model numbers ending in 32.



$74

Terminal Block

M3TB64
Terminal block accessory for M300 DAQ system modules with model numbers ending in 64.



$74

Terminal Block

M3TB24
Terminal block accessory for M300 DAQ system modules with model numbers ending in 24.



$74

Terminal Block

M3TB16
Terminal block accessory for M300 DAQ system modules with model numbers ending in 16.



$74

Terminal Block

M3TB34
Terminal block accessory for M300 DAQ system modules with model numbers ending in 34.



$74

Terminal Block

M3TB48
Terminal block accessory for M300 DAQ system modules with model numbers ending in 48.



$74

Rack Mount Kit

RM-2-M300
Rack Mount for 2 M300 Systems



$315

Rack Mount Kit

RM-1-M300
Rack Mount for 1 M300



$281

Switch Module

MC3120
20 channel differential Multiplexer module for use with M300 DAQ System Mainframe and MC3065 DMM module. Configurable for 2 or 4 wire measurements. The M3TB20 is the mating terminal block for this module.



$387

Terminal Block

M3TB20
Terminal block accessory for M300 DAQ system modules with model numbers ending in 20.



$82

Analog bus Cable

M3A2B
Analog bus to banana jack cable for M300 system mainframe. For direct external connection of DM3065 DMM module to external signal.



$21

GPIB port Reversal

M3GPIBCONNECTOR
GPIB Reverse connection adaptor for M300 mainframe.



$72

data AcqUISITION*
