M300 System
Rigol's M300 Series data acquisition and switch system provides accurate, repeatable measurements with industry leading total system cost optimized for general purpose temperature, resistance, and voltage scanning with a breadth of modules to handle all of your DAQ system requirements. A single mainframe can scan and measure up to 128 fully differential measurements in one instrument. Automatically log data to a USB stick attached to the system or control up to 5 mainframes from a PC with a single instance of the Ultra Acquire software.
Explore the M300 series data acquisition and switching system

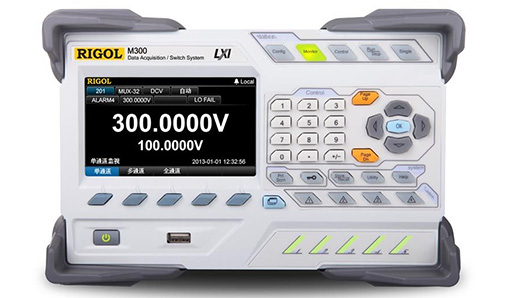

Large screen display & Easy to operate
4.3-inch color LCD screen. The function settings are simple and convenient. No PC is required, and the host can independently perform the collection function.

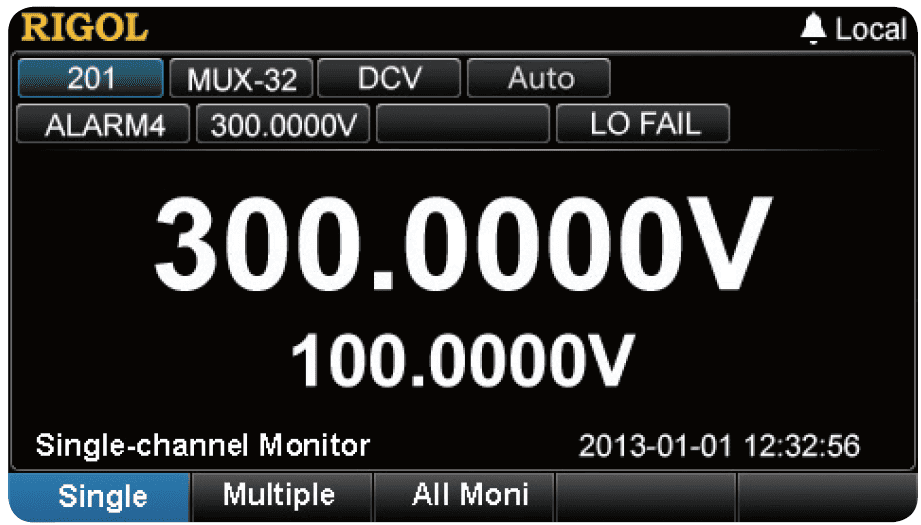

6.5-digit measurement accuracy
The measurement function of the data acquisition system is completed by the 6.5-bit multimeter module, which supports the measurement functions of DCV, DCI, ACV, ACI, 2wr, 4wr, cycle, frequency, temperature (thermocouple, thermistor and RTD) and any sensor

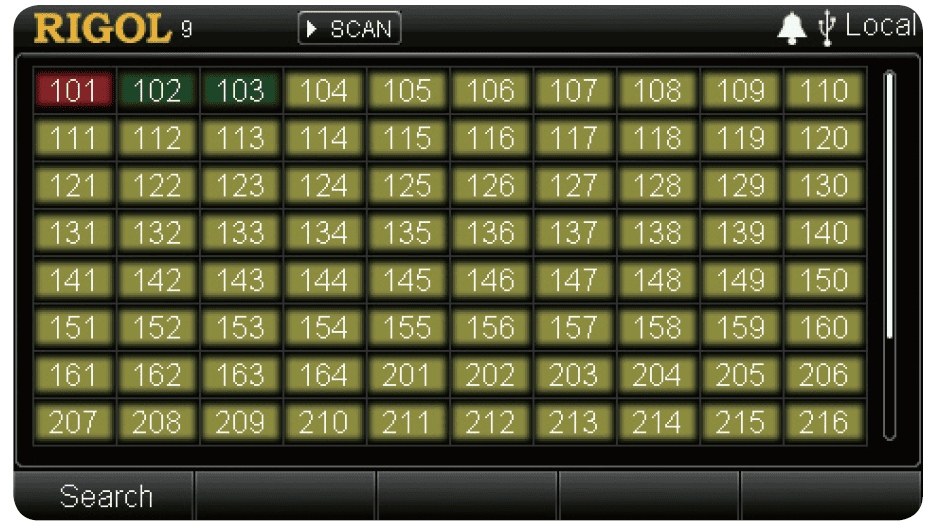

Up to 256 test channels
The M300 host has 5 module slots. One of the slots is generally used for the DMM measurement card, and the other 4 are used for measurement channels. Depending on the selected module, the slots can have up to 64 measurement channels, and each host can handle 256 measurement channels.

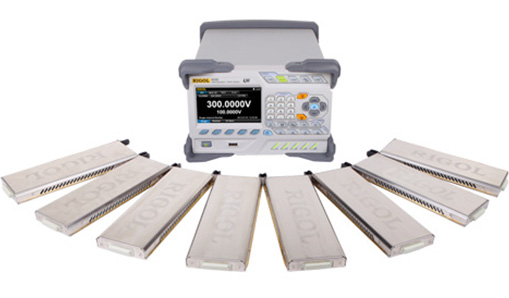

8 types of module cards are available
Supports up to 8 types of module cards, including various multiplexers, actuators, switch matrices, and hybrid test modules

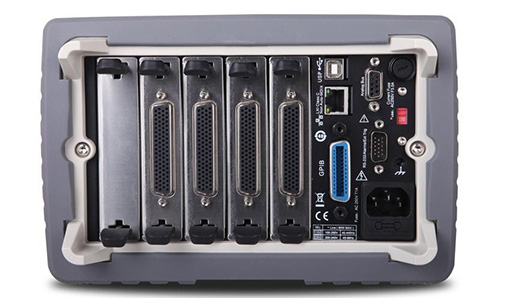

Provide multiple communication interfaces
The standard configuration provides multiple communication interfaces such as USB Host/Device, GPIB, LAN (LXI-C), and RS232.

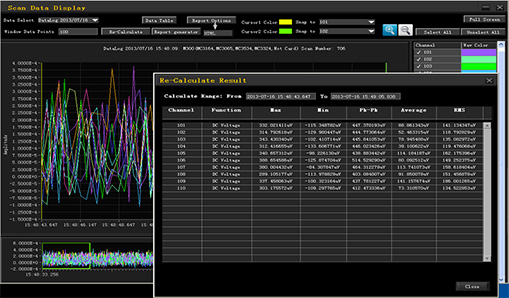

Supporting control analysis software
UltraAcquire can control up to 5 hosts to complete the configuration of complex systems. Record and plot data after each scan of a PC via Ethernet or USB. Users can also set limits, alarms, and triggers for advanced system monitoring. The software offers a variety of data display methods, one-click report generation, and data export functions.
M300 System
Model |
Number of Slots |
Included Module(s) |
Price |
|
|---|---|---|---|---|
| M300 | 5 slots | N/A | $1,008 |
|
| M301 | 5 (DMM uses one of these slots) | MC3065 DMM Module | $1,413 |
|
| M302 | 5 (DMM and MC3120 use one of these slots each) | MC3065 DMM and MC3120 Module | $1,766 |
|
M300 Programming Manual
|
|
M300 Datasheet
|
| How do I install UltraSigma Compatible software? | You will need to have Ultra Sigma installed first.
Contact Rigol for more information.
Ultra IQ provides modulation waveform editing for the DSG3000 series of RF sources.
Ultra Power provides instrument control and data collection for the Rigol DP series of power supplies.
Ultra Signal Studio is a legacy software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG4000 and DG5000 arbitrary waveform generators.
Ultra Station is a software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG1000Z, DG4000 and DG5000 arbitrary waveform generators.
Ultra Spectrum provides instrument control and spectrum analysis for Rigol DSA1000, 1000A, and 800 series Digital Spectrum Analyzers. |
| How do I install UltraSigma? | UltraSigma is a software installation that provides basic communications between a computer and an instrument using VISA.
It is also used to contain instrument specific software like UltraSpectrum for use with Rigol Spectrum Analyzers, Ultra Signal Studio for Arbitrary Waveform Generators, and Ultra Power for Power Supplies. |
 UltraAcquire Help File | |
| User's Guide for UltraSigma Software | UltraSigma is a VISA based communication and shell program that eases communication and remote control of instrumentation.
We have built a short user's guide to familiarize user's with the features of UltraSigma. |
| UltraAcquire Base software | Base configuration and data collection software for the Rigol M300 data acquisition/switch system. |
| UltraSigma Instrument Connectivity Driver | Software for Communicating with instruments over VISA. UltraSigma is also a container and gateway for software such as Ultra Signal Studio, Ultra Spectrum, Ultra Power, and more. |
| Ultra Acquire Pro | M300 Configuration Software with advanced data analysis features |
Analog bus Cable
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
M3A2B
|
Analog bus to banana jack cable for M300 system mainframe. For direct external connection of DM3065 DMM module to external signal. |
$21
|
|
|
GPIB port Reversal
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
M3GPIBCONNECTOR
|
GPIB Reverse connection adaptor for M300 mainframe. |
$72
|
|
|
Terminal Block
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
M3TB16
|
Terminal block accessory for M300 DAQ system modules with model numbers ending in 16. |
$74
|
|
|
|
M3TB20
|
Terminal block accessory for M300 DAQ system modules with model numbers ending in 20. |
$82
|
|
|
|
M3TB24
|
Terminal block accessory for M300 DAQ system modules with model numbers ending in 24. |
$74
|
|
|
|
M3TB32T
|
Terminal Box for MC3132(Dedicated to temperature test) |
$76
|
|
|
|
M3TB34
|
Terminal block accessory for M300 DAQ system modules with model numbers ending in 34. |
$74
|
|
|
|
M3TB48
|
Terminal block accessory for M300 DAQ system modules with model numbers ending in 48. |
$74
|
|
|
|
M3TB64
|
Terminal block accessory for M300 DAQ system modules with model numbers ending in 64. |
$74
|
|
|
|
M3TB32
|
Terminal block accessory for M300 DAQ system modules with model numbers ending in 32. |
$74
|
|
|
DMM Module
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
MC3065
|
DMM Module for M300 DAQ System. Already included in M301 and M302. |
$558
|
|
|
Switch Module
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
MC3324
|
24 channel multiplexer module for use with M300 DAQ System Mainframe and MC3065 DMM module. This card has 20 voltage channels configurable for 2 or 4 wire measurements and 4 current only measurement channels. The M3TB24 is the mating terminal block for this module. |
$573
|
|
|
MC3534
|
Multifunction module for use with M300 DAQ System Mainframe. It includes 4 DACs, 4 Totalizers, and 32 DIO bits. The M3TB34 is the mating terminal block for this module. |
$637
|
|
|
MC3132
|
32 channel differential Multiplexer module for use with M300 DAQ System Mainframe and MC3065 DMM module. Configurable for 2 or 4 wire measurements. The M3TB32 is the mating terminal block for this module. |
$477
|
|
|
MC3120
|
20 channel differential Multiplexer module for use with M300 DAQ System Mainframe and MC3065 DMM module. Configurable for 2 or 4 wire measurements. The M3TB20 is the mating terminal block for this module. |
$387
|
|
|
|
MC3164
|
64 channel multiplexer module for use with M300 DAQ System Mainframe and MC3065 DMM module. The M3TB64 is the mating terminal block for this module. |
$486
|
|
|
MC3416
|
16 channel actuator module for use with M300 DAQ System Mainframe. The M3TB16 is the mating terminal block for this module. |
$415
|
|
|
MC3648
|
Matrix module for use with M300 DAQ System Mainframe. It is a 4x8 2-wire matrix switch. The M3TB48 is the mating terminal block for this module. |
$519
|
|
|
