DL3000 Series   |

Precision DC Electronic Loads

DL3000
The DL3000 is a cost-effective programmable DC electronic load with performance specifications that rival any instrument in its class. With a user-friendly interface including graphical charting, the DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. Test power systems and batteries with configurable static, transient, and advanced application modes.
SpecificationsDL3000 Datasheet
Product Feature Customer Benefit
  Dynamic Load Performance and Visualization Learn more with flexible load conditions and on screen waveform graphing
Learn more with flexible load conditions and on screen waveform graphing   View the actual load performance on the front panel of the DL3000 in a static or transient mode. Optimize tests with customizable slew rates and frequency adjustments in Power, Voltage, Current, or Resistance modes.
  Up to 5 A/us slew rate and 30 kHz dynamic loading Test further for performance and reliability with the fastest frequency and slew rate in its class
Test further for performance and reliability with the fastest frequency and slew rate in its class   The advanced DL3000A models provide up to 5 A/us and 30 kHz frequency settings for transient mode testing. Emulate more dynamic real world power demands with this flexibility. That ultimately results in higher reliability and known behavior for batteries and power systems.
  High resolution and accuracy on voltage and current load conditions Test confidently with impressive voltage and current accuracy, noise, and resolution
Test confidently with impressive voltage and current accuracy, noise, and resolution   DL3000 Series provide specifications and capabilities that make measuring your power system under different conditions quick and easy. Monitor static conditions from the front panel or software interface and capture transient events with the built in waveform capture or by using an oscilloscope connected to the rear panel pulse shape outputs.
  3 Built in application setups for battery testing or Current or Power optimization Quickly characterize your device with automated battery and power step tests without any programming
Quickly characterize your device with automated battery and power step tests without any programming   The key to getting the most out of an electronic load is making it easy to configure for the tests you need to run. With specialized setups to conduct battery drain testing while measuring service time and capacity as well as sweeps to identify the most efficient test conditions for batteries and power supplies.
  UltraLoad Software for remote operation and monitoring Full control and log results from a PC over USB or Ethernet for efficiency and ease of use
Full control and log results from a PC over USB or Ethernet for efficiency and ease of use   Easily reconfigure or investigate the setup of the DL3000 remotely over USB or Ethernet with the free UltraLoad software. Record captured data over time and save long term test results to characterize and better understand your power system performance.

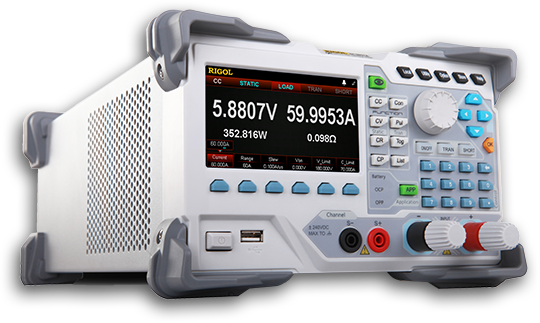

Product View

DL3000

IoT Video Series

Interested in Debugging Connected Electronics? Register and explore our IoT Video Series.

IoT Videos
Purchasing Info
Buy Now Clearance Stock Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (440) 232-4488

Read about our 3 Year Warranty
Product Info
 DL3000 Datasheet  DL3000 Series Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model Total PowerMax VoltageMax CurrentChannels Price
DL3021 200 Watts150 Volts40 Amps1 channel(s) $499 In Stock
DL3021A 200 Watts150 Volts40 Amps1 channel(s) $639 In Stock
DL3031 350 Watts150 Volts60 Amps1 channel(s) $999 In Stock
DL3031A 350 Watts150 Volts60 Amps1 channel(s) $1,199
 Compare Product Families

Specifications:

 DL3000 Series Specs

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 DL3000 load family latest firmware

Drivers

Software

 S1501 UltraLoad Software UltraSigma Instrument Connectivity Driver
Please scroll to the sides when using small displays

Load Cable

CB-60A-780MM
Load input 60 A cable. Cable is 30 inches long.



$39

Slew Rate

SLEWRATE-DL3
Standard on DL3000A series instruments.



$99

High Resolution

HIRES-DL3
Standard on DL3000A series instruments.



$99

Terminal Shield

DL-02
Terminal Shield for covering front inputs of DL3000 Series Loads. Clear Plastic.



$19

Please scroll to the sides when using small displays
Calibration Certificate

DL-02

Terminal Shield for covering front inputs of DL3000 Series Loads
Power Cord

USB Cable

Please scroll to the sides when using small displays

Slew Rate

SLEWRATE-DL3
Standard on DL3000A series instruments.



$99

High Resolution

HIRES-DL3
Standard on DL3000A series instruments.



$99

Digital I/O

DIGITALIO-DL3
Standard on DL3000A series instruments.



$99

High Frequency

FREQ-DL3
Standard on DL3000A series instruments. Updates DL3000 Instruments to 30 kHz capability.



$99

Ethernet

LAN-DL3
Standard on DL3000A series instruments.



$99

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Load Cable

CB-60A-780MM
Load input 60 A cable. Cable is 30 inches long.



$39

Terminal Shield

DL-02
Terminal Shield for covering front inputs of DL3000 Series Loads. Clear Plastic.



$19

Load Cable

CB-20A-780MM
Load input 20 A cable. Cable is 30 inches long.



$19

Load Cable

CB-40A-780MM
Load input 40 A cable. Cable is 30 inches long.



$29

Sense Cable

CB-SENSE
Sense Cable for DL3000 Sense inputs



$19

Rack Mount Kit

RM-1-DP800

Rack Mounting Kit for quantity 1 DP800 Power Supplies or 1 DL3000 Load. May be different than image. Rack kits are different for each instrument.



$137

Rack Mount Kit

RM-2-DP800

Rack Mounting Kit for quantity 2 DP800 Power Supplies or 2 DL3000 Loads. May be different than image. Rack kits are different for each instrument.



$122

GPIB Adaptor

USB-GPIB-L
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly. "-L' Model for DL3000, DG800, and DG900 series.



$346
