DP700 Series   |  Power Supplies

DP700
RIGOL's DP700 Series power supply is an affordable, programmable linear DC power supply for benchtop applications. With quality performance specifications, reliable output, and a small footprint, the DP700 Series provides incredible benchtop value. The DP700s also support options including timing output, trigger function, and high resolution.
SpecificationsDatasheet
Product Feature Customer Benefit
Low ripple and noise: DP711: <500 μVrms/3 mVpp; <2 mArms DP712: <500 μVrms/4 mVpp; <2 mArms Less noise delivered to your device means easier environment for testing and debugging functions and PreCompliance
  Fast transient response time: <50 us Fast analog edges introduces fewer variables into your testing during startup and shutdown procedures
Fast analog edges introduces fewer variables into your testing during startup and shutdown procedures   The transient response time is less than 50 μs. When the transient change occurs to the load current, the output voltage can be quickly restored to the set value, ensuring the output quality.
  OVP/OCP/OTP protection Protect your investment in your devices with fast acting protection for unwanted voltage and current conditions
Protect your investment in your devices with fast acting protection for unwanted voltage and current conditions   You can set thresholds for OVP and OCP values. If overvoltage or overcurrent occurs, the power supply shuts down the output automatically, and then a message prompt is displayed.
Built in V, A, W measurements Live front panel feedback of voltage, current, and power means more confidence as you are running tests. Data available for analysis of issues that need another look

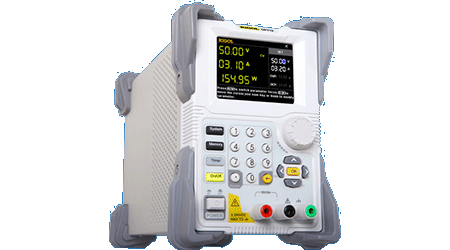

Product View

DP700
Purchasing Info
Buy Now Request Quote Find a Distributor
Technical Support

Search our Support Library

Look though our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 877-4-RIGOL-1

Read about our 3 Year Warranty
Product Info
 DP700 Data Sheet  DP700 Specs

Specs

Please scroll to the sides when using small displays
Model ChannelsTotal PowerMax VoltageMax Current Price
DP711 1 channel(s)150 Watts30 Volts5 Amps $299
DP712 1 channel(s)150 Watts50 Volts3 Amps $299
 Interactive Selection Tool

Specifications:

 DP700 Specs
Array ( [0] => Array ( [SolutionNumber] => 00001370 [SolutionName] => DP700 User's Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => DP700 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-06b3/1/-/-/-/-/DP700%20User%27s%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kAUUIA2 [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:57 [CreatedDate] => 2016-05-13 14:45:18 [SystemModstamp] => 2017-07-18 21:52:57 [lastUpdate] => 2017-07-20 08:15:09 ) [1] => Array ( [SolutionNumber] => 00001371 [SolutionName] => DP700 Quick Start Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => DP700 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-06b4/1/-/-/-/-/DP700%20Quick%20Start%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kAUZIA2 [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:57 [CreatedDate] => 2016-05-13 14:45:45 [SystemModstamp] => 2017-07-18 21:52:57 [lastUpdate] => 2017-07-20 08:15:09 ) ) 2Array ( [0] => Array ( [SolutionNumber] => 00001370 [SolutionName] => DP700 User's Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => DP700 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-06b3/1/-/-/-/-/DP700%20User%27s%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kAUUIA2 [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:57 [CreatedDate] => 2016-05-13 14:45:18 [SystemModstamp] => 2017-07-18 21:52:57 [lastUpdate] => 2017-07-20 08:15:09 ) [1] => Array ( [SolutionNumber] => 00001371 [SolutionName] => DP700 Quick Start Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => DP700 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-06b4/1/-/-/-/-/DP700%20Quick%20Start%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kAUZIA2 [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:57 [CreatedDate] => 2016-05-13 14:45:45 [SystemModstamp] => 2017-07-18 21:52:57 [lastUpdate] => 2017-07-20 08:15:09 ) ) 2

User's Manual(s)

 DP700 User's Guide DP700 Quick Start Guide

Programming Manual(s)

 DP700 Programming Guide

Service Manuals

Datasheets

 DP700 Data Sheet

Specifications

 DP700 Specs

Catalogs

 Full Line Catalog

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

 UltraSigma Instrument Connectivity Driver UltraPower

External Triggering

TRIGGER-DP700
External Trigger In and Internal Trigger out option for the DP700 power supplies



$59

High Resolution

HIRES-DP700
1mV / 1 mA Resolution option for the DP700 Series power supplies



$59

Sweep Timing

TIMER-DP700
Programmable Sweep Timer option for the DP700 Family



$59

Rack Mount Kit

RM-1-DP700
Rack Mount Kit for 1 unit of DP700 power supply



$90

Rack Mount Kit

RM-2-DP700
Rack Mount Kit for 2 units of DP700 power supply



$83

Rack Mount Kit

RM-3-DP700
Rack Mount Kit for 3 units of DP700 power supply



$83
