1000Z Series   |  Mixed Signal & Digital Oscilloscopes

1000Z

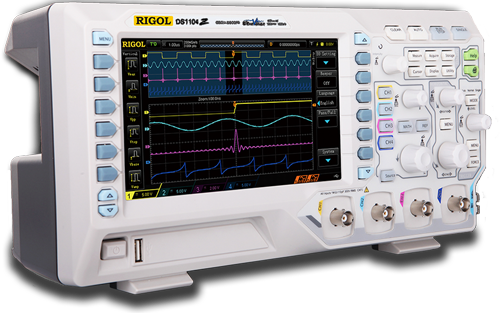

The 1000Z Series is the economic level Digital Oscilloscope platform from Rigol. It offers unprecedented value in customer applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The 1000Z Series 4 channel oscilloscopes come in 50, 70, or 100 MHz versions with a 7 inch display and Rigol's UltraVision technology. The MSO models include a 16 bit digital input port for mixed signal applications. The "-S" models include a 2 channel integrated waveform generator and the PLUS models are upgradable to MSO versions with the purchase of the RPL1116 digital lead kit. Add the optional analysis, decoding, deep memory, or other configured options for a powerful 4 channel scope at an exceptional price.
Free Options Bundle BND-MSO/DS1000Z with any new 1000Z Oscilloscope includes serial decode, deep memory, record mode, and triggering for a limited time. ($350 value)
Product Feature Customer Benefit
  UltraVision Technology Advanced display and analysis capabilities combine with deep memory and high waveform update rate in RIGOL's UltraVision oscilloscope technology
Advanced display and analysis capabilities combine with deep memory and high waveform update rate in RIGOL's UltraVision oscilloscope technology   The ability to easily move between long record lengths, fast capture, a variety of persistence modes, and onboard waveform analysis makes RIGOL's core oscilloscope technology an important capability for engineers from maker projects to large scale R&D.
  16 Digital Channels (MSO Models) Time correlated views between analog and digital channel speeds debug of embedded designs
Time correlated views between analog and digital channel speeds debug of embedded designs   Mixed Signal Oscilloscopes (MSOs) allow users to not only look at the analog behavior of some channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time. The 1000Z Series MSOs can monitor 2 analog channels with 16 digital channels or 3 analog channels and 8 digital channels.
  Integrated 2 Channel full function 25MHz generator Debug and emulate signals all in one instrument
Debug and emulate signals all in one instrument   Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the "-S" models adds value and capability to the bench for a variety of applications.
  Serial Triggering and Analysis Options Speeds analysis and debug of your I2C, RS232 and SPI designs
Speeds analysis and debug of your I2C, RS232 and SPI designs   Serial Trigger allows the user to trigger the oscilloscope based on a specific pattern or word found in a serial data stream. Serial Decode allows the user to convert the waveform into a decoded readable format which allows for quick determination of problems on a serial bus.

Product Details

1000Z with Callouts

Specs

Please scroll to the sides when using small displays
Model BandwidthAnalog ChannelsDigital ChannelsIncluded Source Price
DS1054Z 50 MHz4 No $349
DS1074Z 70 MHz4 No $469
DS1074Z Plus 70 MHz4 Upgradable No $519
DS1104Z 100 MHz4 No $619
DS1074Z-S 70 MHz4 Yes $659
DS1104Z Plus 100 MHz4 Upgradable No $669
MSO1074Z 70 MHz4 16 No $699
DS1074Z-S Plus 70 MHz4 Upgradable Yes $699
MSO1104Z 100 MHz4 16 No $799
DS1104Z-S 100 MHz4 Yes $809
DS1104Z-S Plus 100 MHz4 Upgradable Yes $869
MSO1074Z-S 70 MHz4 16 Yes $899
MSO1104Z-S 100 MHz4 16 Yes $999

 Interactive Selection Tool

Specifications:

 MSO/DS1000Z Specs
