7000 Series   |  Mixed Signal Oscilloscopes

7000
The 7000 Series Oscilloscopes combines best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 100 to 500 MHz models each with 4 analog channels, the 7000 Series brings innovative analysis and visualization capabilities to embedded design, power analysis, serial decode, and RF applications. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements. 7000 Series Oscilloscopes provide unprecedented value and innovation in our mainstream embedded platform.
Product Feature Customer Benefit
  10G Sa/s Max Sample Rate Visualize fine resolution and signal detail
Visualize fine resolution and signal detail   10 GSamples per second makes it possible to see short and transient signal artifacts on the highest speed embedded signals. Oversample 500 MHz signals at 20X to highlight small deviations or capture up to 200 milliseconds of data with 5X oversampling on 500 MHz for ultimate signal analysis flexibility.
  Long Record Length (100M std/500M opt) Find elusive problems in complex digital streams with long acquisitions at high sample rates
Find elusive problems in complex digital streams with long  acquisitions at high sample rates   The 7000 provides up to 500 Mpt record lengths while making it easier than ever to utilize these samples. The 7000 provides complete search navigation and wave recording capabilities to harness the value of our deeper memory.
  7 instruments in 1 Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.
Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.   The MSO7000 Series include all 7 instruments in 1. Solve any of your embedded design challenges whether you need to emulate analog or digital communications, capture high speed signals, verify levels, decode serial communication, monitor parallel buses, or count pulses the MSO7000 makes it possible to quickly and easily move between instrument capabilities all from 1 integrated interface.
  600,000 wfms/s Waveform Capture rate Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.   Faster capture times reduce the time it takes to visualize these transient effects. Most of the scope’s capabilities can be used without sacrificing waveform capture rate performance. This enables detailed analysis with high signal fidelity.
  Intensity Color graded display Observe and highlight signal anomalies even when obscured by other signals
Observe and highlight signal anomalies even when obscured by other signals   With RIGOL’s advanced color graded display engineers can visualize signal anomalies in an intensity color grading even when overlapping with other signals artifacts in the current trigger mode.
  Protocol Analysis for today’s common serial communication buses Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs
Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs   The 7000 Series provides decoding on up to 4 serial buses simultaneously. The 7000 provides the option of viewing traffic in a comprehensive event table. Choose from our expanded bus list including RS232/UART, I2C, SPI, LIN, CAN, FlexRay, I2S, and MIL-STD-1553. Add to that search and mark capabilities for the most common serial buses to debug systems quickly and easily.
  Flexible user interface combining touch, mouse, knob/button, web, and remote control Interact with the instrument in the way that works best for you
Interact with the instrument in the way that works best for you   With a 10.1 inch touchscreen, full set of knobs and buttons, and mouse support the 7000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.
  Enhanced Color FFT Capture and analyze in the frequency domain using the enhanced color FFT to visualize transient high-speed signals
Capture and analyze in the frequency domain using the enhanced color FFT to visualize transient high-speed signals   The FFT capability on the 7000 utilizes up to 1 million points for fine resolution. The 7000 Series advanced user controls makes it easier to find signals of interest in the frequency domain. The color FFT function provides a probability colorization that highlights transient and hopping RF signals much like a real-time spectrum analyzer.

Product Details

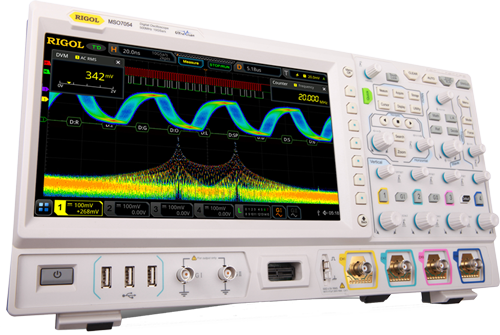

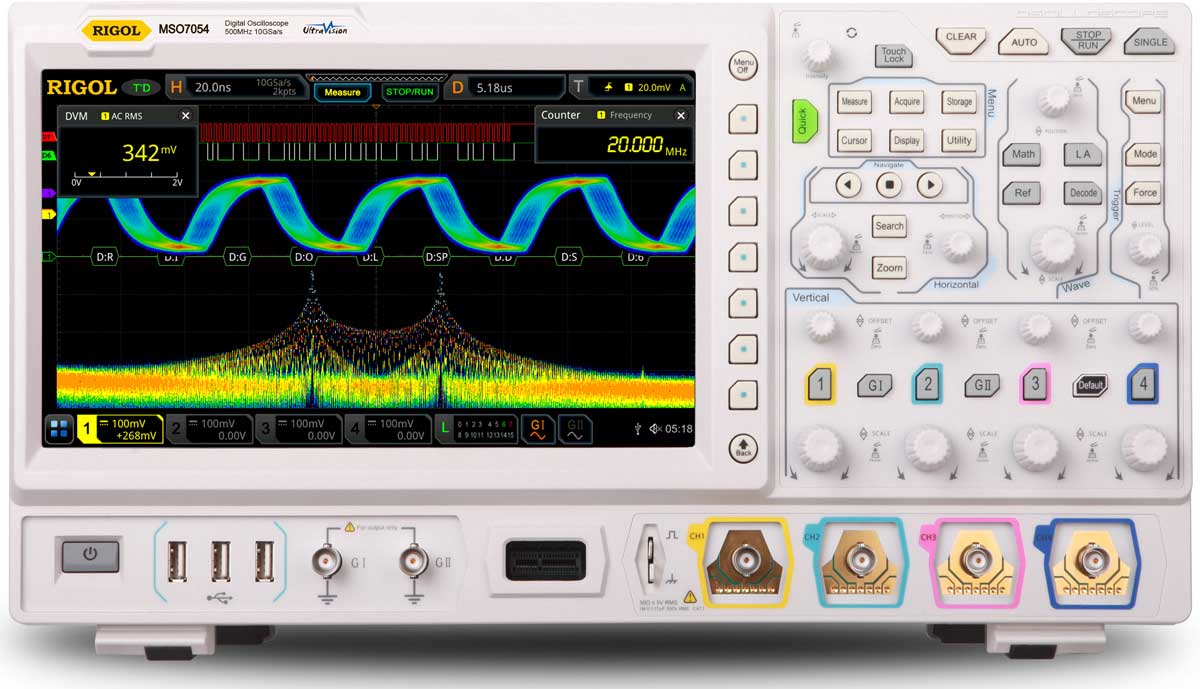

7000 with Callouts

Specs

Please scroll to the sides when using small displays
Model BandwidthAnalog ChannelsDigital ChannelsReal-time Sample RateMax Memory DepthWaveform Capture Rate Price
DS7014 100 MHz4 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $2,699 In Stock
DS7024 200 MHz4 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $3,699 In Stock
DS7034 350 MHz4 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $5,099 In Stock
DS7054 500 MHz4 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $6,399 In Stock
MSO7014 100 MHz4 16 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $3,499 In Stock
MSO7024 200 MHz4 16 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $4,499 In Stock
MSO7034 350 MHz4 16 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $5,699 In Stock
MSO7054 500 MHz4 16 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $6,999 In Stock

 Compare Product Families
Please scroll to the sides when using small displays

Deep Memory

DS7000-2RL
7000 Series extend maximum memory depth up to 250 Mpts



$899

Active Probe

RP7080

Active, differential, 800 MHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$2,099

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak



$1,791

Please scroll to the sides when using small displays
4 Passive Probes

4 RP3500A 500 MHz Passive Probes for all models

FacePlate

Instrument Display Cover

RPL2316

Logic Probe for MSO2000A, MSO4000, and MSO7000 Series Oscilloscopes. Included with MSO models only. Includes cable, leads and grabber clips

Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

Deep Memory

DS7000-2RL
7000 Series extend maximum memory depth up to 250 Mpts



$899

Deep Memory

DS7000-5RL
7000 Series extend maximum memory depth up to 500 Mpts



$1,399

Serial Trigger & Decode

DS7000-AERO
7000 Series MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)



$899

Serial Trigger & Decode

DS7000-AUDIO
7000 Series Audio serial bus trigger and analysis (I2S)



$899

Serial Trigger & Decode

DS7000-AUTO
7000 Series Auto serial bus trigger and analysis (CAN, LIN)



$899

Option Bundle

DS7000-BND
7000 Series Function and application bundle option including PWR, AWG, and all Serial Decode options. AWG option only works on MSO models.



$1,999

Bandwidth Upgrade

DS7000-BW1T2
7000 Series Bandwidth upgrades from 100 MHz to 200 MHz



$1,039

Bandwidth Upgrade

DS7000-BW1T3
7000 Series Bandwidth upgrades from 100 MHz to 350 MHz



$2,499

Bandwidth Upgrade

DS7000-BW1T5
7000 Series Bandwidth upgrades from 100 MHz to 500 MHz



$3,799

Bandwidth Upgrade

DS7000-BW2T3
7000 Series Bandwidth upgrades from 200 MHz to 350 MHz



$1,499

Bandwidth Upgrade

DS7000-BW2T5
7000 Series Bandwidth upgrades from 200 MHz to 500 MHz



$2,799

Bandwidth Upgrade

DS7000-BW3T5
7000 Series Bandwidth upgrades from 350 MHz to 500 MHz



$1,399

Serial Trigger & Decode

DS7000-COMP
7000 Series PC serial bus trigger and analysis (RS232/UART)



$899

Serial Trigger & Decode

DS7000-EMBD
7000 Series Embedded serial bus trigger and analysis (I2C, SPI)



$899

Serial Trigger & Decode

DS7000-FLEX
7000 Series FlexRay serial bus trigger and analysis (FlexRay)



$899

Power Analysis

DS7000-PWR
7000 Series Built-in power analysis Ripple and Power Quality measurements



$899

Waveform Generators

MSO7000-AWG
Dual-channel 25 MHz Arbitrary Waveform Generator (only for MSO7000 models)



$559

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Active Probe

RP7080

Active, differential, 800 MHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$2,099

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak



$1,791

Demo Board

DK-DS6000
Demonstration signal board for RIGOL Oscilloscopes



$231

Near Field Probe Kit

NFP-3
Near Field Probe Kit



$499

Current Probe

PCA1030

50 MHz, 30 A Current Probe for 7000, 8000, or DHO4000 Series Oscilloscopes



$4,890

Current Probe

PCA1150

10 MHz, 300 A Current Probe for 7000, 8000, or DHO4000 Series Oscilloscopes



$5,890

Current Probe

PCA2030

100 MHz, 30 A Current Probe for 7000, 8000, or DHO4000 Series Oscilloscopes



$6,390

Passive Probe

PVP3150
10x 1x selectable passive probe with 10x bandwidth of 150 MHz and 1x bandwidth of 20 MHz



$35

Rack Mount Kit

RM6041
Rack Mounting Kit for the DS/MSO7000, MSO8000, RSA3000, and RSA5000 Series Instruments



$299

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$473

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp



$683

High Voltage Probe

RP1050H
High Voltage 15KV (1000:1), 50MHz Passive Probe. AC:Pulse = 30KVpp AC:Sine= 10KVrms



$999

Passive Probe

RP3500A
500 MHz Passive Probe



$231

Passive Probe

RP5600A
600 MHz Bandwidth 10:1 Passive Probe Kit (these ship standard with DS6000 Series Oscilloscopes)



$457

Passive Probe

RP6150A
1.5GHz Passive Probe. Probe may be different than image indicates.



$342

Active Probe

RP7080S

Active single-ended, 800 MHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$1,049

Active Probe

RP7150

1.5 GHz Bandwidth Active Probe Kit option for 6000, 7000, and 8000 Series Oscilloscopes



$4,736

Active Probe

RP7150S

Active single-ended,1.5GHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$2,520

Power Analysis Jig

RPA246

Power analysis phase difference correction jig




$59

Digital Probe Kit

RPL2316
Logic Probe for MSO4000 and MSO7000 Series Oscilloscopes. Included with MSO models only. Includes cable, leads and grabber clips



$399

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$346

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$19

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$20

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe




$799

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe




$999

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$1,590

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$1,560

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$867

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$3,408

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$4,909

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$4,332

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$5,490

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$524

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,038

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$788

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$243
