DS8000-R Series   |  Digital Oscilloscopes

DS8000-R
The DS8000-R Series Oscilloscopes combine best in class sampling and memory depth with a high density form factor enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 350 MHz, 1 GHz, and 2 GHz models each with 4 analog channels the DS8000 Series brings RIGOL’s UltraVision II performance to the high channel count, research, and automation applications. Built for high density, the DS8000-R ships with 1 unit and 2 unit rack mounts included and does not include any probes. The DS8000-R includes all of the analog analysis capabilities of the MSO8000 including Jitter and Real-time Eye Analysis (at 1 or 2 GHz), zone triggering, 6 instruments in one, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements. To request more information or to discuss a system configuration for your application please contact us.
Product Feature Customer Benefit
  10G Sa/s Max Sample Rate Visualize fine resolution and signal detail
Visualize fine resolution and signal detail   10 GSamples per second makes it possible to see short and transient signal artifacts on the highest speed embedded signals. Capture signals up to 2 GHz with 5X oversampling on 1 channel providing high speed signal detail ideal for signal fidelity analysis including jitter and eye analysis on digital systems.
  High Density, High Channel Count Capture and analyze hundreds of high speed signals simultaneously with a configured system specific for your application
Capture and analyze hundreds of high speed signals simultaneously with a configured system specific for your application

The DS8000-R Oscilloscopes come with all the hardware to rack mount individually or side by side creating a high density 8, 2 GHz channels per 1U of 19" rack space. With additional synchronization modules, large systems can be built while minimizing jitter and timing offset between instruments or channels. This provides incredible customization and value in systems requiring high channel, high speed synchronous sampling.

  500 MPt Useful Long Record Length Find elusive problems in complex digital streams with long acquisitions at high sample rates
Find elusive problems in complex digital streams with long  acquisitions at high sample rates

The DS8000-R provides up to 500 Mpt record lengths while making it easier than ever to utilize these samples. The DS8000-R provides complete search navigation and wave recording capabilities to harness the value of our deeper memory.

  Jitter & Real-Time Eye Diagram Analysis Evaluate signal fidelity with analysis tools that previously too expensive including Jitter and Real-Time Eye. Visualize subtle timing issues that have gone unnoticed in a high speed design.
Evaluate signal fidelity with analysis tools that previously too expensive including Jitter and Real-Time Eye. Visualize subtle timing issues that have gone unnoticed in a high speed design.

The DS8000-R Series with the DS8000-R-JITTER option enables Jitter and Real-Time Eye analysis. Debug subtle timing effects in your high speed clock and digital data lines by visualizing error sources with the eye diagram, histogram, and jitter trend. Combine these visualization tools with direct measurements of the most common jitter and eye parameters.

  600,000 wfms/s Waveform Capture rate Minimize scope “dead time” between trigger events and increases observations of random and sporadic events.
Minimize scope “dead time” between trigger events and increases observations of random and sporadic events.   Faster capture times reduce the time it takes to visualize these transient effects. Most of the scope’s capabilities can be used without sacrificing waveform capture rate performance. This enables detailed analysis with high signal fidelity.
  Protocol Analysis for today’s common serial communication buses Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs
Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs

The DS8000-R Series provides decoding on up to 4 serial buses simultaneously. The DS8000-R provides the option of viewing traffic in a comprehensive event table. Choose from our expanded bus list including RS232/UART, I2C, SPI, LIN, CAN, FlexRay, I2S, and MIL-STD-1553. Add to that search and mark capabilities for the most common serial buses to debug systems quickly and easily.

  Enhanced Color FFT Capture and analyze in the frequency domain using the enhanced color FFT to visualize transient high-speed signals
Capture and analyze in the frequency domain using the enhanced color FFT to visualize transient high-speed signals

The FFT capability on the DS8000-R utilizes up to 1 million points for fine resolution. The DS8000-R Series advanced user controls makes it easier to find signals of interest in the frequency domain. The color FFT function provides a probability colorization that highlights transient and hopping RF signals much like a real-time spectrum analyzer.

Product View

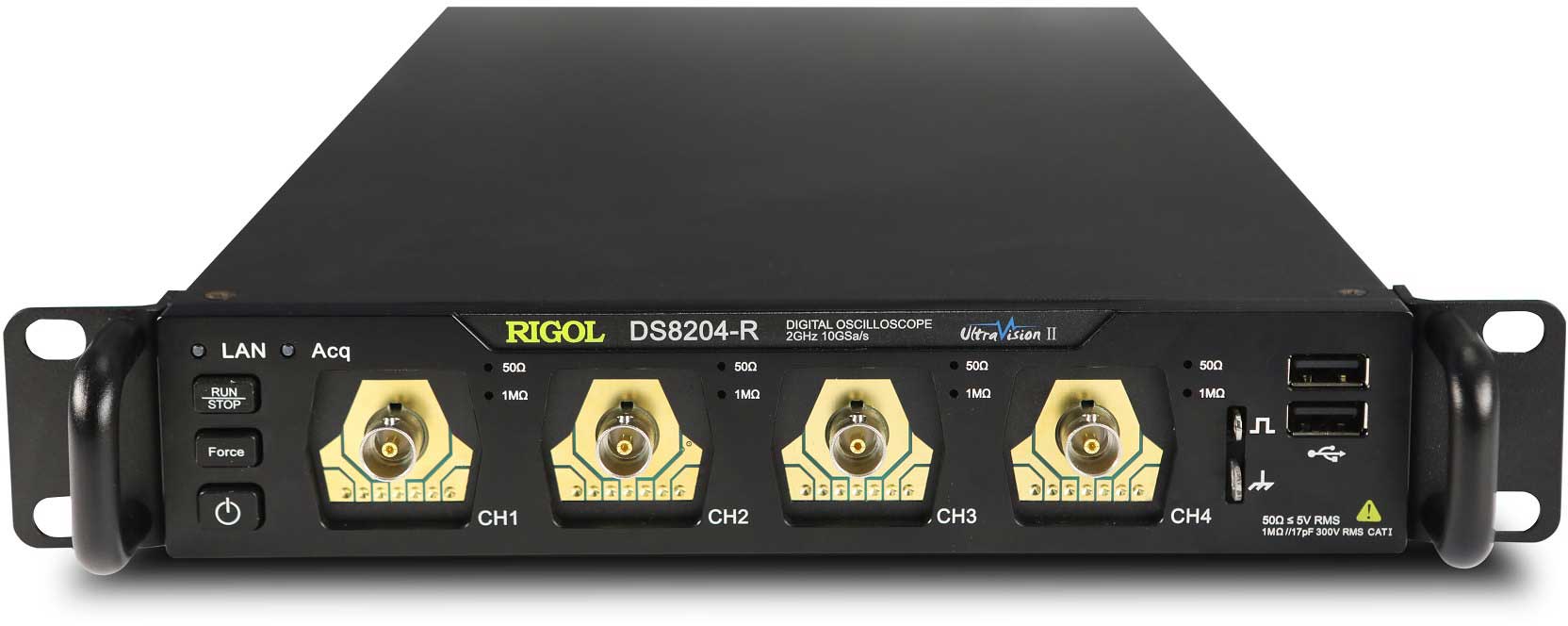

DS8000-R

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsBandwidthReal-time Sample RateMax Memory DepthWaveform Capture Rate Price
DS8034-R 4 350 MHz5 GSa/s500 Mpts600,000 wfms/s $3,499 In Stock
DS8104-R 4 1 GHz10 GSa/s500 Mpts600,000 wfms/s $9,999
DS8204-R 4 2 GHz10 GSa/s500 Mpts600,000 wfms/s $13,999 In Stock

 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

Please scroll to the sides when using small displays

Option Bundle

DS8000-R-BND

Application Bundle including all the serial protocol analysis software, Power Analysis, Waveform Generator, and Jitter/Real time Eye options for the DS8000-R Series



$2,299

Jitter & Real-Time Eye

DS8000-R-JITTER

Jitter and Real-Time Eye Diagram Analysis Option for the DS8000-R Series



$999

Active Probe

RP7080

Active, differential, 800 MHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$2,099

Please scroll to the sides when using small displays
DS8000-R Rack Mount Kit

Rack kit for 1 or 2 DS8000-R instruments is included

Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

Option Bundle

DS8000-R-BND

Application Bundle including all the serial protocol analysis software, Power Analysis, Waveform Generator, and Jitter/Real time Eye options for the DS8000-R Series



$2,299

Jitter & Real-Time Eye

DS8000-R-JITTER

Jitter and Real-Time Eye Diagram Analysis Option for the DS8000-R Series



$999

Serial Trigger & Decode

DS8000-R-AERO

MIL-STD 1553 Serial Triggering and Analysis Option for DS8000-R Series



$999

Serial Trigger & Decode

DS8000-R-AUDIO

Audio Serial Triggering and Analysis(I2S) Option for DS8000-R Series



$999

Serial Trigger & Decode

DS8000-R-AUTO

Automotive Serial Triggering and Analysis(CAN/LIN) Option for DS8000-R Series



$999

Waveform Generator

DS8000-R-AWG

1 Channel, 25 MHz Embedded Arbitrary Waveform Generator Option for the DS8000-R Series



$699

Serial Trigger & Decode

DS8000-R-COMP

Computer Serial Triggering and Analysis(RS232/UART) Option for DS8000-R Series



$999

Serial Trigger & Decode

DS8000-R-EMBD

Embedded Serial Triggering and Analysis(IIC, SPI) Option for DS8000-R Series



$999

Serial Trigger & Decode

DS8000-R-FLEX

FlexRay serial bus trigger and analysis (FlexRay) Option for DS8000-R Series



$999

Power Analysis

DS8000-R-PWR

Integrated Power Analysis Option for DS8000-R Series (RPA246 phase deviation correction jig is also recommended)



$999

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Active Probe

RP7080

Active, differential, 800 MHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$2,099

1 to 5 BNC Cable set for scope calibration

CK-DS6000

1 to 5 BNC Cable set for scope calibration



$49

Demo Board

DK-DS6000
Demonstration signal board for RIGOL Oscilloscopes



$231

Sync Module

DS SYNC64

64CH trigger and calibration synchronization module



$8,999

Near Field Probe Kit

NFP-3
Near Field Probe Kit



$499

Current Probe

PCA1030

50 MHz, 30 A Current Probe for 7000, 8000, or DHO4000 Series Oscilloscopes



$4,890

Current Probe

PCA1150

10 MHz, 300 A Current Probe for 7000, 8000, or DHO4000 Series Oscilloscopes



$5,890

Current Probe

PCA2030

100 MHz, 30 A Current Probe for 7000, 8000, or DHO4000 Series Oscilloscopes



$6,390

Power Splitter

PRSC42

2 Way Power Splitter (DC to 4 GHz)




$99

Active Probe

PVA7250

2.5 GHz Bandwidth Active Probe Kit option



$4,899

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak



$1,791

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$473

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp



$683

High Voltage Probe

RP1050H
High Voltage 15KV (1000:1), 50MHz Passive Probe. AC:Pulse = 30KVpp AC:Sine= 10KVrms



$999

Passive Probe

RP3500A
500 MHz Passive Probe



$231

Passive Probe

RP6150A
1.5GHz Passive Probe. Probe may be different than image indicates.



$342

Active Probe

RP7080S

Active single-ended, 800 MHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$1,049

Active Probe

RP7150

1.5 GHz Bandwidth Active Probe Kit option for 6000, 7000, and 8000 Series Oscilloscopes



$4,736

Active Probe

RP7150S

Active single-ended,1.5GHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$2,520

Power Analysis Jig

RPA246

Power analysis phase difference correction jig




$59

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$346

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$19

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$20

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe




$799

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe




$999

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$1,590

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$1,560

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$867

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$3,408

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$4,909

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$4,332

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$5,490

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$524

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,038

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$788

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$243
