DS8000-R
The DS8000-R Series Oscilloscopes combine best in class sampling and memory depth with a high density form factor enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 350 MHz, 1 GHz, and 2 GHz models each with 4 analog channels the DS8000 Series brings RIGOL’s UltraVision II performance to the high channel count, research, and automation applications. Built for high density, the DS8000-R ships with 1 unit and 2 unit rack mounts included and does not include any probes. The DS8000-R includes all of the analog analysis capabilities of the MSO8000 including Jitter and Real-time Eye Analysis (at 1 or 2 GHz), zone triggering, 6 instruments in one, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements. To request more information or to discuss a system configuration for your application please contact us.
Explore the DS8000-R Series Digital Oscilloscopes
Compact design

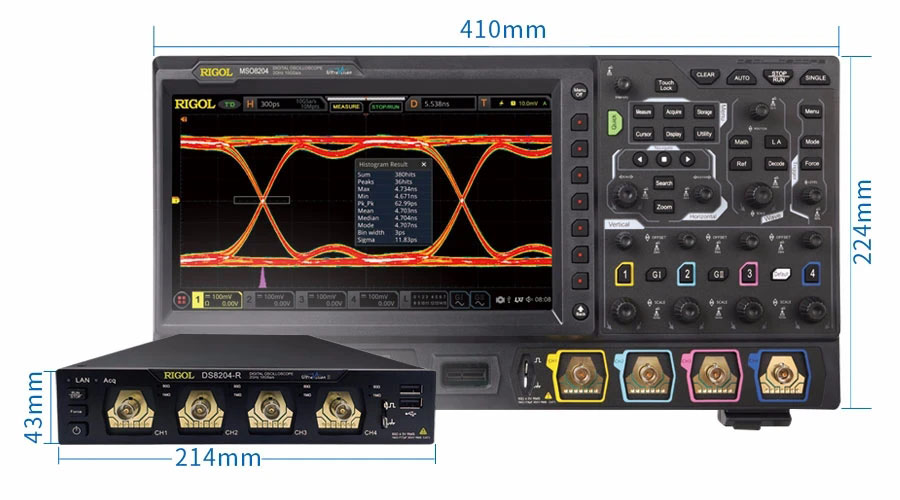

Space-saving compact design, small size, 214 mm (width) u00d7 43 mm (height) u00d7 478 mm (depth), which can be placed in a narrow space.
Convenient stand-alone working mode

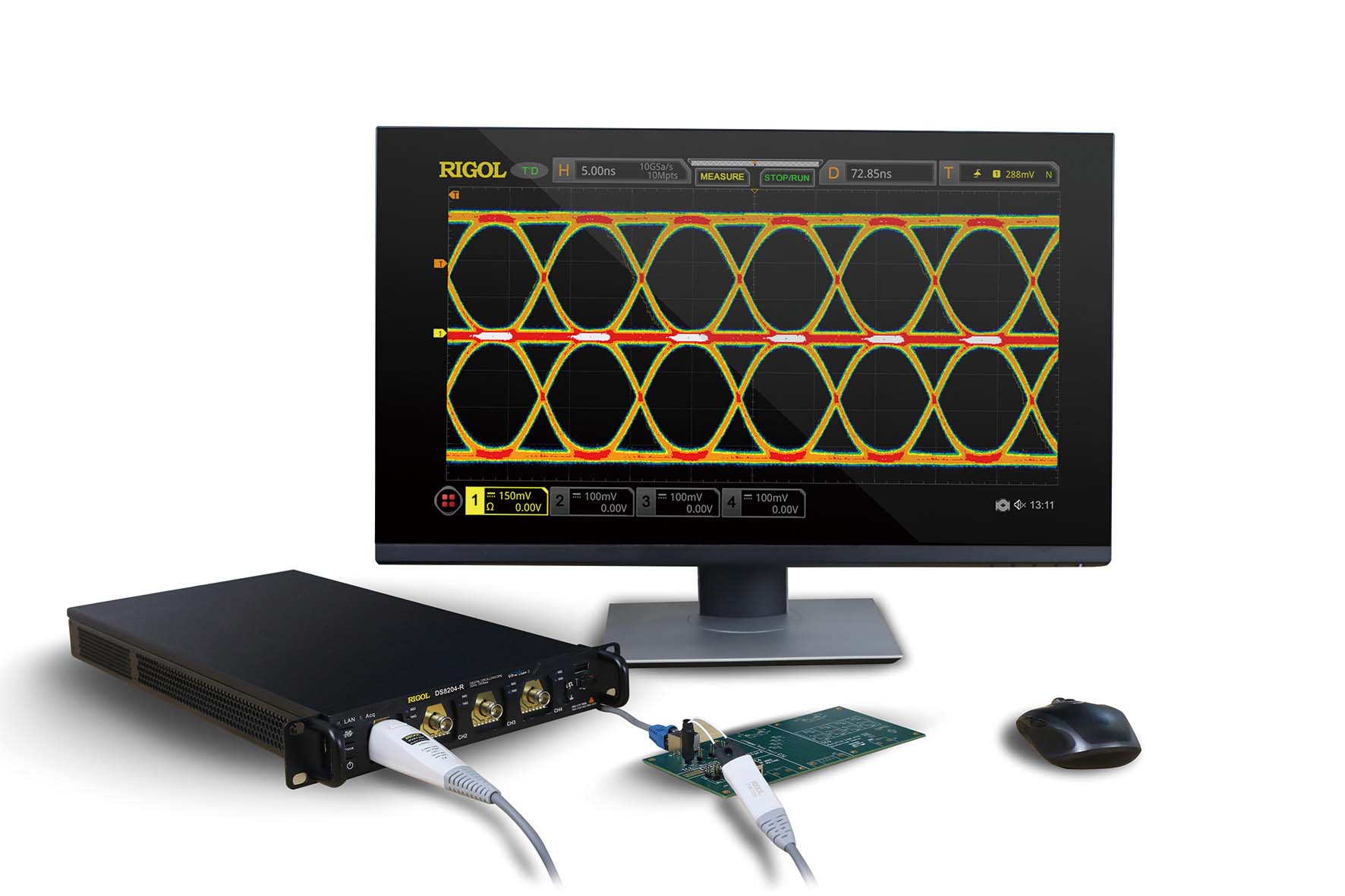

A single device with peripherals can meet traditional oscilloscope applications: connect the display device through the HDMIu00ae interface to view the user interface, connect the mouse through the USB Host interface to click and drag, and connect the keyboard to set numbers or strings.
Suitable for low-temperature working environments

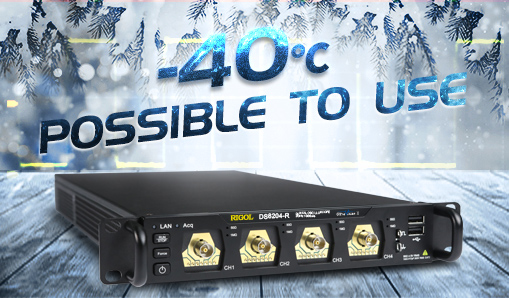

No LCD screen, the minimum operating temperature is -40u00b0C, and it can be applied to signal monitoring in special environments.
Save the rack space

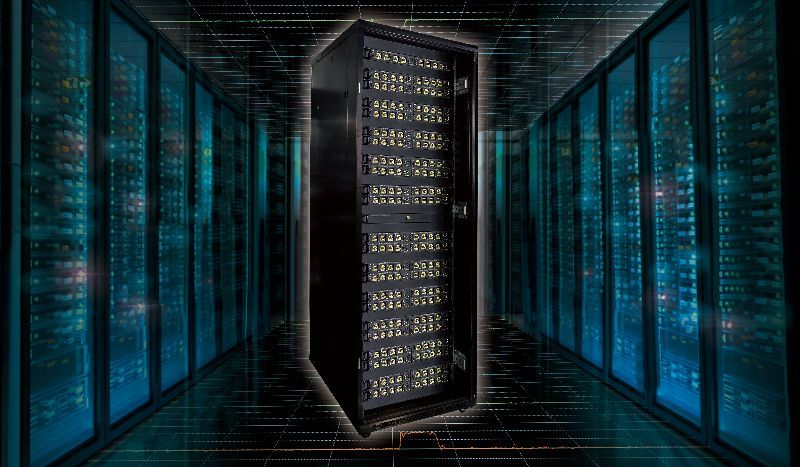

Half U design helps to save the rack space. 2 units can be installed side by side in a 1U standard rack with a total of 8 channels, which efficiently utilizes valuable rack space
Scalable to 512 channels of synchronous trigger capability

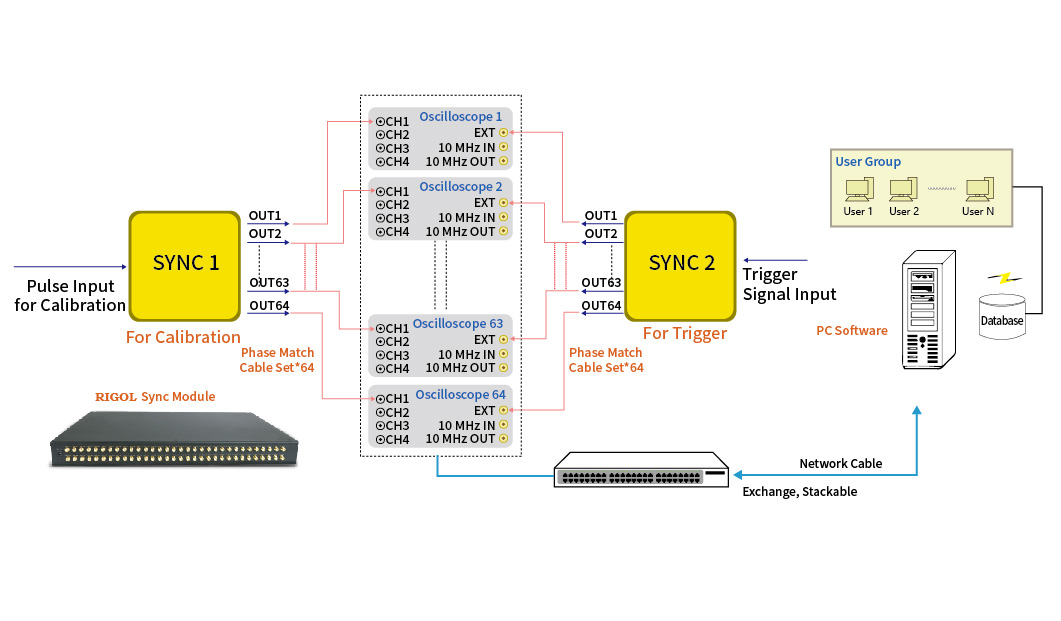

Using the matching synchronous machine, it can provide a multi-machine synchronous trigger scheme, and can realize on-site calibration to ensure the requirements of multi-channel synchronous observation
Multi-channel high-speed data acquisition

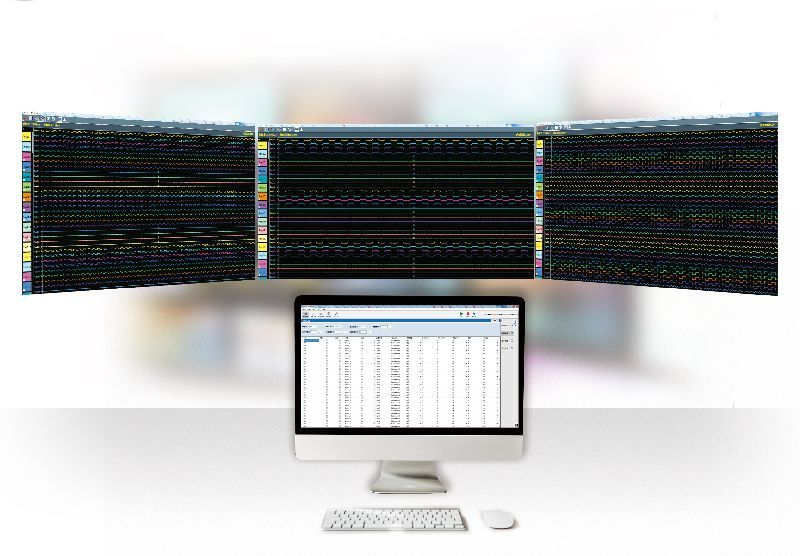

For multi-channel integration, the optional multi-channel high-speed data acquisition software can meet the configuration of multi-machine and multi-channel, and provide a friendly interface to display the waveforms collected by each channel
DS8000-R
Model |
Analog Channels |
Bandwidth |
Real-time Sample Rate |
Max Memory Depth |
Waveform Capture Rate |
Price |
|
|---|---|---|---|---|---|---|---|
| DS8034-R | 4 | 350 MHz | 5 GSa/s | 500 Mpts | 600 Kwfms/s | $3,499 |
|
| DS8104-R | 4 | 1 GHz | 10 GSa/s | 500 Mpts | 600 Kwfms/s | $9,999 |
|
| DS8204-R | 4 | 2 GHz | 10 GSa/s | 500 Mpts | 600 Kwfms/s | $13,999 |
|
