MSO5000 Series   |

Mixed Signal Oscilloscopes

MSO5000

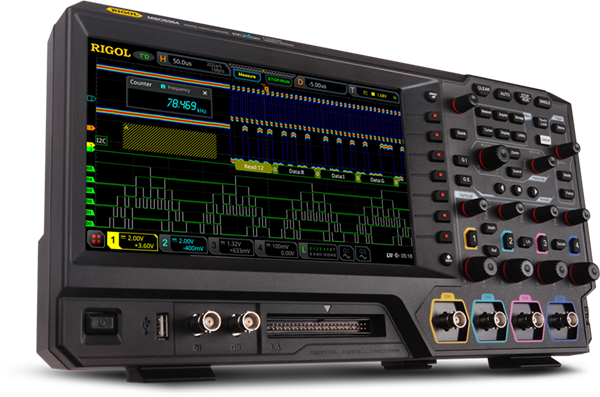

The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 Datasheet & SpecsMSO5000 Datasheet & Specs (Spanish) Compare Rigol
Product Feature Customer Benefit
  8 GSa/s Max Sample Rate Visualize fine resolution and signal detail
Visualize fine resolution and signal detail   8 GSamples per second makes it possible to see short and transient signal artifacts on embedded signals. Oversample 350 MHz signals at >22X to highlight small deviations or use all 4 channels and maintain > 5X oversampling on 350 MHz for ultimate signal analysis flexibility.
  Useful Long Memory Search deep memory traces or record segments with flexible memory
Search deep memory traces or record segments with flexible memory   The MSO5000 provides up to 200 Mpt record lengths while making it easier than ever to utilize these samples. Use the deep memory to capture long continuous signals with complete search and navigation tools or configure the instrument for segmented capture to record and playback a series of trigger events. With the flexibility to make use of the deep memory in multiple analysis tools, the MSO5000 Series sets the bar for flexibility and capability in its class.
  7 instruments in 1 Combine an Oscilloscope, Spectrum Analyzer, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.
Combine an Oscilloscope, Spectrum Analyzer, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.   With the Logic Probe, AWG, and Serial Decode options the MSO5000 Series includes all 7 instruments in one. Solve any of your embedded design challenges whether you need to emulate analog or digital communications, capture high speed signals, verify levels, monitor the spectrum, decode serial communication, monitor parallel buses, or count pulses the MSO5000 makes it possible to quickly and easily move between instrument capabilities all from 1 integrated interface.
  500,000 wfms/s Waveform Capture rate Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.   Faster capture rates reduce the time it takes to visualize these transient effects. Many of the scope’s capabilities can be used without sacrificing waveform capture rate performance. This enables detailed analysis with high signal fidelity.
  Complete Upgradability Upgrade to get all the capabilities you need with no limitations
Upgrade to get all the capabilities you need with no limitations   Starting at an incredible price, the MSO5000 is one of the few oscilloscopes available that makes it possible to upgrade from the 2 channel entry price to a 4 channel performance scope without any recalibration or shipping. Simply purchase the emailed licenses to add channels, bandwidth, serial decode, memory depth, generators, or power analysis. Activate the Logic Analyzer by simply purchasing the LA probe. With a single hardware configuration for all models, the MSO5000 Series is a flexible and capable platform that will grow with your needs for years.
  Advanced Analysis Capabilities Analysis tools including precision measurements, histograms, power analysis, and multiple math and decode functions enable in-depth debug
Analysis tools including precision measurements, histograms, power analysis, and multiple math and decode functions enable in-depth debug   The MSO5000 Series provides math functions on 4 channels and serial decoding on up to 4 serial buses simultaneously. The MSO5000 series adds histograms for statistical analysis of dynamic signals and the power analyzer software and option for analysis of switching power supplies. Combined with the 7 in 1 instrument capabilities and the ability to make precision measurements on up to the full 200 MPt memory, the RIGOL MSO5000 provides incredible analysis and insight for the money.
  Flexible user interface including touch Interact with the instrument in the way that works best for you
Interact with the instrument in the way that works best for you   With a 9 inch touchscreen, full set of knobs and buttons, and mouse support the MSO5000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.
  Bode Plot Analysis Automate advanced device characterization with new phase and gain Analysis capabilities
Automate advanced device characterization with new phase and gain Analysis capabilities

Use an MSO5000 with the latest firmware and the embedded generator or bundle option and get access to the new Bode Plot capability. The embedded generator sweeps frequency while the oscilloscope measures phase and gain. Bode plot data and chart are shown on the display for easy analysis.

Product View

MSO5000
Whitepapers
App Note - Advanced Embedded DebugBode Plot Analysis of switching power supplies
Purchasing Info
Buy Now Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (440) 232-4488

Read about our 3 Year Warranty
Product Info
Compare Rigol with the competition  MSO5000 Datasheet & Specs MSO5000 Datasheet & Specs (Spanish)   Firmware

Specs

Please scroll to the sides when using small displays
Model BandwidthAnalog ChannelsDigital ChannelsReal-time Sample RateMax Memory DepthWaveform Capture Rate Price
MSO5072 70 MHz2 16 (opt) 8 GSa/s100 Mpts (200M opt)500,000 wfms/s $909 In Stock
MSO5074 70 MHz4 16 (opt) 8 GSa/s100 Mpts (200M opt)500,000 wfms/s $999 In Stock
MSO5102 100 MHz2 16 (opt) 8 GSa/s100 Mpts (200M opt)500,000 wfms/s $1,409 In Stock
MSO5104 100 MHz4 16 (opt) 8 GSa/s100 Mpts (200M opt)500,000 wfms/s $1,499 In Stock
MSO5204 200 MHz4 16 (opt) 8 GSa/s100 Mpts (200M opt)500,000 wfms/s $2,099 In Stock
MSO5354 350 MHz4 16 (opt) 8 GSa/s100 Mpts (200M opt)500,000 wfms/s $2,899 In Stock
 Compare Product Families
Please scroll to the sides when using small displays

Digital Probe Kit

PLA2216
Logic Probe for MSO5000 Series Oscilloscopes. Includes cable, leads and grabber clips



$399

Option Bundle

MSO5000-BND
MSO5000 Series Function and application bundle option including PWR, AWG, and all Serial Decode options.



$699

Deep Memory

MSO5000-2RL
MSO5000 Series - extend maximum memory depth up to 200 Mpts



$399

Serial Trigger & Decode

MSO5000-EMBD
MSO5000 Series Embedded serial bus trigger and analysis (I2C, SPI)



$299

Please scroll to the sides when using small displays
Passive Probes - One per channel

PVP2350 350 MHz Passive Probes
Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

Option Bundle

MSO5000-BND
MSO5000 Series Function and application bundle option including PWR, AWG, and all Serial Decode options.



$699

Deep Memory

MSO5000-2RL
MSO5000 Series - extend maximum memory depth up to 200 Mpts



$399

Serial Trigger & Decode

MSO5000-EMBD
MSO5000 Series Embedded serial bus trigger and analysis (I2C, SPI)



$299

Channel Upgrade

MSO5000-4CH
Upgrade to 4 Channels (2 Channel models only)



$399

Serial Trigger & Decode

MSO5000-AERO
MSO5000 Series MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)



$299

Serial Trigger & Decode

MSO5000-AUDIO
MSO5000 Series Audio serial bus trigger and analysis (I2S)



$299

Serial Trigger & Decode

MSO5000-AUTO
MSO5000 Series Auto serial bus trigger and analysis (CAN, LIN)



$299

Waveform Generators

MSO5000-AWG
Dual-channel 25 MHz Arbitrary Waveform Generator



$269

Bandwidth Upgrade

MSO5000-BW0T1

MSO5072 & MSO5074 Bandwidth upgrade from 70 MHz to 100 MHz

(Option only works with MSO5072 and MSO5074)



$569

Bandwidth Upgrade

MSO5000-BW0T2

MSO5072 & MSO5074 Bandwidth upgrade from 70 MHz to 200 MHz

(Option only works with MSO5072 and MSO5074)



$1,399

Bandwidth Upgrade

MSO5000-BW0T3

MSO5072 & MSO5074 Bandwidth upgrade from 70 MHz to 350 MHz

(Option only works with MSO5072 and MSO5074)



$2,599

Bandwidth Upgrade

MSO5000-BW1T2

MSO5102 & MSO5104 Bandwidth upgrade from 100 MHz to 200 MHz

(Option only works with MSO5102 and MSO5104)



$1,199

Bandwidth Upgrade

MSO5000-BW1T3

MSO5102 & MSO5104 Bandwidth upgrade from 100 MHz to 350 MHz

(Option only works with MSO5102 and MSO5104)



$2,299

Bandwidth Upgrade

MSO5000-BW2T3

MSO5204 Bandwidth upgrade from 200 MHz to 350 MHz

(Option only works with MSO5204)



$1,299

Serial Trigger & Decode

MSO5000-COMP
MSO5000 Series PC serial bus trigger and analysis (RS232/UART)



$299

Serial Trigger & Decode

MSO5000-FLEX
MSO5000 Series FlexRay serial bus trigger and analysis (FlexRay)



$299

Power Analysis

MSO5000-PWR
MSO5000 Series Built-in power analysis Ripple and Power Quality measurements



$299

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Digital Probe Kit

PLA2216
Logic Probe for MSO5000 Series Oscilloscopes. Includes cable, leads and grabber clips



$399

Carrying Case

BAG-G1
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, MSO5000 or DS2000 scope.



$155

Demo Board

DK-DS6000
Demonstration signal board for RIGOL Oscilloscopes



$231

Instrument Cover

MSO5000-FPC
Front panel cover for the MSO5000 (MSO5000-FPC)



$79

Rack Mount Kit

MSO5000-RM
Instrument Rack Mounting Kit



$299

Passive Probe

PVP2350

350 MHz Passive Probe with 1x:10x selector. Wide bandwidth in 1x mode up to 35 MHz.



$47

Passive Probe

PVP3150
10x 1x selectable passive probe with 10x bandwidth of 150 MHz and 1x bandwidth of 20 MHz



$35

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak



$1,791

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$473

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp



$683

High Voltage Probe

RP1050H
High Voltage 15KV (1000:1), 50MHz Passive Probe. AC:Pulse = 30KVpp AC:Sine= 10KVrms



$999

Power Analysis Jig

RPA246

Power analysis phase difference correction jig



$59

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$346

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$19

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$20

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe



$799

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe



$999

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$1,590

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$1,560

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$867

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$3,408

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$4,909

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$4,332

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$5,490

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$524

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,038

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$788

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$243
