DHO4000 Series   |  HIGH RESOLUTION DIGITAL OSCILLOSCOPES

DHO4000

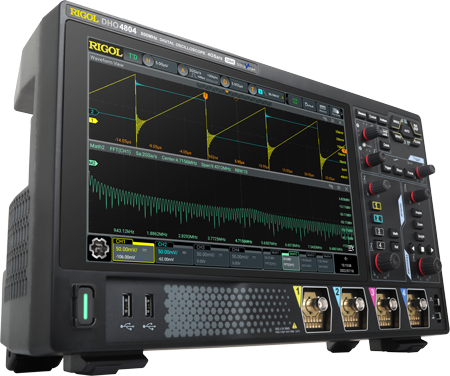

The DHO4000 Series provides improved signal integrity and capability with our latest oscilloscope technology. Our UltraVision III platform combined with a new ASIC chip design that provides true 12 bit samples makes the DHO4000 a great solution for high speed, high signal fidelity applications. With bandwidths from 200 MHz to 800 MHz, these 4 channel oscilloscopes have our best signal visualization capabilities for design and debug. Combine 500 Million points of memory, our new Ultra Acquire burst capture mode, and advanced analysis functions for the best signal fidelity value on the market.
Product Feature Customer Benefit
  12 Bit Resolution 16x improvement in quantization uncertainty

RIGOL’s latest Oscilloscope technology includes a new custom chipset design enabling sampling with true 12 bit resolution. This reduces the quantization level between bits by a factor of 16. These high resolution samples improve signal fidelity and analysis capabilities for signals from power to communications.

  Low Noise New ASIC chipset with dramatically lower front end noise
New ASIC chipset with dramatically lower front end noise

Make the most of 12 bit analog to digital converters with a significantly lower noise floor. With the noise reduced by a factor of 5 compared to our UltraVision II Oscilloscopes analyze smaller signal artifacts with a combination of speed and accuracy. The DHO4000 has a 100 uV/div range setting with demonstrated noise as low as 18 uVrms with a 20 MHz bandwidth filter. Regardless of the level or signal speed, view more of the signal with the high signal fidelity of the DHO4000 Series.

  Ultra Acquire Burst Capture Visualize dynamic signals with multiple display modes
Visualize dynamic signals with multiple display modes

Capture and visualize events at up to an equivalent rate of 1.5 million waveforms per second. Set your frame number to capture and visualize using a density, waterfall, perspective, or mosaic display. Utilize UltraAcquire to capture small, dynamic changes within a complex signal.

  Useful Long Memory Record, navigate, and analyze with flexible memory

With up to 500 Million points in a single capture, use the deep memory to record events, navigate long continuous captures, or even further reduce the noise with high resolution mode. Work with the deep memory using precision measurements for complete signal analysis.

Product View

DHO4000

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsVertical ResolutionBandwidthReal-time Sample RateMax Memory DepthWaveform Capture Rate Price
DHO4204 4 12 Bit200 MHz4 GSa/s250 Mpts(500M opt)50,000 wfms/s $2,699
$2,159 In Stock
DHO4404 4 12 Bit400 MHz4 GSa/s250 Mpts(500M opt)50,000 wfms/s $3,699
$2,959 In Stock
DHO4804 4 12 Bit800 MHz4 GSa/s250 Mpts(500M opt)50,000 wfms/s $4,699
$3,759

 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

Please scroll to the sides when using small displays

Options Bundle

DHO4000-BND

DHO4000 Series Options Bundle includes all Serial Decode & Power Analysis Options



$799
$400

Deep Memory

DHO4000-RLU-05

DHO4000 Series Deep Memory Upgrade License to 500 MPts memory



$449
$359

Please scroll to the sides when using small displays
4 Passive Probes

PVP2350 for 200 MHz model (350 MHz Passive Probes with 1x:10x selector); RP3500A (500 MHz 10x passive probes) for other models

Power Cord

USB Cable

Calibration Certificate

Please scroll to the sides when using small displays

Options Bundle

DHO4000-BND

DHO4000 Series Options Bundle includes all Serial Decode & Power Analysis Options



$799
$400

Deep Memory

DHO4000-RLU-05

DHO4000 Series Deep Memory Upgrade License to 500 MPts memory



$449
$359

Aerospace Serial Decode

DHO4000-AEROA

DHO4000 Series Serial Decoding for Aerospace Upgrade License including MIL-STD-1553



$299
$150

Audio Serial Decode

DHO4000-AUDIOA

DHO4000 Series Serial Decoding for Audio Upgrade License including I2S



$299
$150

Auto Serial Decode

DHO4000-AUTOA

DHO4000 Series Options Bundle includes all Serial Decode & Power Analysis Options



$299
$150

Bandwidth Upgrade

DHO4000-BWU2T4

DHO4204 Bandwidth Upgrade License from 200 MHz to 400 MHz

(Option only works with DHO4204)



$1,199
$959

Bandwidth Upgrade

DHO4000-BWU2T8

DHO4204 Bandwidth Upgrade License from 200 MHz to 800 MHz

(Option only works with DHO4204)



$2,199
$1,759

Bandwidth Upgrade

DHO4000-BWU4T8

DHO4404 Bandwidth Upgrade License from 400 MHz to 800 MHz

(Option only works with DHO4404)



$1,199
$959

FlexRay Decoding

DHO4000-FLEXA

DHO4000 Series Serial Decoding for FlexRay Upgrade LicenseDH



$299
$150

Power Analysis

DHO4000-PWRA

DHO4000 Series Power Analysis Feature Option License



$299
$150

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

DHO4000 Battery Holder

BatHolder138

Battery holder for DHO4000 Series Oscilloscopes



$599

Current Probe

PCA1030

50 MHz, 30 A Current Probe for 7000, 8000, or DHO4000 Series Oscilloscopes



$4,890

Current Probe

PCA1150

10 MHz, 300 A Current Probe for 7000, 8000, or DHO4000 Series Oscilloscopes



$5,890

Current Probe

PCA2030

100 MHz, 30 A Current Probe for 7000, 8000, or DHO4000 Series Oscilloscopes



$6,390

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak



$1,791

Passive Probe

RP3500A
500 MHz Passive Probe



$231

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$19

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$20

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe




$799

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe




$999

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$1,590

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$1,560

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$867

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$3,408

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$4,909

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$4,332

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$5,490

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$524

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,038

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$473

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$788

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$243
