2000A Series   |  Mixed Signal & Digital Oscilloscopes

2000A
The 2000A Series digital oscilloscope is another Best-In-Class instrument from Rigol offering an unmatched feature/value package. The 2000A Series is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications. The MSO models add16 bits of mixed signal logic channels as well as an option for an embedded 2 channel, 25 MHz waveform generator.
Product Feature Customer Benefit
  Low Noise floor with wide vertical range (500uV/div ~ 10V/div) More easily spot and capture small signals and glitches with the lower noise front end on the 2000A Series.
More easily spot and capture small signals and glitches with the lower noise front end on the 2000A Series.   With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000A Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can effect your design.
  Waveform Record and Playback Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.
Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.   Waveform Analysis captures thousands of frames and compares them using a pass/fail mask or deviation quickly driving to the root cause of seemingly erratic or random events.
  16 Digital Channels (MSO Models) Time correlated views between analog and digital channel speeds debug of embedded designs
Time correlated views between analog and digital channel speeds debug of embedded designs   Mixed Signal Oscilloscopes (MSO’s) allow users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.
  UltraVision Technology Advanced display and analysis capabilities combine with deep memory and high waveform update rate in RIGOL's UltraVision oscilloscope technology
Advanced display and analysis capabilities combine with deep memory and high waveform update rate in RIGOL's UltraVision oscilloscope technology   The ability to easily move between long record lengths, fast capture, a variety of persistence modes, and onboard waveform analysis makes RIGOL's core oscilloscope technology an important capability for engineers from maker projects to large scale R&D.
  Integrated 2 Channel full function 25MHz generator Debug and emulate signals all in one instrument
Debug and emulate signals all in one instrument   Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the "-S" models adds value and capability to the bench for a variety of applications.

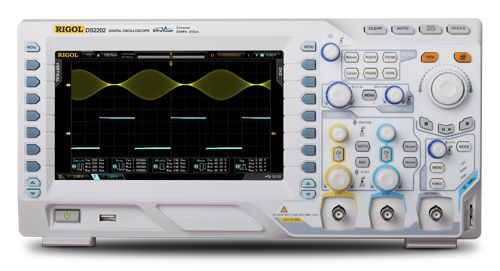

Product View

2000A

Specs

Please scroll to the sides when using small displays
Model BandwidthIncluded SourceAnalog ChannelsReal-time Sample RateMemory Depth Price
DS2302A 300 MHzNo 2 2 GSa/s14 Mpts $2,450
MSO2302A 300 MHzNA2 2 GSa/s14 Mpts $2,621
DS2302A-S 300 MHzYes 2 2 GSa/s14 Mpts $2,830
MSO2302A-S 300 MHzNA2 2 GSa/s14 Mpts $2,971
DS2202A 200 MHzNo 2 2 GSa/s14 Mpts $1,790
MSO2202A 200 MHzNA2 2 GSa/s14 Mpts $2,026
DS2202A-S 200 MHzYes 2 2 GSa/s14 Mpts $2,180
MSO2202A-S 200 MHzNA2 2 GSa/s14 Mpts $2,376
DS2102A 100 MHzNo 2 2 GSa/s14 Mpts $1,260
MSO2102A 100 MHzNA2 2 GSa/s14 Mpts $1,543
DS2102A-S 100 MHzYes 2 2 GSa/s14 Mpts $1,650
MSO2102A-S 100 MHzNA2 2 GSa/s14 Mpts $1,893
DS2072A 70 MHzNo 2 2 GSa/s14 Mpts $839
MSO2072A 70 MHzNA2 2 GSa/s14 Mpts $1,239
DS2072A-S 70 MHzYes 2 2 GSa/s14 Mpts $1,189
MSO2072A-S 70 MHzNA2 2 GSa/s14 Mpts $1,589

 Interactive Selection Tool

Specifications:

 MSO/DS2000A Specs
Probes - PVP2350 (Qty. 2)

Qty. 2 of PVP2350 - 350 MHz Passive Probe with 1x:10x selector. Wide bandwidth of 35 MHz in 1x mode.

RPL2316

Logic Probe for MSO2000A and MSO4000 Series Oscilloscopes. Included with MSO models only. Includes cable, leads and grabber clips

UltraStation Basic

Basic version of UltraStation wave generation software for DG1000Z, DG4000, DG5000 Series generators as well as 1000Z and 2000A "-S" Series embedded generators.

Instrument Quick Guide

Calibration Certificate

Power Cord

USB Cable

Option Bundle

BND-MSO/DS2000A
MSO/DS2000A option bundle including MEM-DS2000, AT-DS2000, SD-DS2000, CAN-DS2000. Special bundle available for a limited time. This option enables deep memory, serial decoding including CAN bus as the advanced triggering options listed in the User's Guide.



$244

Power Analysis Software

UPA-DS
Power Analysis Software for DS2, DS4, & MSO4 oscilloscopes.



$838

Arbitrary Wave Generation Software

Ultra Station-adv
Full advanced version of UltraStation wave generation software for DG1000Z, DG4000, DG5000 Series generators as well as DS1000Z and DS2000A "-S" embedded generators. This is a software upgrade license.



$109

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$329

Rack Mount Kit

RM-DS2000
Rack Mount Kit for the DS2000 and DS2000A Series Oscilloscope



$374

Carrying Case

BAG-G1
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope.



$147

Current Probe

RP1002C
Current Probe, DC-1 MHz,100A peak.



$1,705

High Voltage Probe

RP1050H
High Voltage 15KV (1000:1), 50MHz Passive Probe. AC:Pulse = 30KVpp AC:Sine= 10KVrms



$999

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$750

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$450

Passive Probe

RP3500A
500 MHz Passive Probe



$220

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$1,485

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$4,125

Passive Probe

RP3300A
300 MHZ PASSIVE PROBE 10:1 fixed attenuation



$44

Attentuator

RA5040K
40 dB attenuator accessory for oscilloscopes or generators



$44

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$988

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$231

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$4,675

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$19

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$3,245

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$825

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$499

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp



$650

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$18
