RIGOL Digital Oscilloscopes
DS70000

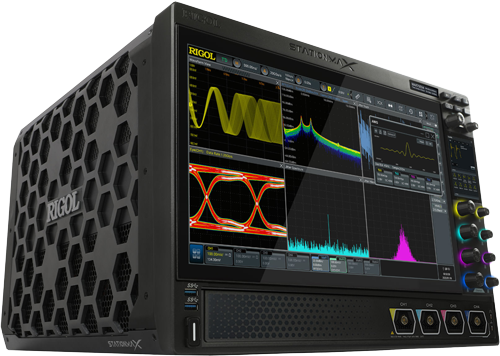

DS70000 series is RIGOL's 7th generation of the digital oscilloscope. Built on RIGOL's "Phoenix" platform, it delivers excellent performance with a maximum sample rate of 20 GSa/s, 5 GHz real-time bandwidth. In addition to the improvement of hardware specification, the DS70000 series also has many user-friendly designs to ensure high-quality user experience.
Analog Channels
4
Bandwidth
5 GHz
Real-time Sample Rate
20 GSa/s
Max Memory Depth
500 Mpts 2 Gpts (opt)
Waveform Capture Rate
1 Mwfms/s
Downloads
Explore the DS70000 Series Oscilloscopes
Digital Oscilloscope with Realu00adu2010Time Spectrum Analysis to 5 GHz
Up to 5 GHz Bandwidth and 20 GSa/sec Sample Rate
Waveform Capture Rate
View infrequent anomalies and small signal details quickly and precisely with up to 1 Million waveforms visualized on the screen every second.
2 Billion Points of Memory
500 Mpts memory depth is standard and can be upgraded to 2 Gpts memory depth (Half-channel 1 Gpts) Full 100 millisecond capture at max sampling rate of 20 GSamples per second Capture half a Billion periods of a 5 GHz signal in one continuous data stream Memory can also be segmented to record up to 2 Million frames in record mode
16 bits Vertical Resolution
Up to 16 bit resolution High resolution mode: 9-16 bits Directly select the number of bits
Multiple Touchscreens for efficient visualization
15.6u201d auto-tilt primary touchscreen display Secondary touchscreen reserves main screen for analysis
Multi Window User Interface
Analysis tools and functions open in separate windows that optimize scale and axis settings Measurements open in separate sidebar
DS70000
Model |
Analog Channels |
Bandwidth |
Real-time Sample Rate |
Max Memory Depth |
Waveform Capture Rate |
Price |
|
|---|---|---|---|---|---|---|---|
| DS70304 | 4 | 3 GHz | 20 GSa/s | 500 Mpts | 1 Mwfms/s | Price on Request | |
| DS70504 | 4 | 5 GHz | 20 GSa/s | 500 Mpts | 1 Mwfms/s | Price on Request |
Included Accessories
4 Passive Probes
Calibration Certificate
Power Cord
USB Cable
Programming Guides
App Notes
Firmware
Software
 10M Automotive Ethernet Compliance(PC)Installer | |
| 10M Industrial Ethernet Compliance(PC)Installer | |
| UltraSigma Instrument Connectivity Driver | Software for Communicating with instruments over VISA. UltraSigma is also a container and gateway for software such as Ultra Signal Studio, Ultra Spectrum, Ultra Power, and more. |
 C#.NET basic instrument communication example | Here is a short example on using National Instrument VISA and C#.NET to communicate with an instrument. |
| How do I install UltraSigma Compatible software? | You will need to have Ultra Sigma installed first.
Contact Rigol for more information.
Ultra IQ provides modulation waveform editing for the DSG3000 series of RF sources.
Ultra Power provides instrument control and data collection for the Rigol DP series of power supplies.
Ultra Signal Studio is a legacy software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG4000 and DG5000 arbitrary waveform generators.
Ultra Station is a software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG1000Z, DG4000 and DG5000 arbitrary waveform generators.
Ultra Spectrum provides instrument control and spectrum analysis for Rigol DSA1000, 1000A, and 800 series Digital Spectrum Analyzers. |
| How do I install UltraSigma? | UltraSigma is a software installation that provides basic communications between a computer and an instrument using VISA.
It is also used to contain instrument specific software like UltraSpectrum for use with Rigol Spectrum Analyzers, Ultra Signal Studio for Arbitrary Waveform Generators, and Ultra Power for Power Supplies. |
| Rigol Software Installation and Usage guide | An overview of the installation and usage of the Ultra Family of software products from RIGOL |
| User's Guide for UltraSigma Software | UltraSigma is a VISA based communication and shell program that eases communication and remote control of instrumentation.
We have built a short user's guide to familiarize user's with the features of UltraSigma. |
Application Notes
Included Accessories
4 Passive Probes
Calibration Certificate
Power Cord
USB Cable
50 Ohm Adaptor
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
ADP0150BNC
|
50 Ohm impedance adapter for oscilloscopes or generators In Stock |
$19.00
|
|
|
BNC Cable
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
CB-BNC-BNC-MM-100
|
BNC Cable (length 1 meter) In Stock |
$20.00
|
|
|
Current Probe
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RP1001C
|
Current Probe, DC-300 kHz,100 Apeak In Stock |
$867.00
|
|
|
RP1003C
|
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply. Ships in 8 weeks |
$3,408.00
|
|
|
RP1004C
|
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply. In Stock |
$4,909.00
|
|
|
RP1005C
|
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply. Ships in 8 weeks |
$4,332.00
|
|
|
RP1006C
|
Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise Ships in 8 weeks |
$5,490.00
|
|
Current Probe Power
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RP1000P
|
RP1003C/RP1004C/RP1005C probe power supply Ships in 8 weeks |
$1,560.00
|
|
|
Differential Probe
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RP1025D
|
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp In Stock |
$473.00
|
|
|
PHA0150
|
70 MHz 1500 V Differential Voltage Probe Ships in 8 weeks |
$799.00
|
|
|
PHA1150
|
100 MHz 1500 V Differential Voltage Probe In Stock |
$999.00
|
|
|
|
PHA2150
|
200 MHz 1500 V Differential Voltage Probe
In Stock |
$1,590.00
|
|
|
RP1100D
|
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp In Stock |
$788.00
|
|
High Voltage Probe
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RP1010H
|
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation In Stock |
$524.00
|
|
|
|
RP1018H
|
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation In Stock |
$1,038.00
|
|
|
RP1300H
|
100:1 300 MHz TO 2KV PASSIVE PROBE In Stock |
$243.00
|
|
Optical-fiber Isolated Probe
Passive Probe
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RP3500A
|
500 MHz Passive Probe In Stock |
$231.00
|
|
Test Fixture
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
TF-AENET-CME-STP
|
Automotive Ethernet Common-Mode Emission Test Fixture Contact RIGOL |
$209.00
|
|
|
|
TF-ENET-STP
|
100M/1000M Ethernet Compliance Test Fixture Contact RIGOL |
$3,269.00
|
|
|
|
TF-ENET10G-RL-STP
|
10M/100M/1000M/2.5G/5G/10G Return-loss Test Fixture Contact RIGOL |
$879.00
|
|
|
|
TF-USBD-STP
|
USB2.0 Device Compliance Test Fixture Contact RIGOL |
$1,189.00
|
|
|
|
TF-USBH-STP
|
USB2.0 Host Compliance Test Fixture Contact RIGOL |
$639.00
|
|
|
|
TFB-AENET-MAT-STP
|
Automotive Ethernet MATEnet Compliance Test Fixture KIT Contact RIGOL |
$2,329.00
|
|
|
|
TFB-AENET-MTD-STP
|
Automotive Ethernet H-MTD Compliance Test Fixture KIT Contact RIGOL |
$2,329.00
|
|
|
Functional Options
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
DS70000-10MAUTOC
|
10M Automotive Ethernet Compliance Test (T1S) Contact RIGOL |
$5,409.00
|
|
|
|
DS70000-10MINDUC
|
10M Industrial Ethernet Compliance Test(T1L) Contact RIGOL |
$5,409.00
|
|
|
|
DS70000-AENETC
|
100M/1000M Automotive Ethernet Compliance Test Contact RIGOL |
$7,219.00
|
|
|
|
DS70000-AEROA
|
MIL-STD1553 bus triggering and analysis options Ships in 3-5 days |
$2,499.00
|
|
|
|
DS70000-AUDIOA
|
Audio Bus I2S Protocol Triggering and Decoding Ships in 3-5 days |
$2,499.00
|
|
|
|
DS70000-AUTOA
|
Automotive Serial Bus CAN/CAN-FD, LIN Triggering and Decoding Ships in 3-5 days |
$2,499.00
|
|
|
|
DS70000-DPHY12C
|
MIPI D-PHY1.2 Compliance Test Contact RIGOL |
$7,219.00
|
|
|
|
DS70000-EMBDA
|
I2C/SPI Bus trigger and analysis options In Stock |
$2,499.00
|
|
|
|
DS70000-ENETC
|
100/1000M Ethernet Conformance Test Ships in 3-5 days |
$9,039.00
|
|
|
|
DS70000-JITTA
|
Eye Diagram & Advanced Jitter Analysis In Stock |
$7,219.00
|
|
|
|
DS70000-RFFEA
|
MIPI-RFFE Protocol Analysis Option Contact RIGOL |
$2,499.00
|
|
|
|
DS70000-RTSA
|
Real time spectrum analysis option In Stock |
$5,899.00
|
|
|
|
DS70000-USBA
|
USB2.0 Protocol Analysis Option Contact RIGOL |
$2,499.00
|
|
|
|
DS70000-USBC
|
USB 2.0 Signal Quality Compliance Test In Stock |
$3,599.00
|
|
|
Performance Upgrade
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
DS70000-RL-20
|
Storage depth upgrade option In Stock |
$5,899.00
|
|
|
