RIGOL Digital Oscilloscopes
DS9000
The MSO9000 and DS9000 Series Digital Oscilloscopes are built for high-speed testing and complex signal analysis. With up to 6 GHz bandwidth, 20 GSa/s real-time sampling rate, 2 Gpts memory depth, and a waveform capture rate of up to 1,000,000 wfms/s, the series enables engineers to capture high-speed signals faster, isolate intermittent anomalies, and perform deeper analysis with greater efficiency.Combined with a 10.1-inch HD touchscreen and advanced capabilities such as eye diagram analysis, jitter decomposition, compliance testing, and power analysis, this series is well suited for high-speed bus debugging, signal integrity analysis, power testing and compliance validation, delivering a more reliable, flexible, and cost-efficient test experience.
Bandwidth
6 GHz
Analog Channels
4
Digital Channels
16
Max Sample Rate
20 GSa/s
Max Memory Depth
500 Mpts (2Gpts OPT)
max_mem_opt
(2Gpts OPT)
Waveform Capture Rate
1 Mwfms/s
Downloads
Explore the MSO/DS9000 Series High Resolution Digital Oscilloscopes

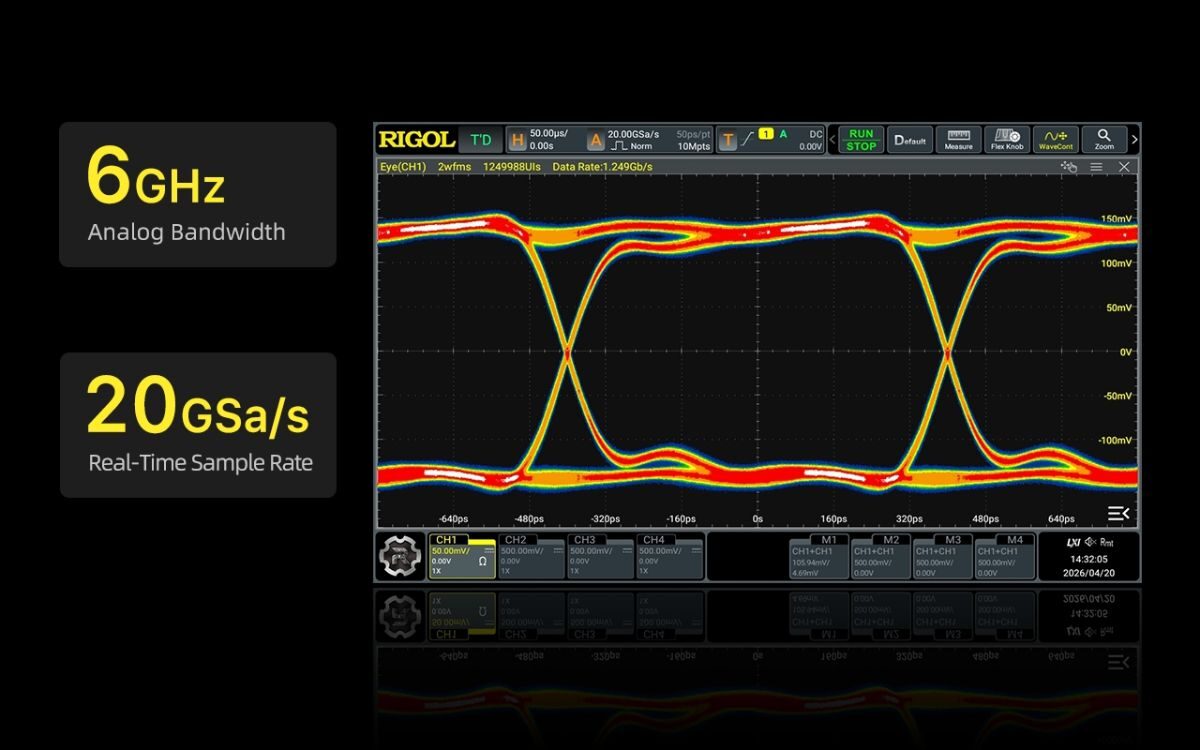

6GHz Pure & Lossless
With up to 6 GHz bandwidth and 20 GSa/s real-time sampling rate, the DS/MSO9000 Series is built for high-speed signal capture, edge analysis, and complex anomaly detection.
Solid Electronic Attenuator, Built to Last
By replacing traditional mechanical attenuators with a Solid Electronic Attenuator, the DS/MSO9000 Series delivers improved lifetime and reliability in high-frequency, high-duty-cycle range switching applications.

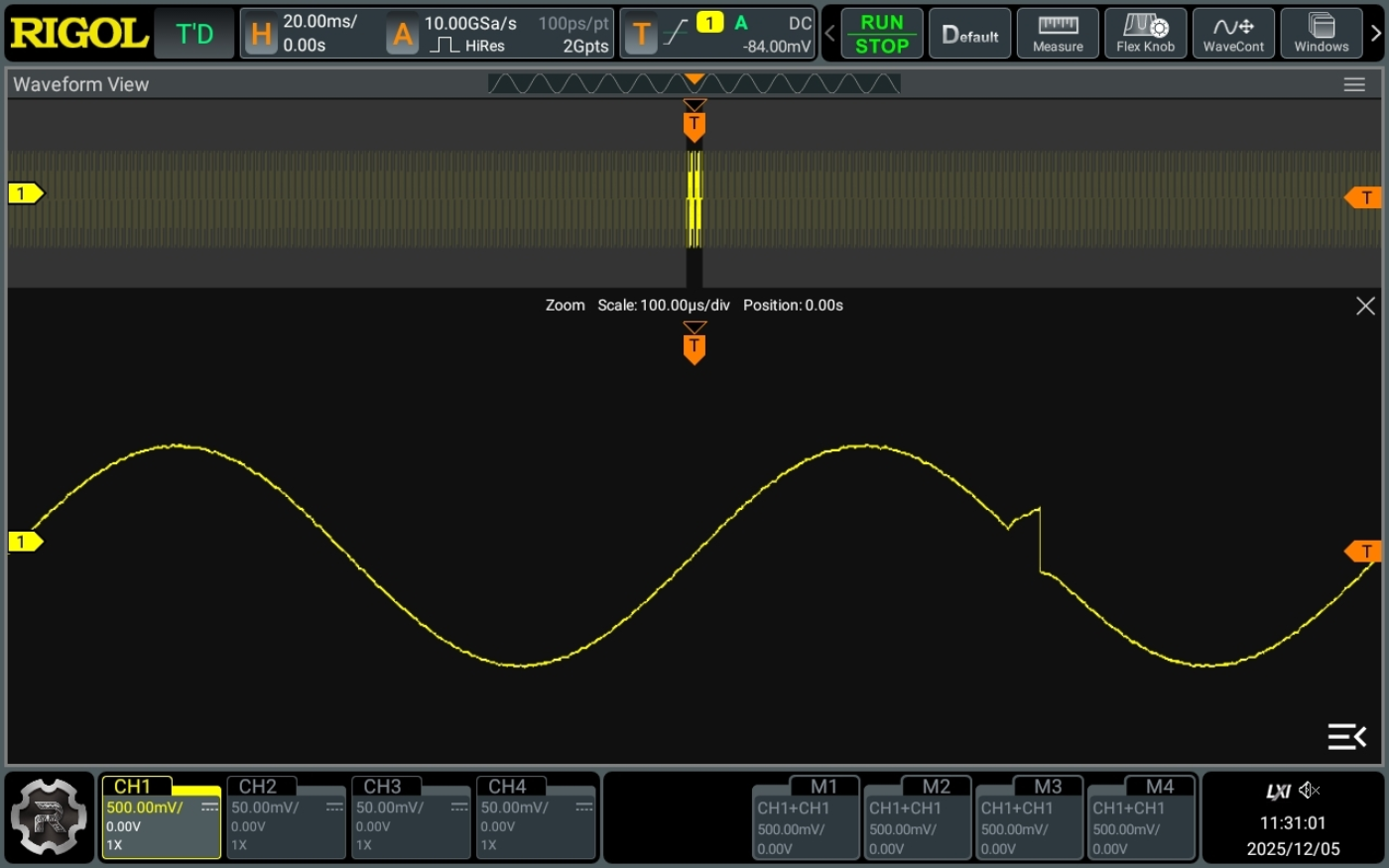

Deep Memory, Zero Misses
With up to 2 Gpts memory depth and a waveform capture rate of up to 1,000,000 wfms/s, the DS/MSO9000 Series helps engineers detect intermittent events faster and improve debugging efficiency.

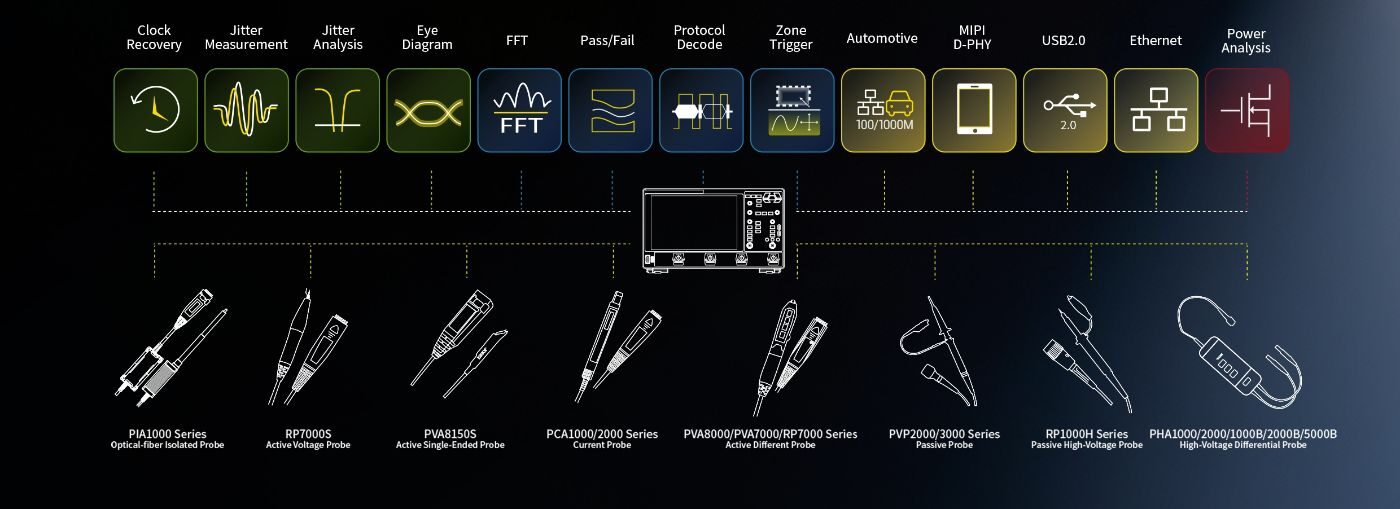

Advanced Analysis in One
Built-in tools such as eye diagram analysis, jitter decomposition, compliance testing, and power analysis enable users to move quickly from waveform observation to deeper insight.

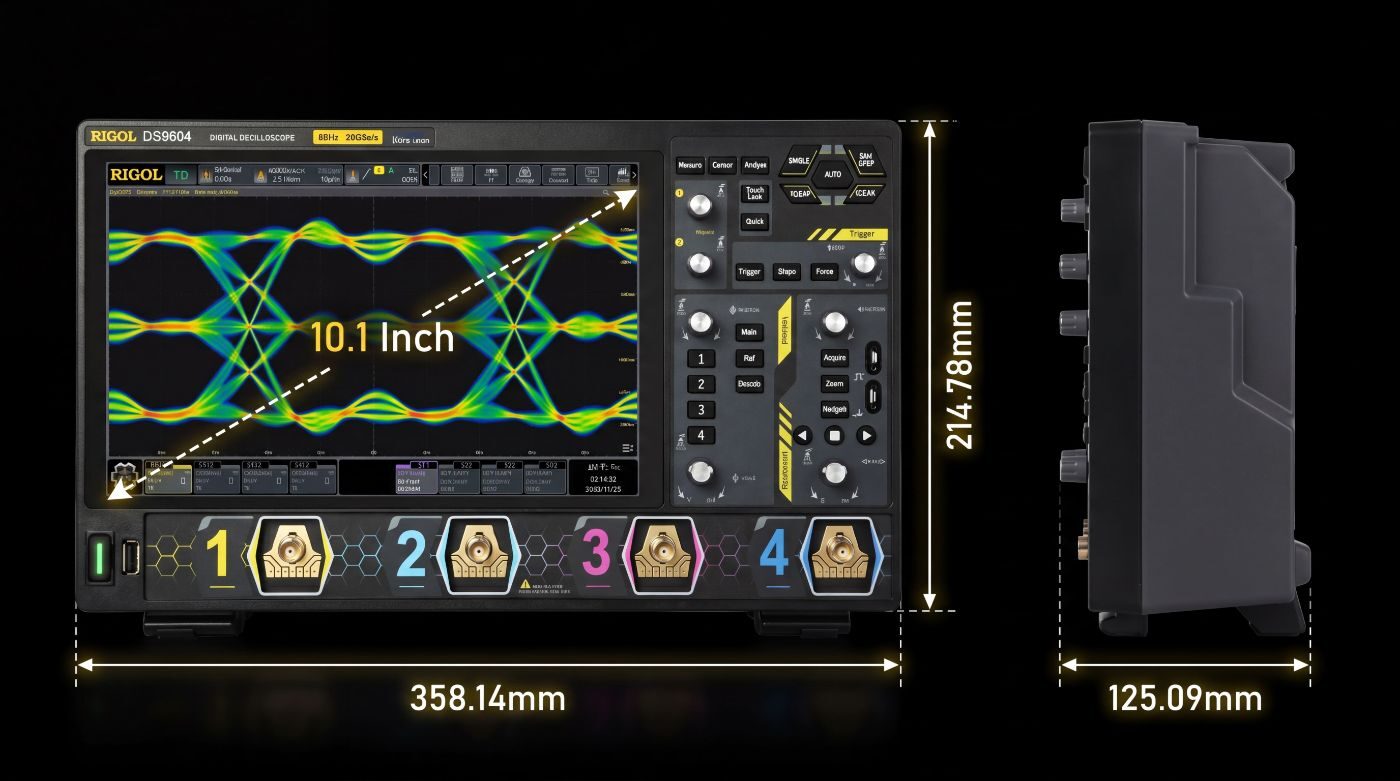

Compact & Portable
Highly integrated and weighing only 11lbs, the DS9000 Series is suitable for both efficient lab testing and portable field deployment.
DS9000
Model |
Bandwidth |
Analog Channels |
Digital Channels |
Max Sample Rate |
Max Memory Depth |
Waveform Capture Rate |
Price |
||
|---|---|---|---|---|---|---|---|---|---|
| DS9202 | 2.50 GHz | 2 | N/A | 10 GSa/s | 10 Mpts | N/A | 1 Mwfms/s |
$9,999.00
In Stock |
|
| DS9204 | 2.50 GHz | 4 | N/A | 20 GSa/s | 500 Mpts | (2Gpts OPT) | 1 Mwfms/s |
$14,999.00
In Stock |
|
| DS9404 | 4 GHz | 4 | N/A | 20 GSa/s | 500 Mpts | (2Gpts OPT) | 1 Mwfms/s |
$21,199.00
In Stock |
|
| DS9604 | 6 GHz | 4 | N/A | 20 GSa/s | 500 Mpts | (2Gpts OPT) | 1 Mwfms/s |
$27,999.00
In Stock |
|
| MSO9402 | 4 GHz | 2 | 16 | 20 GSa/s | 500 Mpts | (2Gpts OPT) | 1 Mwfms/s |
$15,399.00
Ships in 8 weeks |
|
Included Accessories
Calibration Certificate
Power Cord
USB Cable
User Guides
Datasheets
App Notes
Firmware
Software
