DSG5000 Series   |

RF Signal Generator

DSG5000

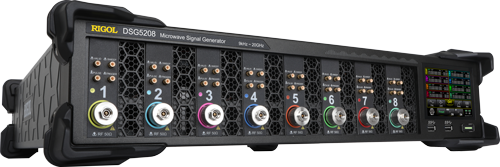

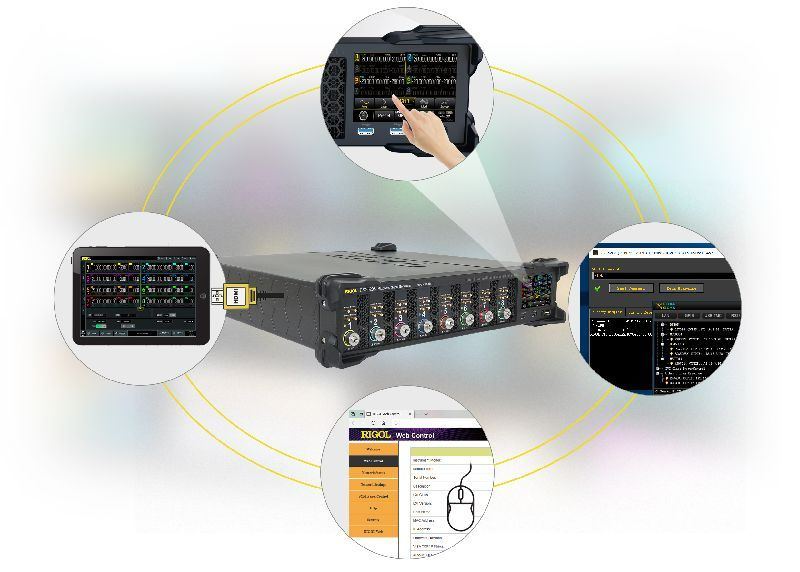

The DSG5000 Series RF Source combines up to 8 channels in a single system. All channels can be controlled from touch screen interface. Channels generate up to 20 GHz signals with amplitude, frequency, phase, and pulse modulation capabilities. The DSG5000 has excellent long term channel to channel phase stability at +/- 1%. Combine multiple channels of accurate, phase stable RF carriers for demanding research applications with the new DSG5000.
DSG5000 Datasheet & Specs
Product Feature Customer Benefit
  Phase Stability Highest accuracy for long term verification
Highest accuracy for long term verification

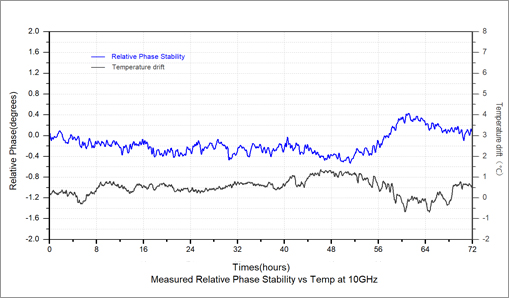

Compared with competitive solutions, the DSG5000 demonstrates excellent long-term stability. Measured at 10 GHz with a temperature variation of < 1˚C the phase stability can be measured at less than 1˚ of phase deviation over 72 hours.

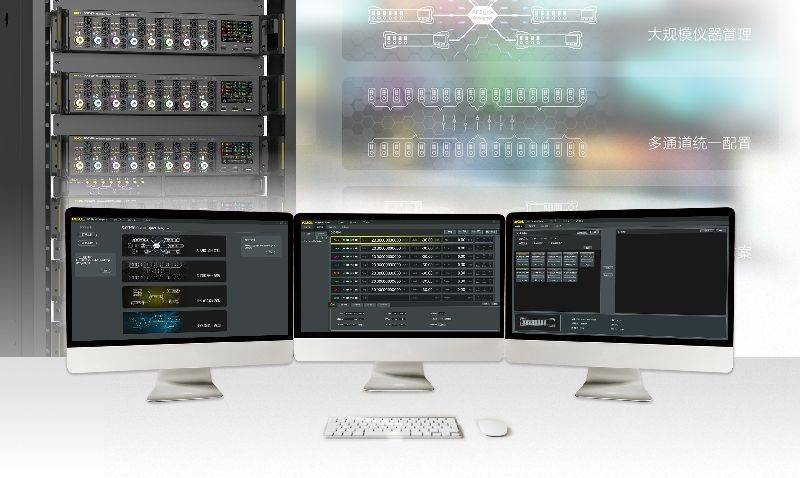

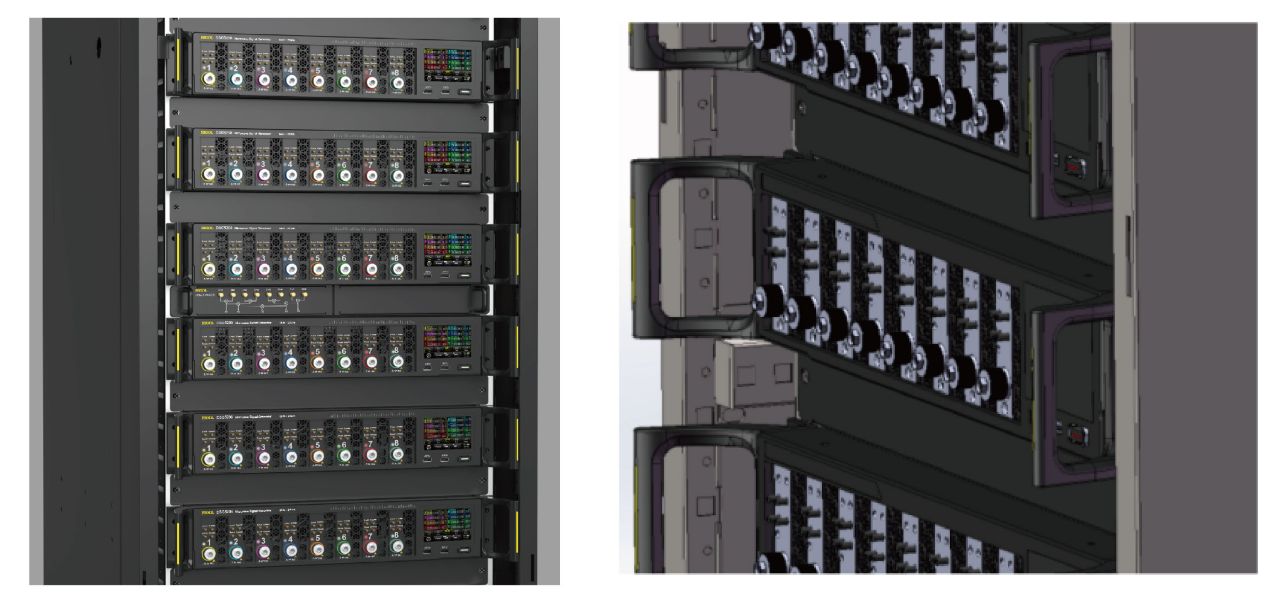

  High Channel density Space saving solution for large systems

The DSG5000 is a 2 U full rack instrument. Models can have up to 8 independent RF channels. Channel density is 8 times greater than the DSG3000B series. This makes the DSG5000 a great solution for complex multi-channel and system level applications.

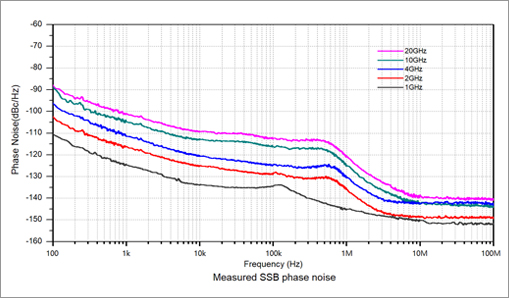

  High Performance and Capability Extended frequency range for complex applications

The DSG5000 can generate up to 20 GHz carriers with high signal fidelity and standard functions including amplitude, frequency, phase, and pulse modulations.

Product View

DSG5000

IoT Video Series

Interested in Debugging Connected Electronics? Register and explore our IoT Video Series.

IoT Videos
Purchasing Info
Buy Now Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (440) 232-4488

Read about our 3 Year Warranty
Product Info
 DSG5000 Datasheet & Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model ChannelsMax. FrequencyPhase NoiseAmplitude Accuracy (typical) Price
DSG5122 2 12 GHz<-133 dBc/Hz±1.1 dB $43,690
DSG5124 4 12 GHz<-133 dBc/Hz±1.1 dB $87,690
DSG5126 6 12 GHz<-133 dBc/Hz±1.1 dB $131,390
DSG5128 8 12 GHz<-133 dBc/Hz±1.1 dB $175,090
DSG5202 2 20 GHz<-133 dBc/Hz±1.1 dB $73,090
DSG5204 4 20 GHz<-133 dBc/Hz±1.1 dB $145,890
DSG5206 6 20 GHz<-133 dBc/Hz±1.1 dB $218,790
DSG5208 8 20 GHz<-133 dBc/Hz±1.1 dB $291,690
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 DSG5000 Latest Firmware

Drivers

Software

 UltraSigma Instrument Connectivity Driver How do I install UltraSigma Compatible software? User's Guide for UltraSigma Software
Please scroll to the sides when using small displays

Pulse Train Generation

DSG5000-PUG

Pulse Train Generator Option for the DSG5000



$2,299

High Accuracy Clock

OCXO-D08

High stability clock option for the DSG5000. Configurable in the field. OCXO clock shipped and user installed.



$1,399

Please scroll to the sides when using small displays
Power Cord

Please scroll to the sides when using small displays

Pulse Train Generation

DSG5000-PUG

Pulse Train Generator Option for the DSG5000



$2,299

Analog Modulation

DSG5000-AMD

Analog Modulation Option for the DSG5000 - Modulate amplitude, frequency, and phase



$2,699

Pulse Modulation

DSG5000-PUM

Pulse modulation option for the DSG5000 Series RF signal sources



$0

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

High Accuracy Clock

OCXO-D08

High stability clock option for the DSG5000. Configurable in the field. OCXO clock shipped and user installed.



$1,399
