DHO800 Series   |

Compact Size, Various Interfaces

DHO800
The DHO800 series is RIGOL's high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise. The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands.
Check out our new DG800 Pro Series Generators that combines competitive performance with a 7” touch screen and compact chassis
DHO800 datasheet
Product Feature Customer Benefit
  12 Bit Resolution 16x improvement in quantization uncertainty
16x improvement in quantization uncertainty

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.
  Type-C power interface Support Type-C Power
Support Type-C Power

Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.
  Sleek Design Providing you with more ample workspace
Providing you with more ample workspace

The DHO800 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.
  Versatile Interfaces Support remote control and conference presentations
Support remote control and conference presentations

The DHO800 series comes standard with USB, LAN, and HDMI output interfaces, supporting remote control and conference presentations, making collaboration more convenient.

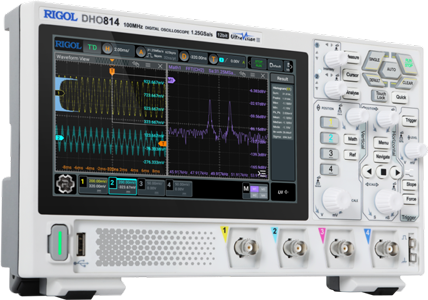

Product View

DHO800
Whitepapers
Embedded Design App Note
Purchasing Info
Buy Now Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (440) 232-4488

Read about our 3 Year Warranty
Product Info
 DHO800 datasheet   Firmware

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsVertical ResolutionBandwidthReal-time Sample RateMax Memory DepthWaveform Capture Rate Price
DHO802 2 12 Bit70 MHz1.25 GSa/s25 Mpts1,000,000 wfms/s $329
DHO804 4 12 Bit70 MHz1.25 GSa/s25 Mpts1,000,000 wfms/s $439 In Stock
DHO812 2 12 Bit100 MHz1.25 GSa/s25 Mpts1,000,000 wfms/s $439 In Stock
DHO814 4 12 Bit100 MHz1.25 GSa/s25 Mpts1,000,000 wfms/s $549 In Stock
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 DHO800_DHO900(Software)Updatev00.01.02.00.02

Drivers

Software

 UltraSigma Instrument Connectivity Driver C#.NET basic instrument communication example How do I install UltraSigma Compatible software? How do I install UltraSigma? Rigol Software Installation and Usage guide User's Guide for UltraSigma Software
Please scroll to the sides when using small displays
Please scroll to the sides when using small displays
Probes - 1 per channel

Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Instrument Carrying Case

BAG-800

Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800



$69

Passive Probe

PVP2350

350 MHz Passive Probe with 1x:10x selector. Wide bandwidth in 1x mode up to 35 MHz.



$47

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp



$683

Passive Probe

RP6150A
1.5GHz Passive Probe. Probe may be different than image indicates.



$342

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$19

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$20

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe



$799

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe



$999

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$1,590

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$1,560

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$867

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$3,408

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$4,909

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$4,332

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$5,490

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$524

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,038

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$473

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$788

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$243
