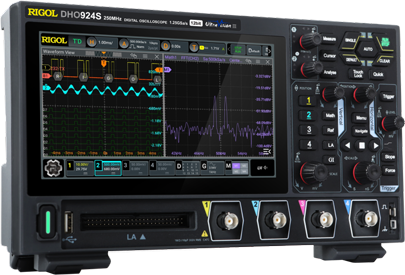

DHO900 Series   |

Compact Size, Various Interfaces

DHO900
The DHO900 series is RIGOL's high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memory depth, 12 bits resolution, and low noise.The DHO900 series supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.

Save 15% on DHO900 Series Oscilloscopes - offer ends 31 December 2024 (US & Canada only)

DHO900 datasheet
Product Feature Customer Benefit

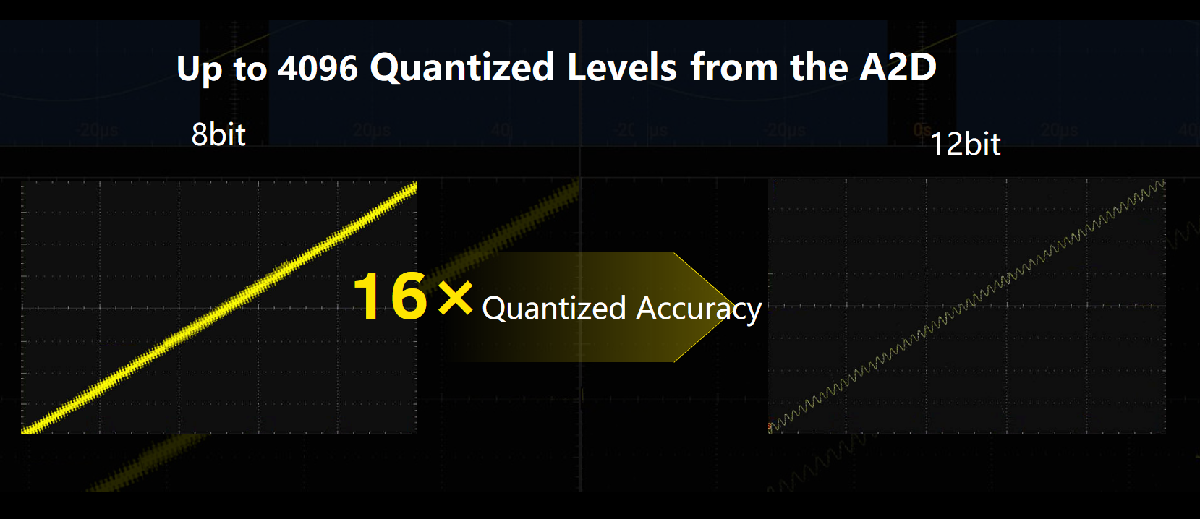

  12 Bit Resolution 16x improvement in quantization uncertainty
16x improvement in quantization uncertainty

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

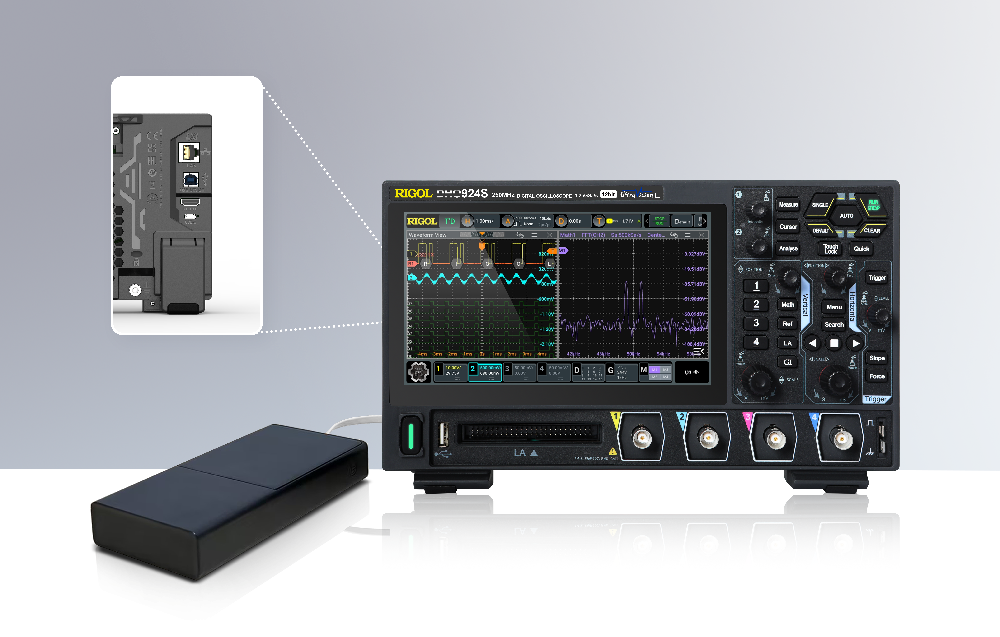

  Designed with a Type-C power interface Support Type-C Power
Support Type-C Power

Designed with a Type-C power interface, the DHO900 can be powered by just a portable power source, enabling on-site testing.

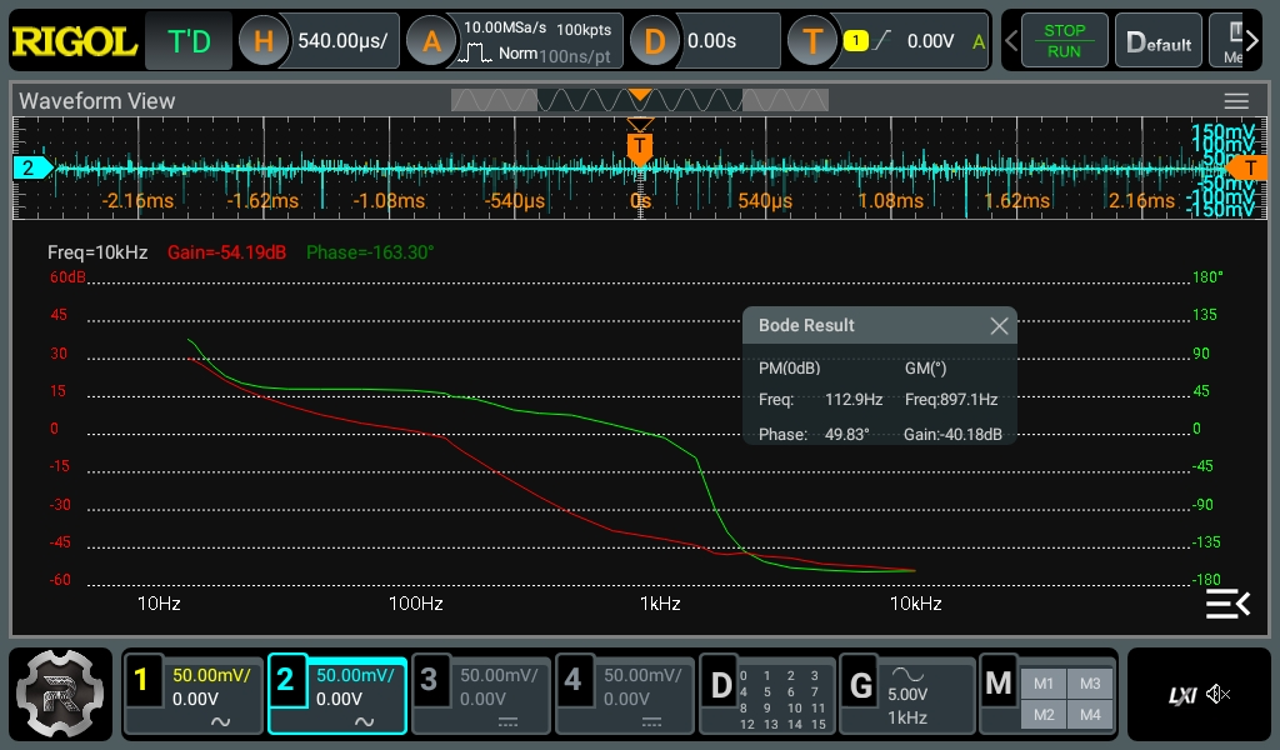

  Supports Bode Plot Analysis DHO900S model comes with a signal generator and Bode plot capability
DHO900S model comes with a signal generator and Bode plot capability

The DHO900S series comes standard with Bode plot loop analysis function, effectively addressing switching power loop response analysis.

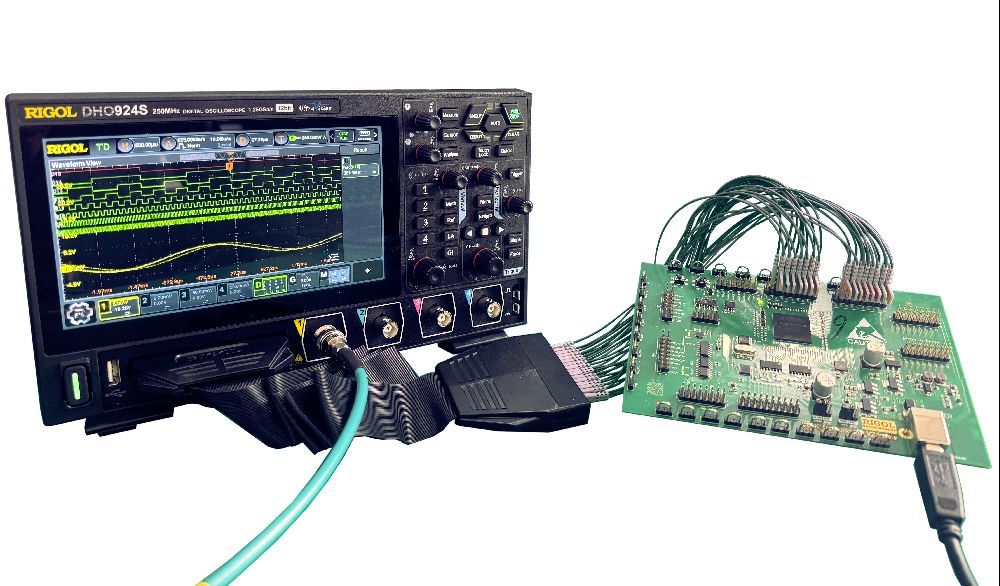

  Standard Digital Channels Allow digital signal analysis when paired with the PLA2216 logic analysis probe
Allow digital signal analysis when paired with the PLA2216 logic analysis probe

The entire DHO900 series comes equipped with digital channels as standard, allowing digital signal analysis when paired with the PLA2216 logic analysis probe.

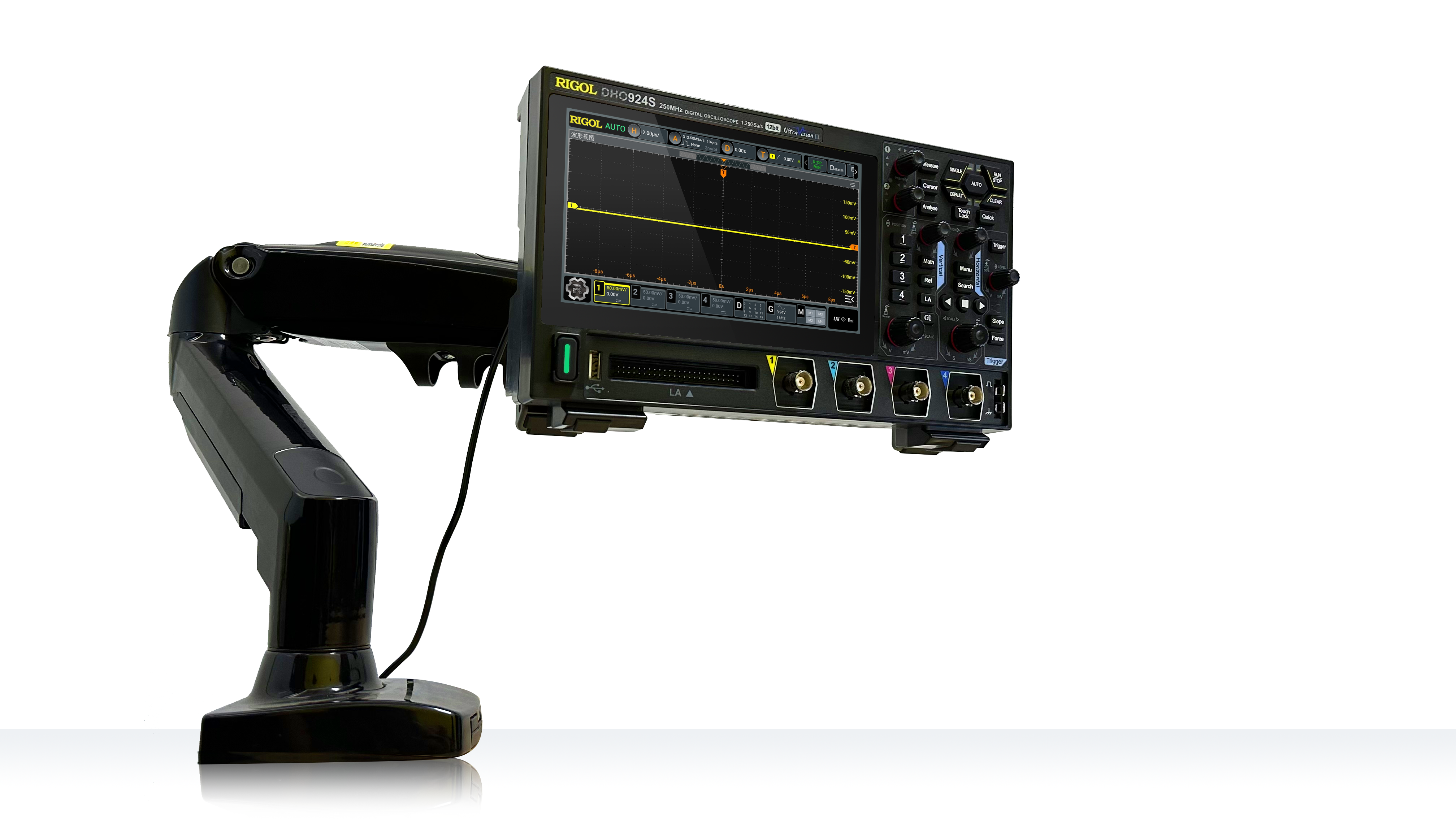

Product View

DHO900
Whitepapers
Embedded Design App Note
Purchasing Info
Buy Now Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (440) 232-4488

Read about our 3 Year Warranty
Product Info
 DHO900 datasheet   Firmware

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsVertical ResolutionBandwidthReal-time Sample RateMax Memory DepthWaveform Capture Rate Price
DHO914 4 12 Bit125 MHz1.25 GSa/s50 Mpts1,000,000 wfms/s $659
$560 In Stock
DHO914S 4 12 Bit125 MHz1.25 GSa/s50 Mpts1,000,000 wfms/s $769
$654 In Stock
DHO924 4 12 Bit250 MHz1.25 GSa/s50 Mpts1,000,000 wfms/s $769
$654 In Stock
DHO924S 4 12 Bit250 MHz1.25 GSa/s50 Mpts1,000,000 wfms/s $899
$764 In Stock
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 DHO800_DHO900 (Software) Update

Drivers

Software

 UltraSigma Instrument Connectivity Driver C#.NET basic instrument communication example How do I install UltraSigma Compatible software? How do I install UltraSigma? Rigol Software Installation and Usage guide User's Guide for UltraSigma Software
Please scroll to the sides when using small displays

Digital Probe Kit

PLA2216
Logic Probe for MSO5000 Series Oscilloscopes. Includes cable, leads and grabber clips



$399

Please scroll to the sides when using small displays
Probes - 1 per channel

Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Digital Probe Kit

PLA2216
Logic Probe for MSO5000 Series Oscilloscopes. Includes cable, leads and grabber clips



$399

Instrument Carrying Case

BAG-800

Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800



$69

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp



$683

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$19

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$20

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe



$799

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe



$999

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$1,590

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$1,560

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$867

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$3,408

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$4,909

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$4,332

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$5,490

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$524

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,038

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$473

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$788

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$243
