DSA800 Series   |

Spectrum Analyzer for Visualization

DSA800
Rigol's DSA800 Series spectrum analyzers redefine the product category by setting new standards for performance and price. The DSA800 family features a widescreen display, compact design, and easy-to-use interface making it ideal for benchtop or field apps in RF and wireless testing and production. The spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The DSA815 distinguishes between signals with a frequency difference as little as 10 Hz. The DSA832, DSA832E, and DSA875 have a DANL (displayed average noise level) down to -161 dBm (typical). In addition, Rigol offers great options including an EMI filter and quasi-peak detector kit, VSWR measurement package, and tracking generator ("-TG" version) for all of these models. A Preamplifier is standard on all models in the family. Whether your application is radio verification at 455 MHz or monitoring the 3rd harmonic of 2.4 GHz signals find the right spectrum analyzer in the DSA800 Series.

Limited time Promotion on DSA800 models. Make RF measurements in your lab without waiting for shared equipment. See new pricing below.
SpecificationsDSA800 Series Datasheet Compare Rigol
Product Feature Customer Benefit
  Noise floor as low as -161 dBm View lower powered signals (harmonics, interference sources) and ease trouble-shooting.

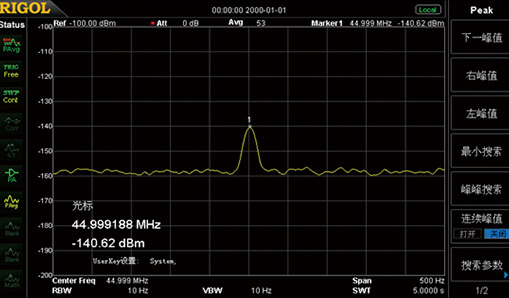

View lower powered signals (harmonics, interference sources) and ease trouble-shooting.   Displayed Average Noise Level determines the lowest power level an analyzer can resolve. It is effected by settings including PreAmplifiers, Attenuation, and RBW. On the DSA800 Series, Typical Normalized DANL is as low as -161 dBm with the standard preamp activated on the 3.2 and 7.5 GHz models.
  EMI PreCompliance measurements (option) Use FCC bandwidths, EMI filter, and QuasiPeak Detector to make PreCompliance measurements during the design process saving time and money getting new products to market.

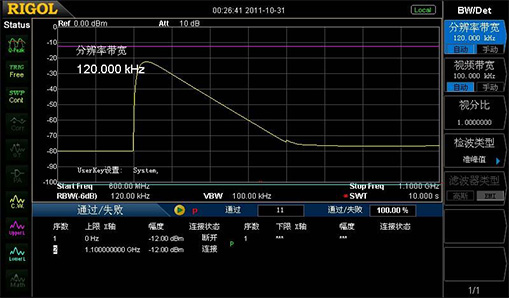

Use FCC bandwidths, EMI filter, and QuasiPeak Detector to make PreCompliance measurements during the design process saving time and money getting new products to market.   The Rigol DSA series of spectrum analyzers are ideal for performing near-field probing, conducted, and emitted precompliance measurements.

Add the S1210 PreCompliance software, Near Field Probes (NFP-3), and the EMI-DSA800 option to make complete EMI PreCompliance measurements with the DSA800 Series analyzers.
  Down to 10Hz Minimum Resolution Bandwidth (RBW) Provides high resolution to separate signals with similar frequencies enabling easier signal identification

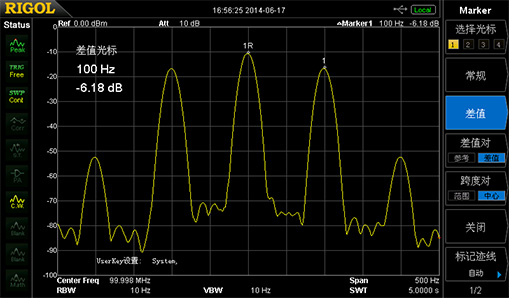

Provides high resolution to separate signals with similar frequencies enabling easier signal identification   Resolution Bandwidth sets the distance between measurements in frequency. This is important, for instance, when you need to differentiate between 2 carriers that are only 50 Hz apart. They can't be viewed as distinct signals with a RBW setting as large as the separation.




  Tracking Generator and VSWR options measurement options Low cost additions provide the ability to test cables, antennas, filters, and active components. VSWR option automates standing wave parameter measurements.

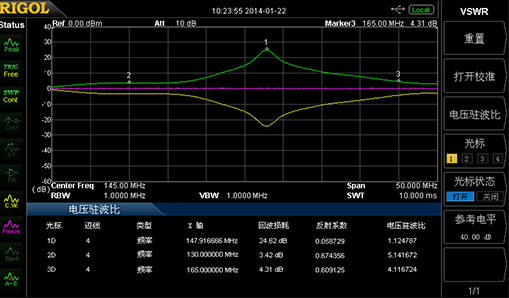

Low cost additions provide the ability to test cables, antennas, filters, and active components. VSWR option automates standing wave parameter measurements.   Having an integrated RF source that is synchronized with the spectrum analyzer to test frequency response of components is an important feature for a spectrum analyzer. Analyzers refer to the source as a tracking generator. A signal source that generates a carrier that tracks with the analyzer's measurements.
Tracking Generators are included on the models ending in "-TG". They can not be added later. The DSA800-VSWR measurement feature is a software option than can be added at any time to automate reflectivity measurements.

Product Details

DSA800 with Callouts

IoT Video Series

Interested in Debugging Connected Electronics? Register and explore our IoT Video Series.

IoT Videos
Whitepapers
How to measure an amplifier using a DSA-815-TG?
Purchasing Info
Buy Now Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 877-4-RIGOL-1

Read about our 3 Year Warranty
Product Info
Compare Rigol with the competition  DSA800 Series Datasheet  DSA800 Series Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model FrequencyDANLPhase NoiseRBW Price
DSA815 1.5 GHz-155 dBm-80 dBc/Hz10 Hz $1,319 In Stock
DSA815-TG 1.5 GHz-155 dBm-80 dBc/Hz10 Hz $1,299
$1,299 In Stock
DSA832E 3.2 GHz-158 dBm-90 dBc/Hz10 Hz $1,999
$1,999 In Stock
DSA832E-TG 3.2 GHz-158 dBm-90 dBc/Hz10 Hz $2,599
$2,599 In Stock
DSA832 3.2 GHz-161 dBm-98 dBc/Hz10 Hz $4,079 In Stock
DSA832-TG 3.2 GHz-161 dBm-98 dBc/Hz10 Hz $5,279
DSA875 7.5 GHz-161 dBm-98 dBc/Hz10 Hz $5,999 In Stock
DSA875-TG 7.5 GHz-161 dBm-98 dBc/Hz10 Hz $6,999 In Stock
 Compare Product Families

Specifications:

 DSA800 Series Specs
Please scroll to the sides when using small displays

EMI Software

S1210 EMI Pre-compliance
EMI PreCompliance Software for RIGOL Spectrum Analyzers. Requires EMI option to be enabled on the instrument.



$499

EMI Settings

EMI-DSA800
EMI Filter & Quasi-Peak Detector Kit



$692

Advanced Measurements

AMK-DSA800
Advanced Measurement Kit



$577

Near Field Probe Kit

NFP-3
Near Field Probe Kit



$499

Please scroll to the sides when using small displays
PreAmplifier

PreAmplifier improves noise floor. Standard on all new DSA800 Analyzers
Calibration Certificate

Power Cord

Please scroll to the sides when using small displays

EMI Settings

EMI-DSA800
EMI Filter & Quasi-Peak Detector Kit



$692

Advanced Measurements

AMK-DSA800
Advanced Measurement Kit



$577

PreAmplifier

PA-DSA875
Preamplifier option, 100kHz to 7.5GHz (only for DSA875 or DSA8375-TG)



$629

VSWR Bridge Software

VSWR-DSA800
VSWR Measurement License Only (DSA800s with TG Only)



$531

PreAmplifier

PA-DSA832
Preamplifier option, 100kHz to 3.2GHz (only for DSA832, DSA832E, DSA832E-TG, or DSA832-TG)



$629

Signal Capture Mode

SSC-DSA
Real Time signal capture option for the spectrum analyzer. Enables 1.5 MHz of real time capture for signals like FSK. Works on the DSA700 series and the DSA815 or DSA815-TG.



$209

Please scroll to the sides when using small displays

EMI Software

S1210 EMI Pre-compliance
EMI PreCompliance Software for RIGOL Spectrum Analyzers. Requires EMI option to be enabled on the instrument.



$499

Spectrum Analyzer Software

Ultra Spectrum

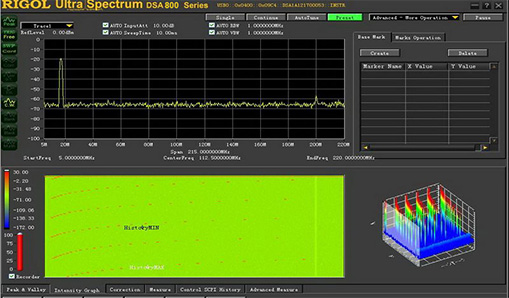

Software for controlling and analyzing data from RIGOL spectrum analyzers.



$266

Demodulation Software

S1220
ASK/FSK Demodulation Software. Only for use with DSA832, DSA832E, or DSA875 instruments.



$399

Please scroll to the sides when using small displays

Near Field Probe Kit

NFP-3
Near Field Probe Kit



$499

Carrying Case

BAG-G1
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, MSO5000 or DS2000 scope.



$155

N Type Cable

CB-NM-NM-75-L-12G
N(M)-N(M) RF Cable



$199

SMA Cable

CB-NM-SMAM-75-L-12G
N(M)-SMA(M) RF Cable



$199

RF Adaptor Kit

RF Adaptor Kit
RF Cable and adaptor kit



$314

Rack Mount Kit

RM-DSA800
Rack Mounting Kit for a DSA800 Series Spectrum Analyzer. May be different than image. Rack kits are different for each instrument.



$393

RF Receiver Test Kit

RX1000
RF Demo Kit (Receiver)



$902

RF Transmitter Test Kit

TX1000
RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier.



$993

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$346

VSWR Bridge

VB1032
VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included. Requires TG Option. Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: >= 25 dB



$659

VSWR Bridge

VB1080
VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. *SW does NOT work with DSA1000 Family. Requires TG Option.



$734

VSWR Bridge

VB1040
800 MHz to 4 GHz VSWR Bridge with DSA8-VSWR software for DSA800 Spectrum Analyzers. *SW does NOT work with DSA1000 Family. Requires TG Option.



$923

High Power Attenuator

ATT03301H
30dB High Power Attenuator, Max Power 100W



$230

Utility Kit

DSA Utility Kit
DSA Accessories Package including cables, adaptors, and antennas.



$831

RF Attenuator Kit

RF Attenuator Kit
Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs)



$524

RF CATV Kit

RF CATV Kit
Kit Includes 50 to 75 Ohm Adaptors (2pcs)



$419

IoT Design Challenges Seminar
Register to check out our new IoT Webinar Series.
Topics Include:
  • Debugging Serial Communication
  • RF Sensor Integration and Demodulation
  • Characterizing Power Requirements
Register Here
