RSA800
The RSA800 Series is designed for electronics R&D, education, and RF enthusiasts. It combines 40 MHz real-time bandwidth, a built-in preamplifier, excellent residual response, a 7-inch multi-touch display, and a full SCPI command set. Covering 5 kHz to 14 GHz, it supports RF measurements for cellular, Wi-Fi, satellite C-/Ku-band, and short-range wireless applications. Optional VSA, ADM, and EMI applications further extend its measurement capabilities.
Compact in Size. Powerful in Performance.
Every model weighs just 1.9 kg. Pack it into the RIGOL Ultra-Portable Instrument Bag and take professional RF testing wherever your work takes you.

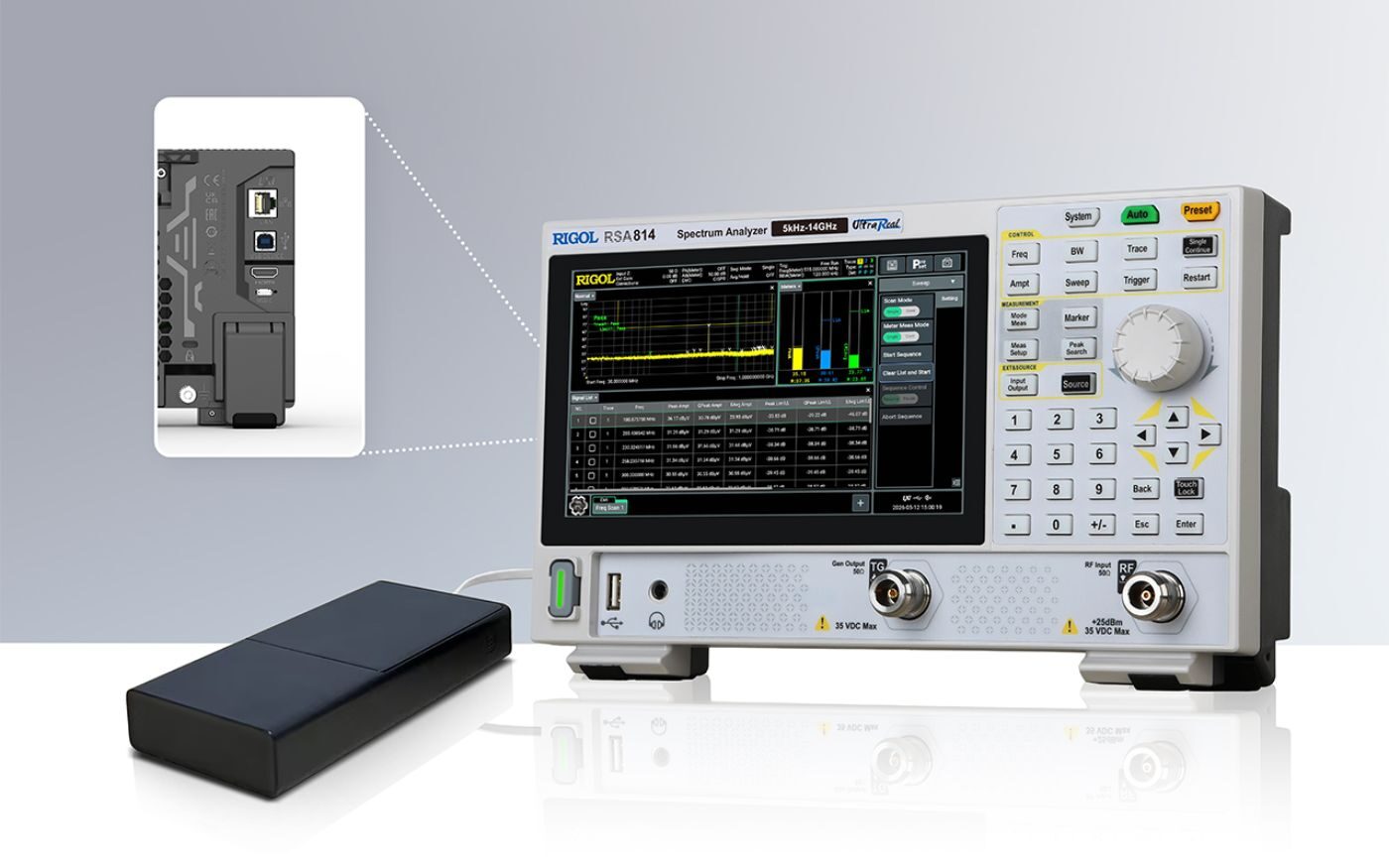

Standard USB Type-C PD Power
Supports the mainstream USB Power Delivery (PD) standard via the Type-C interface. Power it with a portable power bank for business travel and field testing—no AC outlet required.

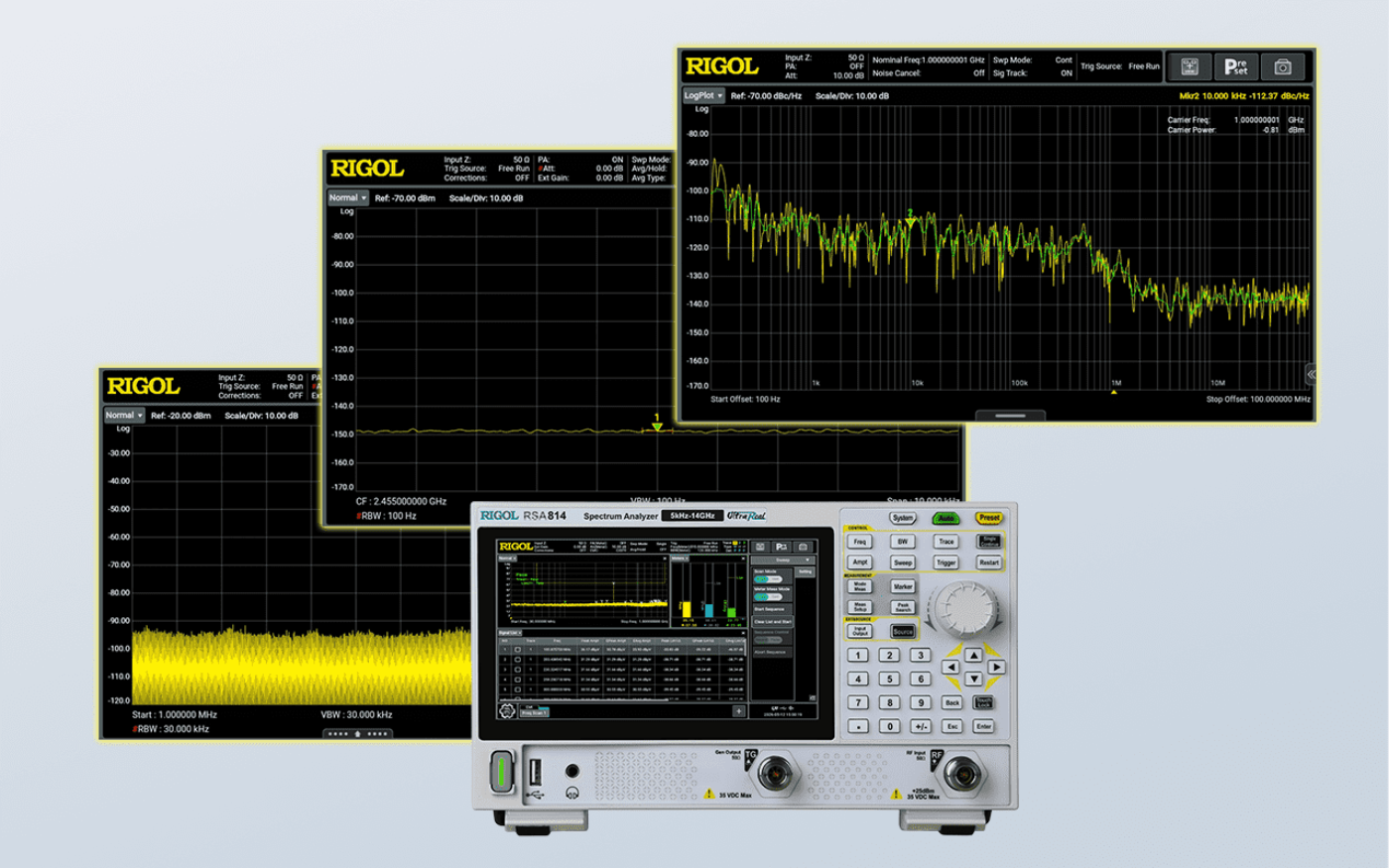

Professional RF Performance for Demanding Applications
Frequency Range: 5 kHz to 4.5 / 8.5 / 14 GHz
Phase Noise: -112 dBc/Hz @ 1 GHz, 10 kHz offset (typ.)

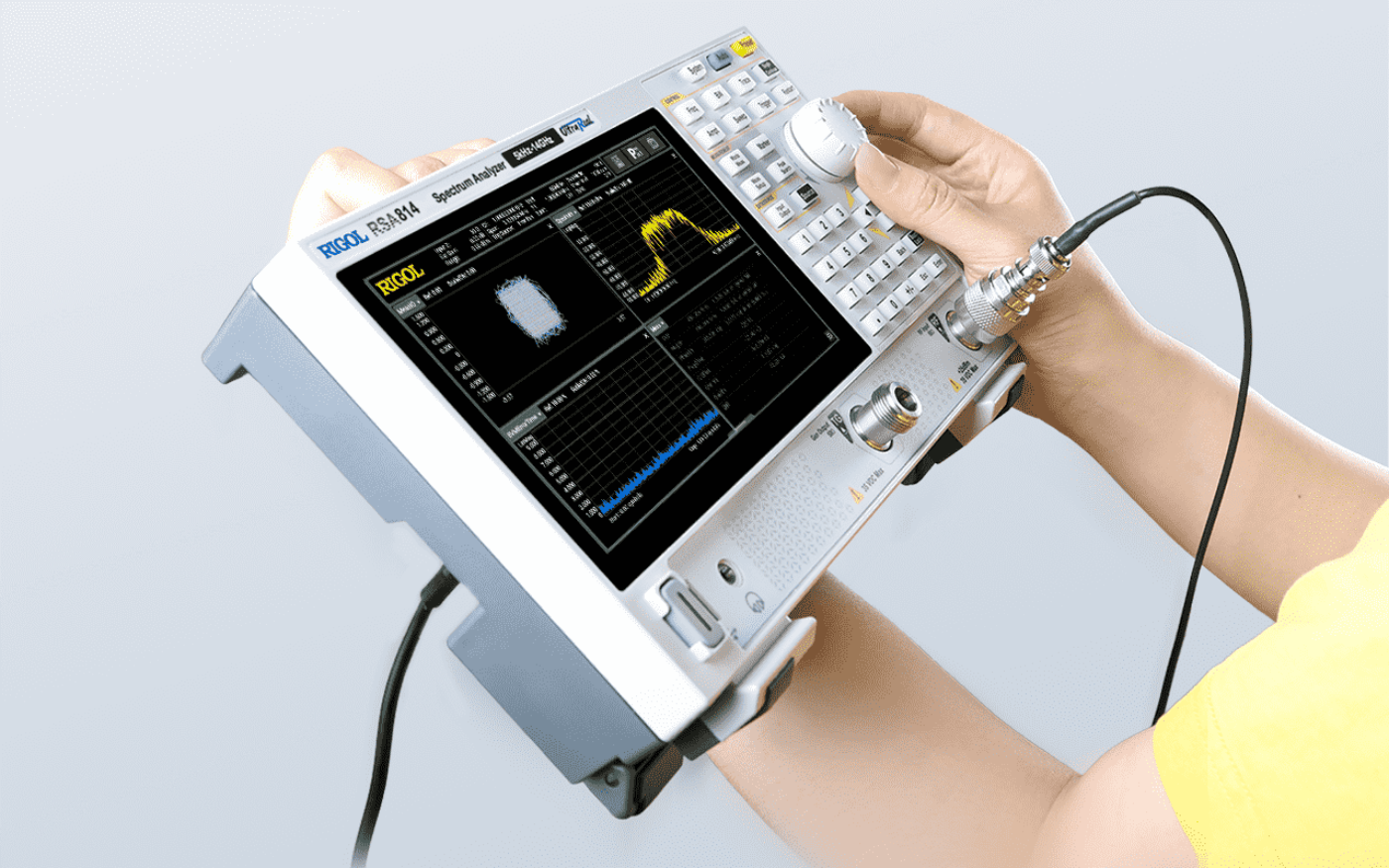

Capture Every Signal in Real Time
40 MHz Real-Time Spectrum Analysis: Reliably captures transient and intermittent signals in complex RF environments. 40 MHz Vector Signal Analysis Bandwidth: Enables in-depth analysis and performance evaluation of a wide range of broadband communication signals.

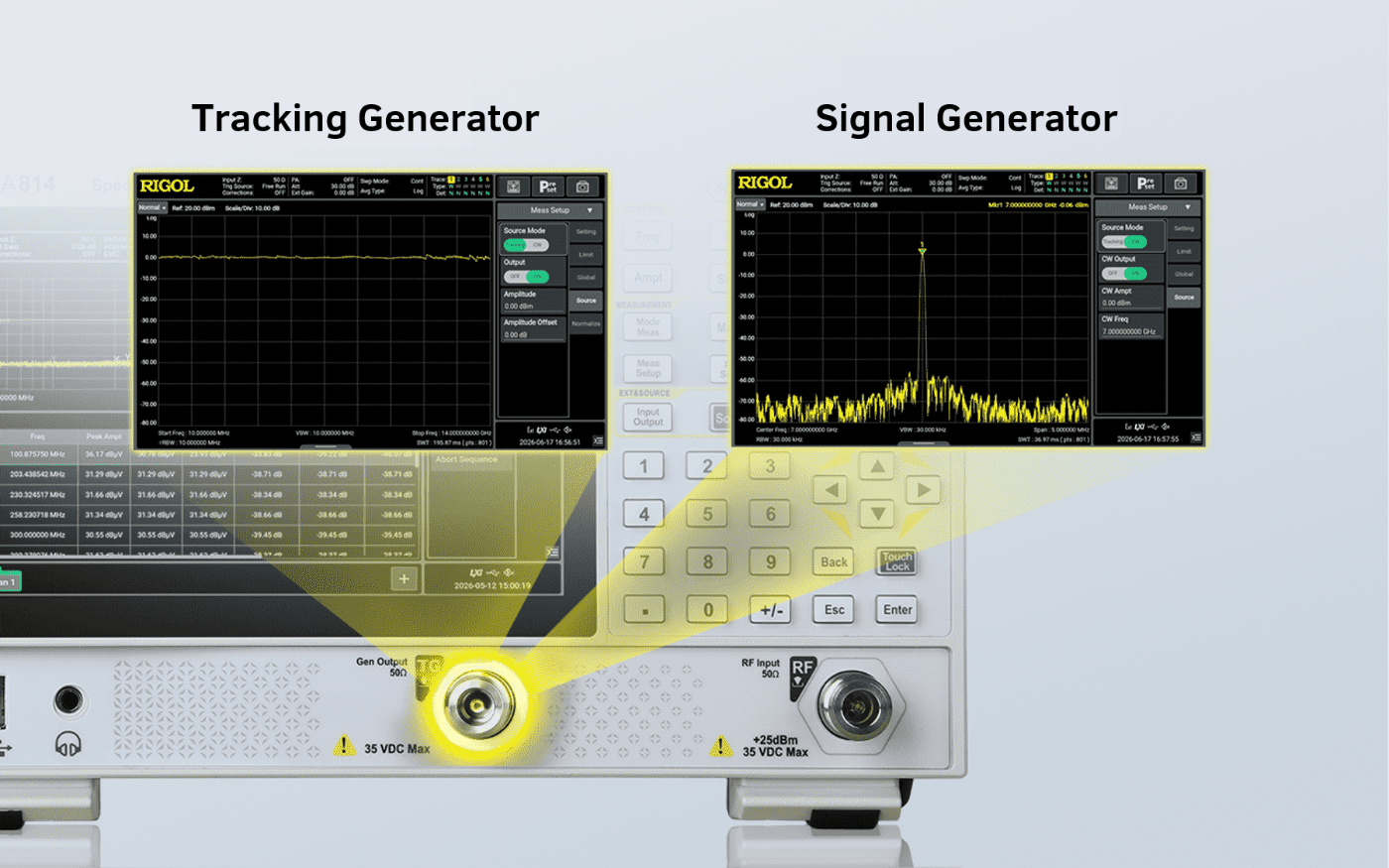

Premium Features. Standard Included.
No more essential add-ons. The RSA800 comes standard with a built-in preamplifier (PA) and 40 MHz real-time bandwidth. Its integrated tracking generator (TG) can also operate seamlessly as a standalone signal generator (SG).

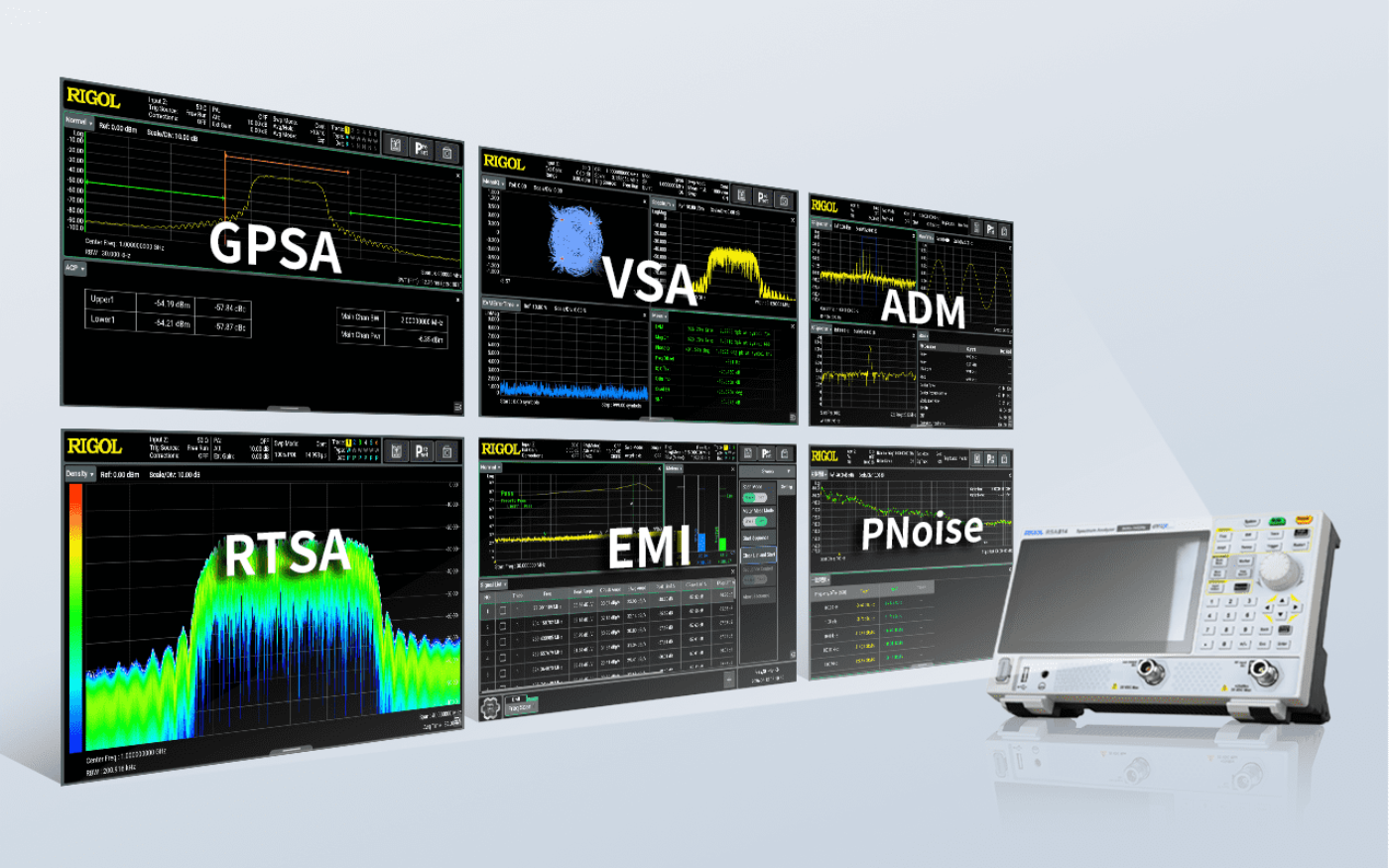

Comprehensive Measurement Applications
The RSA800 integrates a comprehensive suite of RF measurement applications, with software options available to expand functionality as your testing requirements evolve.

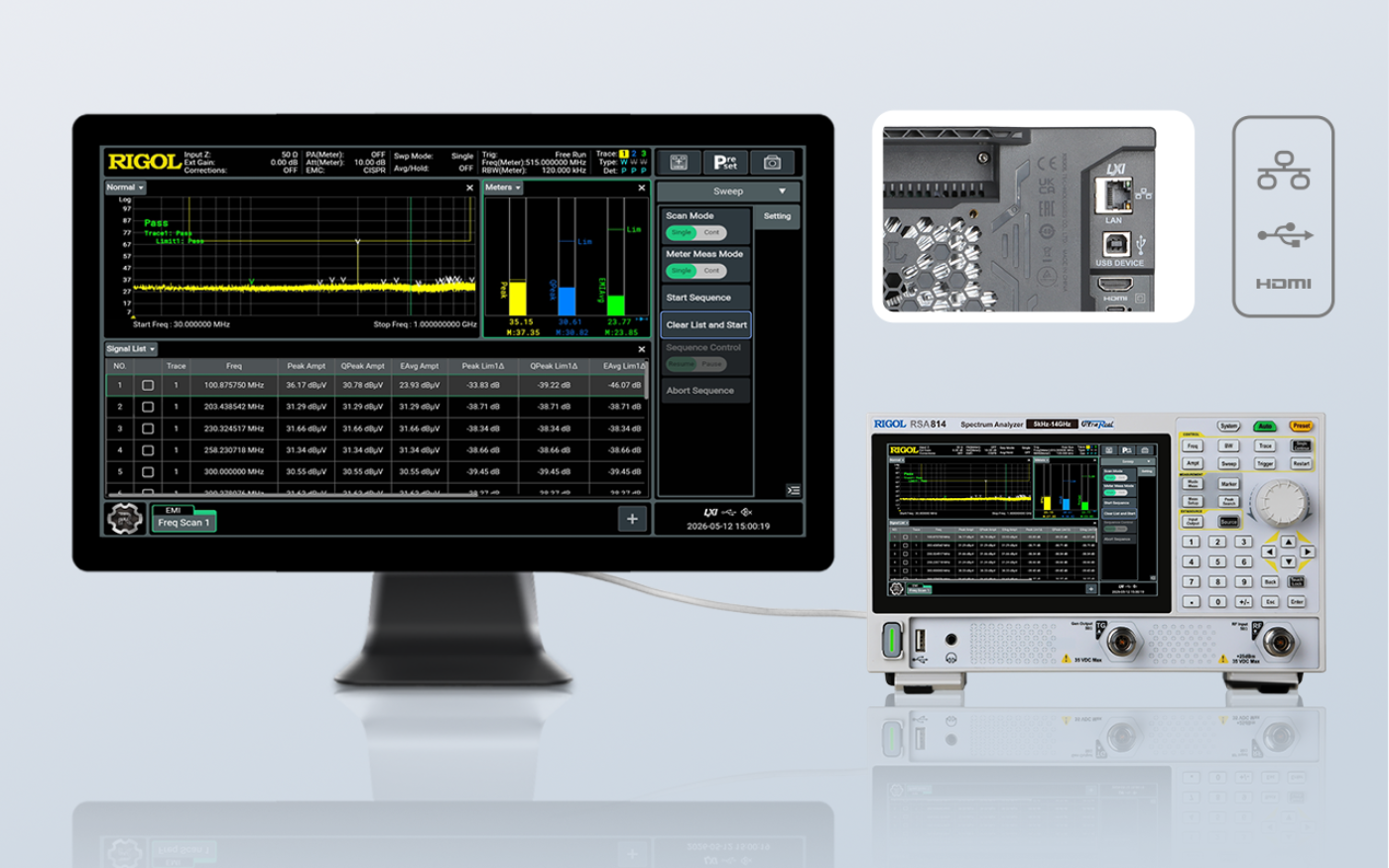

Standard USB, LAN and HDMI Connectivity
USB and LAN interfaces enable remote communication with full SCPI command support. The HDMI output allows connection to an external display for a clearer and more efficient viewing experience.

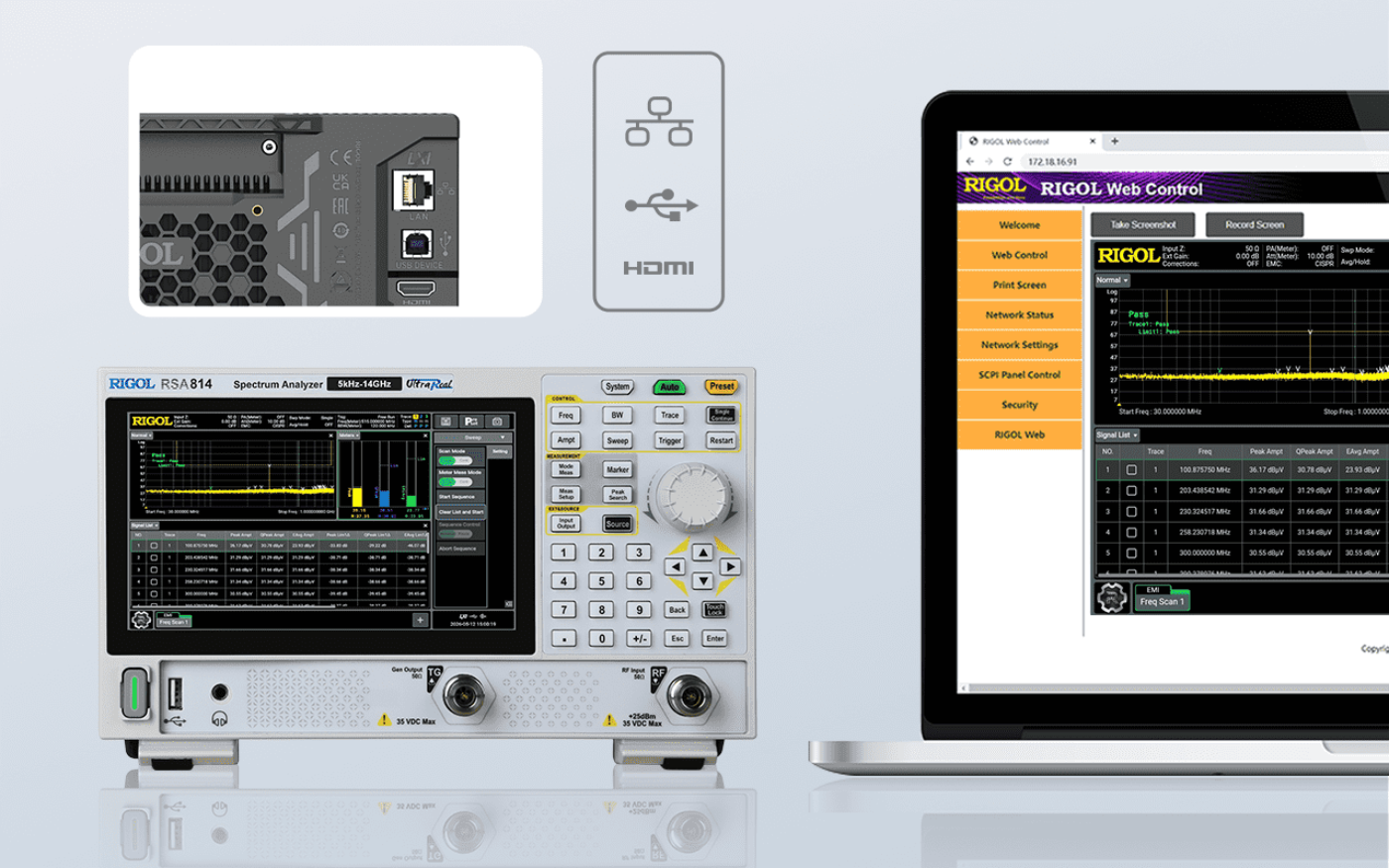

WebControl
Access and control the instrument directly through a web browser using its IP address—no PC software installation required. Ideal for remote operation and SCPI command debugging.
RSA800
Model |
Frequency |
RBW |
Phase Noise |
DANL |
Tracking Generator |
Price |
|
|---|---|---|---|---|---|---|---|
| RSA804 | 5 kHz ~ 4.5 GHz | 1Hz~10MHz | -112dBc/Hz@10kHz | -168 dBm (typ.) | Yes |
$2,399.00
Contact RIGOL |
|
| RSA808 | 5 kHz ~ 8.5 GHz | 1Hz~10MHz | -112dBc/Hz@10kHz | -168 dBm (typ.) | Yes |
$4,399.00
Contact RIGOL |
|
| RSA814 | 5 kHz ~ 14 GHz | 1Hz~10MHz | -112dBc/Hz@10kHz | -168 dBm (typ.) | Yes |
$7,999.00
Contact RIGOL |
|
Included Accessories
 EMC Precompliance Testing | This application note covers hints and tips for implementation of precompliance steps to help lower the cost of full compliance EMC testing. It also features a series of documents that have practical use details for EMC testing. |
| EMC Precompliance: Conducted Emission Testing | This application note covers standard practices for performing EMC conducted emissions tests using a Rigol DSA-815 spectrum analyzer. |
| Measuring Cable Loss with a Spectrum Analyzer | This Application Note covers how to measure cable loss using a spectrum analyzer outfitted with a tracking generator. |
| Using probes with a Spectrum Analyzer | This application note introduces the concept of using a passive high frequency oscilloscope probe with a spectrum analyzer. |
| EMC Precompliance: Near Field Probes | Near field probing tips for EMI precompliance testing. |
| S1210 EMI PreCompliance software | Download free trial of S1210 EMI software |
| UltraSigma Instrument Connectivity Driver | Software for Communicating with instruments over VISA. UltraSigma is also a container and gateway for software such as Ultra Signal Studio, Ultra Spectrum, Ultra Power, and more. |
 C#.NET basic instrument communication example | Here is a short example on using National Instrument VISA and C#.NET to communicate with an instrument. |
| How do I install UltraSigma Compatible software? | You will need to have Ultra Sigma installed first.
Contact Rigol for more information.
Ultra IQ provides modulation waveform editing for the DSG3000 series of RF sources.
Ultra Power provides instrument control and data collection for the Rigol DP series of power supplies.
Ultra Signal Studio is a legacy software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG4000 and DG5000 arbitrary waveform generators.
Ultra Station is a software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG1000Z, DG4000 and DG5000 arbitrary waveform generators.
Ultra Spectrum provides instrument control and spectrum analysis for Rigol DSA1000, 1000A, and 800 series Digital Spectrum Analyzers. |
| How do I install UltraSigma? | UltraSigma is a software installation that provides basic communications between a computer and an instrument using VISA.
It is also used to contain instrument specific software like UltraSpectrum for use with Rigol Spectrum Analyzers, Ultra Signal Studio for Arbitrary Waveform Generators, and Ultra Power for Power Supplies. |
| How do I retrieve data using UltraSigma and a DSA? | You can easily collect live and stored traces and other types of data using UltraSigma.
Please see the attachment. |
| Rigol Software Installation and Usage guide | An overview of the installation and usage of the Ultra Family of software products from RIGOL |
| User's Guide for UltraSigma Software | UltraSigma is a VISA based communication and shell program that eases communication and remote control of instrumentation.
We have built a short user's guide to familiarize user's with the features of UltraSigma. |
Included Accessories
Application Options
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
RSA800-ADM
|
Analog Demodulation Application Software Contact RIGOL |
$459.00
|
|
|
|
RSA800-EMI
|
EMI Measurement Application Software Contact RIGOL |
$459.00
|
|
|
|
RSA800-PNOISE
|
Phase Noise Measurement Contact RIGOL |
$459.00
|
|
|
|
RSA800-VSA
|
Vector Signal Analysis Application Software Contact RIGOL |
$899.00
|
|
|
Functional Options
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
RSA800-AMK
|
Advanced Measurement Kit Contact RIGOL |
$269.00
|
|
|
High Power Attenuator
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
ATT03301H
|
30dB High Power Attenuator, Max Power 100W In Stock |
$230.00
|
|
N Type Cable
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
CB-NM-NM-75-L-12G
|
N(M)-N(M) RF Cable In Stock |
$199.00
|
|
|
Rackmount Kit
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
|
RM5041
|
The RM5041 is compatible with the DHO800, DHO900, MHO900, DG800 Pro, DG900 Pro, and DM858 series. Contact RIGOL |
$179.00
|
|
RF Attenuator Kit
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RF Attenuator Kit
|
Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) Ships in 8 weeks |
$524.00
|
|
RF CATV Kit
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RF CATV Kit
|
Kit Includes 50 to 75 Ohm Adaptors (2pcs) In Stock |
$419.00
|
|
SMA Cable
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
CB-NM-SMAM-75-L-12G
|
N(M)-SMA(M) RF Cable In Stock |
$199.00
|
|
|
Utility Kit
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
DSA Utility Kit
|
DSA Accessories Package including cables, adaptors, and antennas. In Stock |
$831.00
|
|
