DG2000
Engineers who require high signal fidelity in a reliable and capable waveform generation need look no further than the DG2000 Series generators. With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts the DG2000 reproduces any waveform with high signal fidelity. SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market. The hybrid touch interface and industrial design make it the perfect choice for your lab while standard Ethernet and USB make it the choice for engineers who need to programmatically control their instrument.
Explore the DG2000 Series Function/Arbitrary Waveform Generator
4.3 Inch Touch Screen

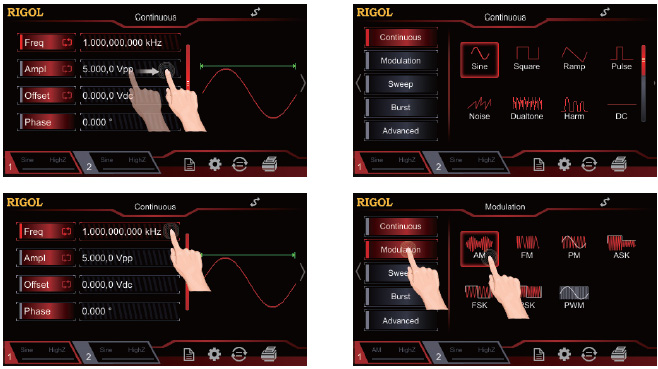

The combination of touch screen control with click and slide and multi-function knob makes it easy to find and update waveform settings; switch between channels, configure each channel, and easily load standard functions or arbitrary waves.
16bit Vertical Resolution

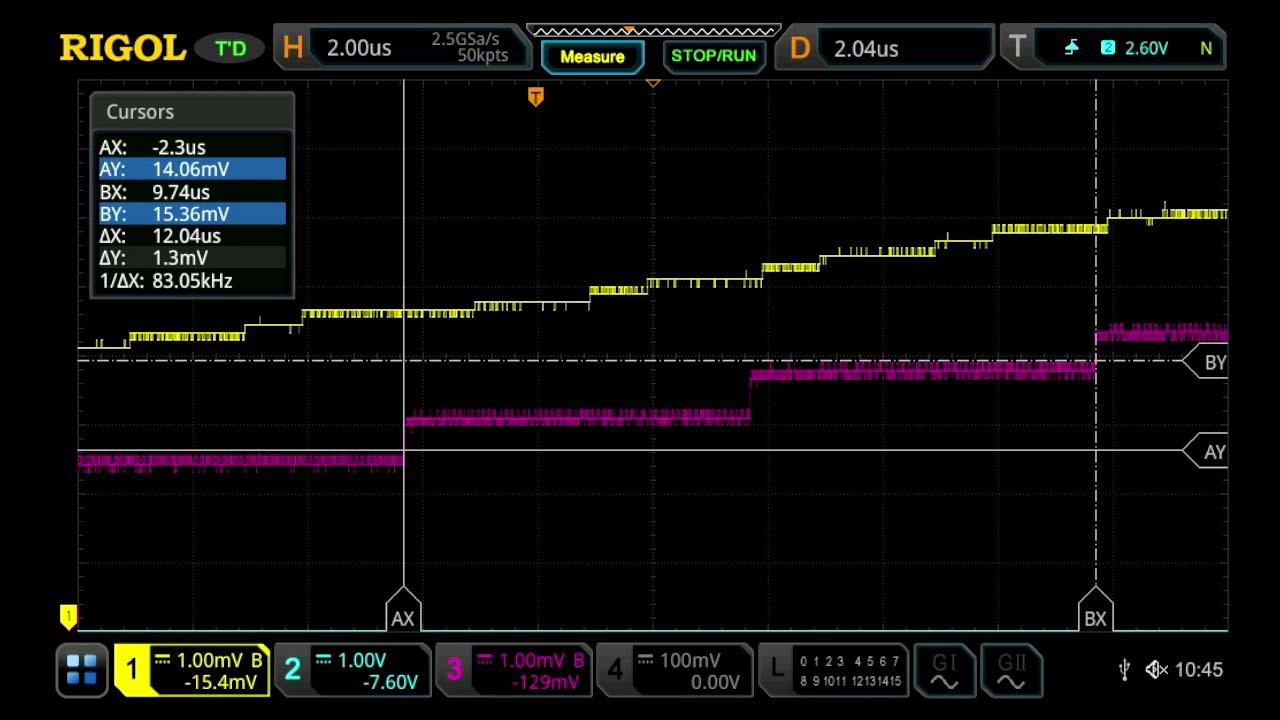

DG2000 series generators extend output at 16 bit resolution The resolution of the output voltage is 4 times that of the traditional 14 bit generator. DG2000 can reproduce any waveform more reliably and improve the fidelity and performance of the signal.
SiFi II Technology

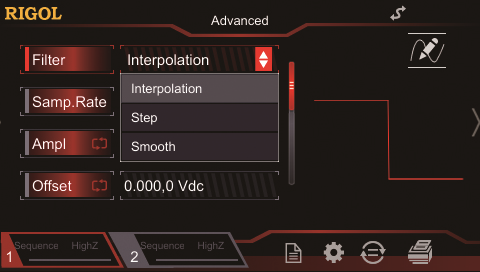

Sifi II technology allows you to output signals flexibly through filtering options such as stepping, smoothing and interpolation These options in the powerful signal sorting function can provide precise roll down control for the signal you select. Combine these flexible playback options or use edge time in interpolation mode to define the range of broadband components in the signal.
Support Multiple Signal Outputs

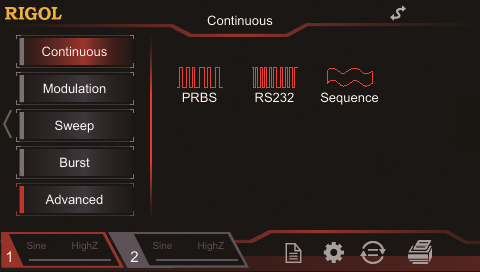

Create and combine complex signal sequences, simulate or analyze faults through finger touch. A wide range of test signals are simulated by combining different waveform types, including dual tone, arbitrary wave and noise DG2000 also has the function of generating RS232 sequence and PRBS, which can be used in test sequence of advanced application.
Harmonic Generator

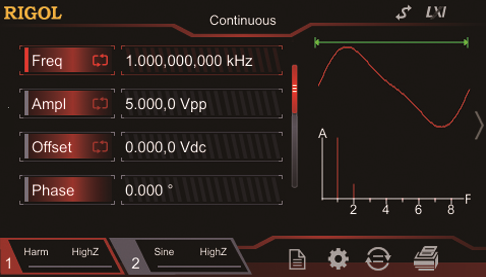

DG2000 has built-in 8-th harmonic generator function and outputs harmonics with specified times, amplitude and phase. It is usually used in the test of harmonic detection equipment or harmonic filter equipment.
Fanless silent design
It adopts a fanless design structure and operates without noise interference.
Signal Jitter As Low As 200ps

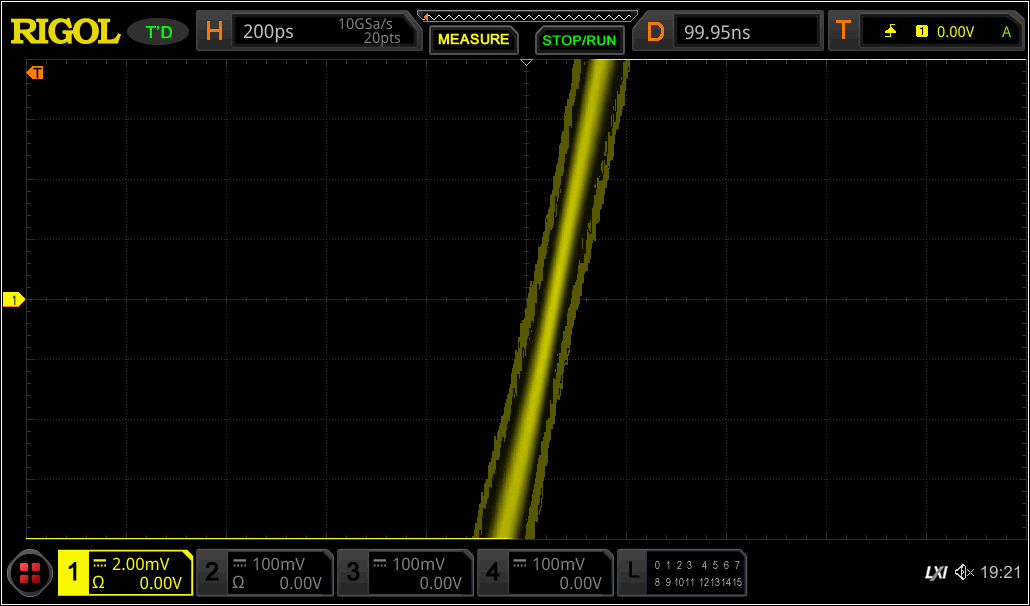

DG2000 series function / arbitrary waveform generator is based on SIFI II technology created by RIGOL. It can generate arbitrary wave point by point and restore signal without distortion. The sampling rate can be adjusted precisely, compared with the traditional DDS signal source, the signal jitter is lower, and the jitter of all output signals is as low as 200ps.
DG2000
Model |
Output Frequency- SINE |
Output Frequency- Square |
Channels |
Arbitrary Waveform Length |
Price |
|
|---|---|---|---|---|---|---|
| DG2052 | 50 MHz | 15 MHz | 2 channels | 16 M | $599 |
|
| DG2072 | 70 MHz | 20 MHz | 2 channels | 16 M | $799 |
|
| DG2102 | 100 MHz | 25 MHz | 2 channels | 16 M | $999 |
|
DG2000 Programming Guide
|
|
DG2000 Datasheet & Specs
|
 Ultra Station Software (New) | Waveform creation and manipulation software. Compatible with:DG1000ZDG2000DG4000DG5000 & DG5000 ProDG800 & DG800 ProDG900 & DG900 ProMSO5000 (if generator option enabled)MSO7000 (if generator option enabled)MSO8000 (if generator option enabled) |
| Ultra Station Software (old) | Waveform creation and manipulation software for DG1Z, DG4K, DS scopes with sources (-S), and DG5K series instruments. |
| UltraSigma Instrument Connectivity Driver | Software for Communicating with instruments over VISA. UltraSigma is also a container and gateway for software such as Ultra Signal Studio, Ultra Spectrum, Ultra Power, and more. |
| Ultra Station-adv | Full advanced version of UltraStation wave generation software for DG1000Z, DG4000, DG5000 Series generators as well as DS1000Z and DS2000A "-S" embedded generators. This is a software upgrade license. |
