DG900 Pro Series   |  Function / Arbitrary Waveform Generators

DG900 Pro

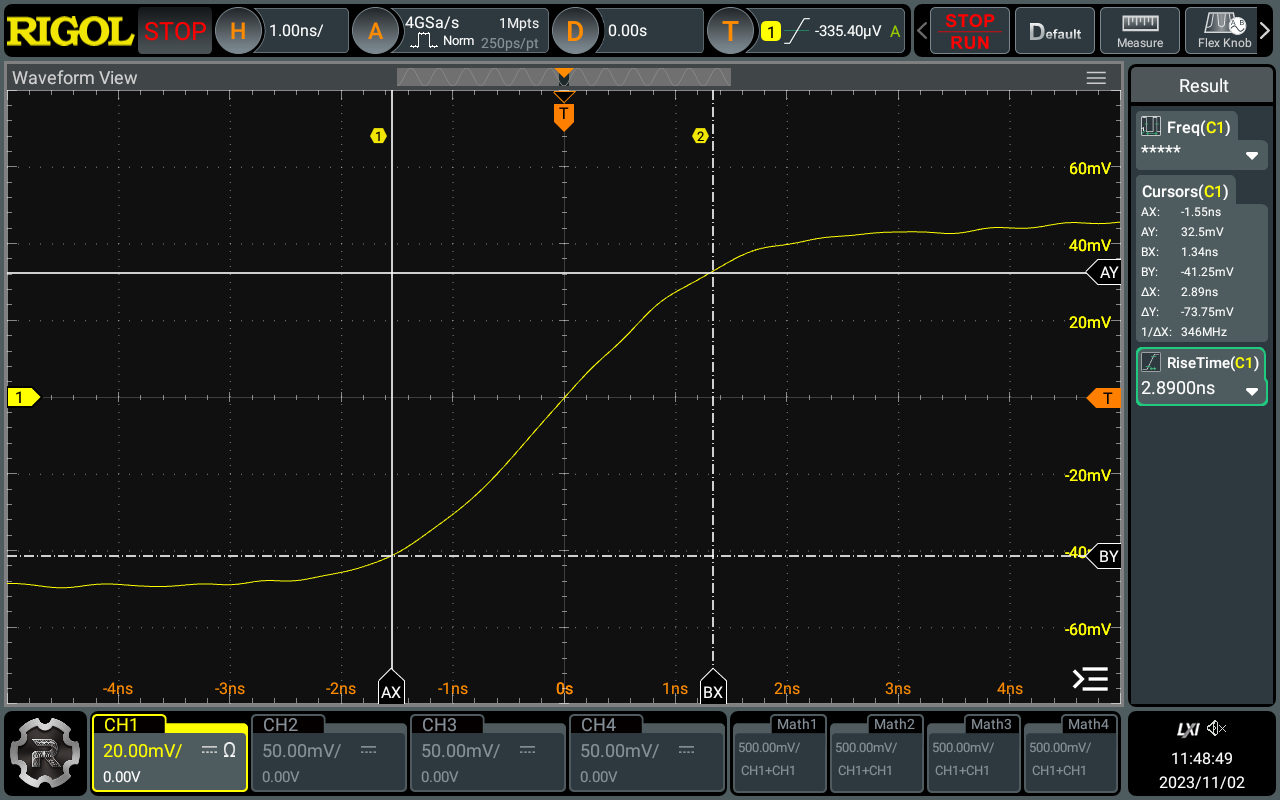

The DG900 Pro Series function/arbitrary waveform generator is an instrument packed with functionality, including function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, and frequency counter. It delivers impressive performance for a generator of its size, offering a maximum output frequency of 200 MHz, 1.25 GSa/s sample rate, 3 ns rise time, 16-bit vertical resolution, and up to 32 Mpts/CH waveform length.
Product Feature Customer Benefit

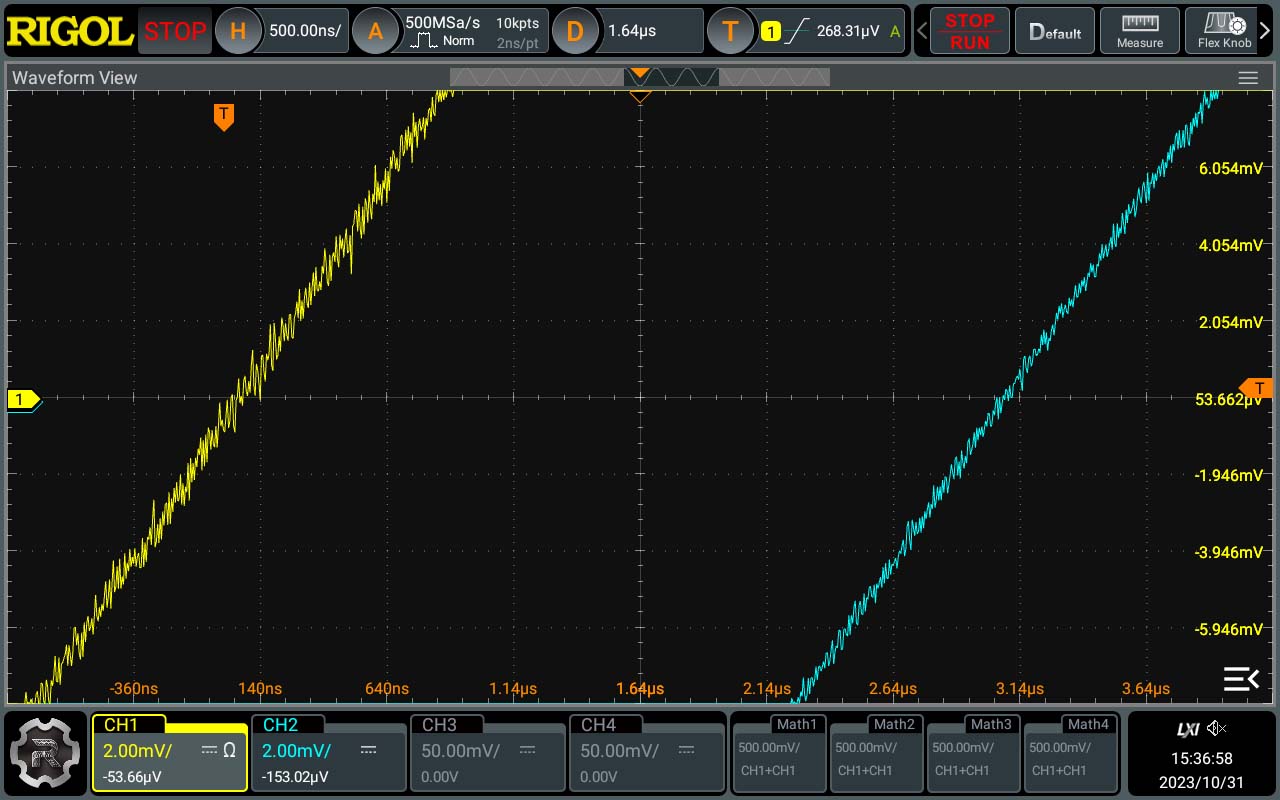

1.25 GSa/s sample rate and 16-bit vertical resolution Ensures more accurate waveform output

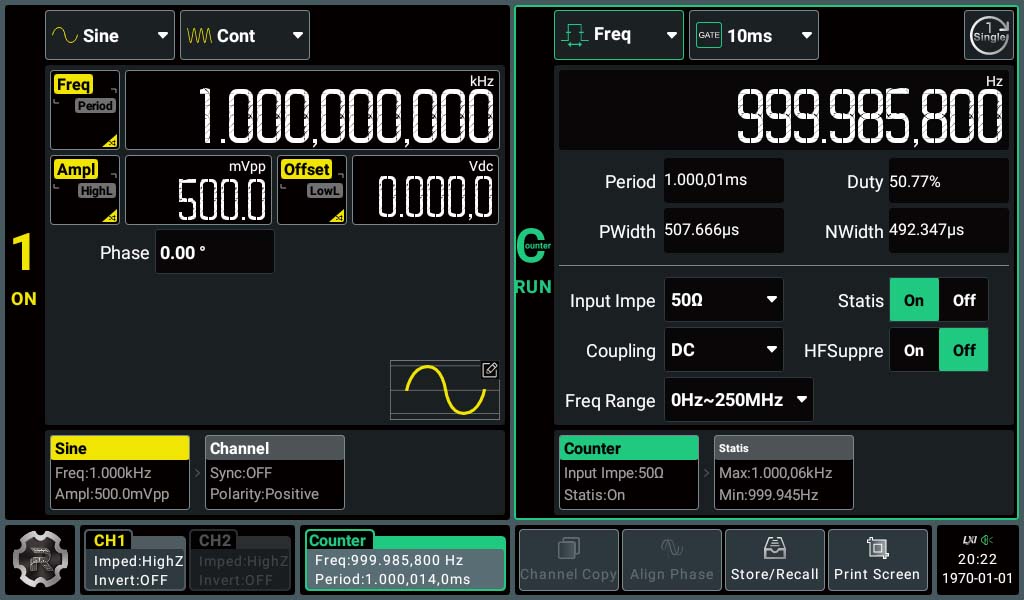

Integrated 1 GHz frequency counter Enables measurement of HF signals for easier debugging

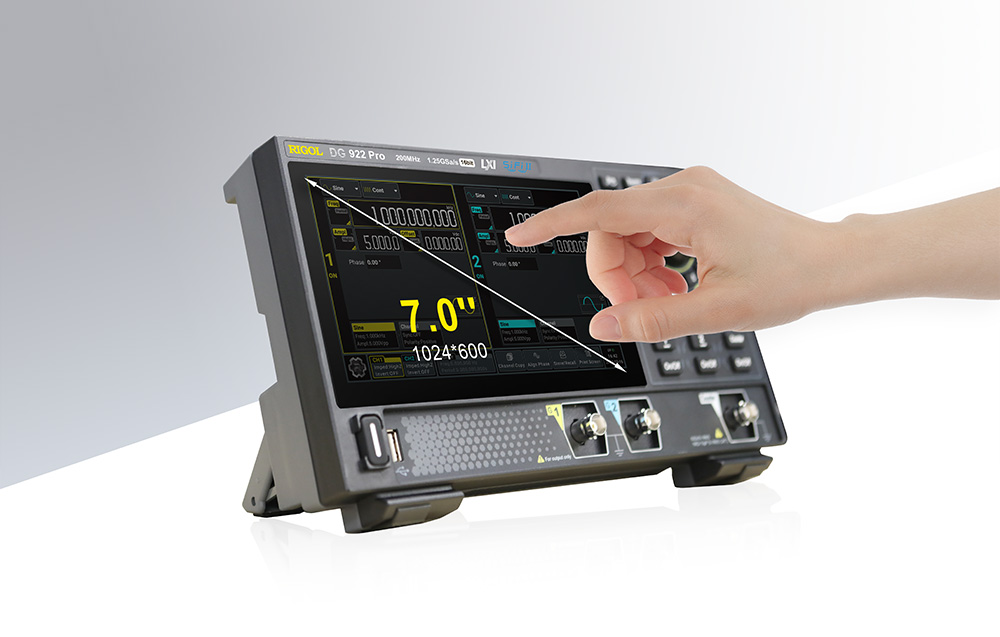

7” touch screen with dual-display capability Configure dual-channel waveforms concurrently

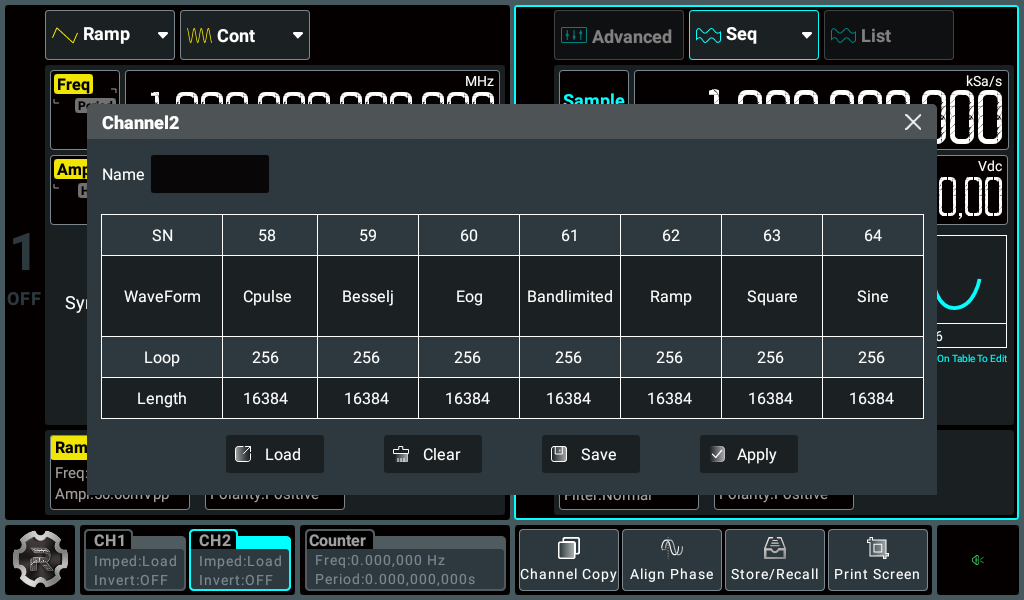

Sequence Mode Allows a user to load multiple test cases to be performed sequentially and automatically (up to 64 steps and 256 repetition counts)
Provides multiple modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, and SUM) Supports a variety of applications, including the evaluation of motor controls and switch-mode power supplies

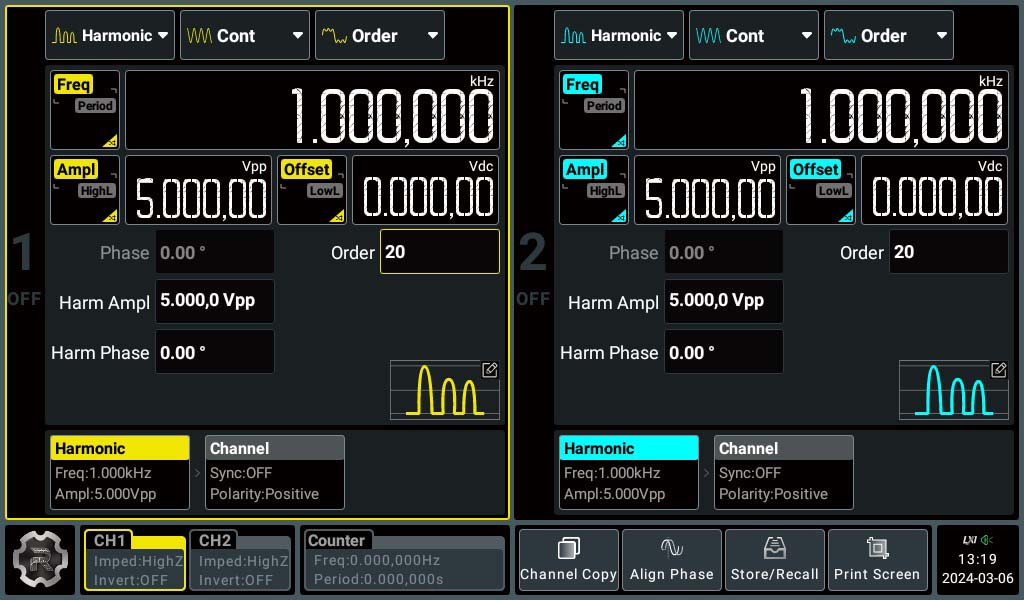

Integrated harmonic generator Provides a more accurate test method for devices like high-order filters and amplifiers

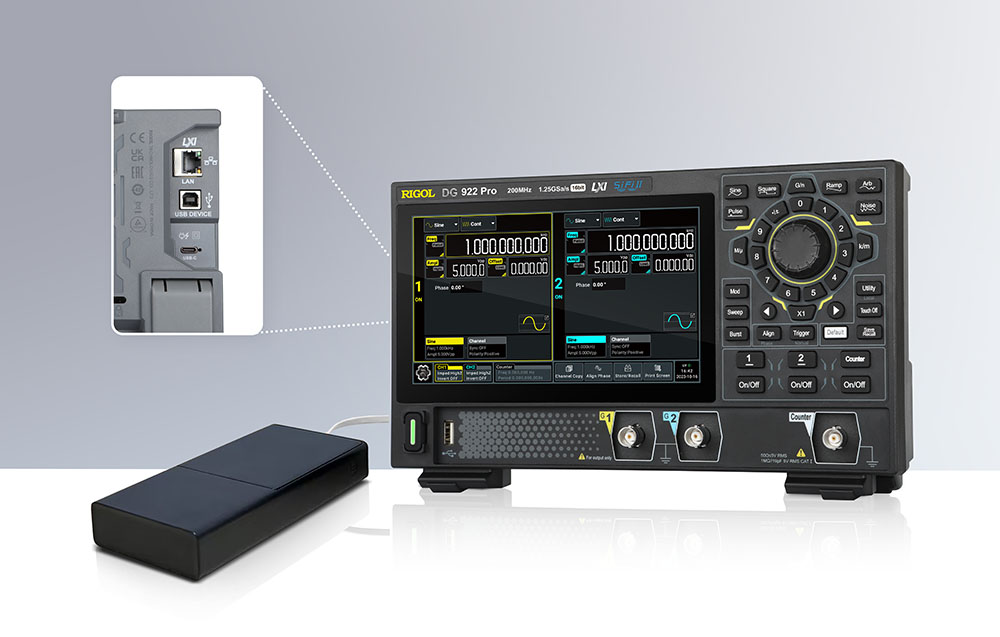

Type-C power interface Enables the use of mobile power banks for measurement functionality on the go

Product View

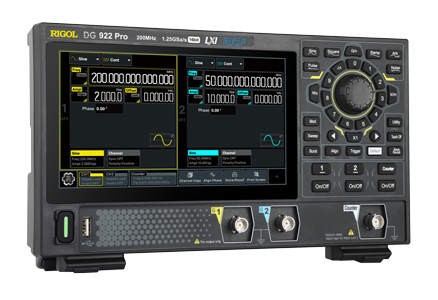

DG900 Pro

Specs

Please scroll to the sides when using small displays
Model Max Output FrequencySample RateVertical ResolutionArbitrary Waveform LengthChannels Price
DG902 Pro 70 MHz1.25 GSa/s16 bits16 Mpts (32 Mpts optional) 2 channels $699 In Stock
DG912 Pro 150 MHz1.25 GSa/s16 bits16 Mpts (32 Mpts optional) 2 channels $899
DG922 Pro 200 MHz1.25 GSa/s16 bits16 Mpts (32 Mpts optional) 2 channels $1,199

 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

Please scroll to the sides when using small displays

Deep Arb Memory

DG900 Pro-3RL

32M upgrade option for DG900 Pro Series Generators



$289

Please scroll to the sides when using small displays
CB-BNC-BNC-MM-100

BNC Cable (length 1 meter)

Please scroll to the sides when using small displays

Deep Arb Memory

DG900 Pro-3RL

32M upgrade option for DG900 Pro Series Generators



$289

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Instrument Carrying Case

BAG-800

Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800



$69

Attentuator

RA5040K
40 dB attenuator accessory for oscilloscopes or generators



$47
