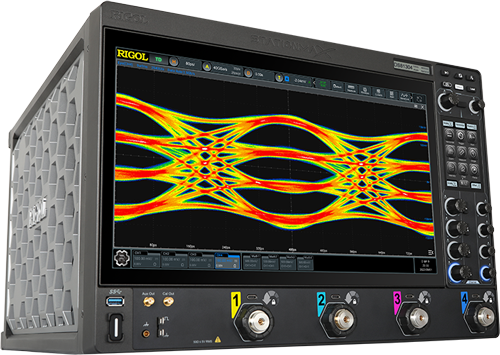

DS80000 Series   |  High-Resolution Oscilloscopes

DS80000
The DS80000 Series digital oscilloscope is the eighth-generation digital oscilloscope independently developed by RIGOL. Based on the StationMAX II platform, it achieves a maximum real-time sampling rate of 40 GSa/s and an analog bandwidth of up to 13 GHz. In addition to hardware improvements, the DS80000 Series digital oscilloscope also provides a variety of user-friendly feature to ensure high-quality customer experience.
DS80000 Series Data Sheet
Product Feature Customer Benefit

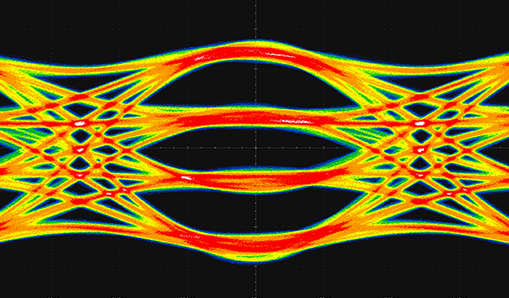

Higher bandwidth & sampling Based on the StationMAX II hardware technology platform, it achieves a maximum real-time sampling rate of 40 GSa/s and an analog bandwidth of 13 GHz, which can more realistically restore signals and cover more applications.

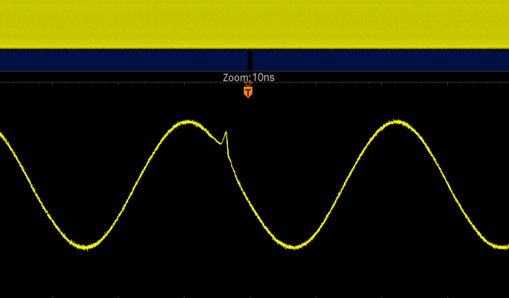

Deep memory & high fidelity Based on the RIGOL new generation UltraVision III platform, it achieves a maximum storage depth of 4 Gpts, allowing DS80000 to have high-fidelity signal acquisition capability and capture waveforms for longer periods of time at high sampling rates.

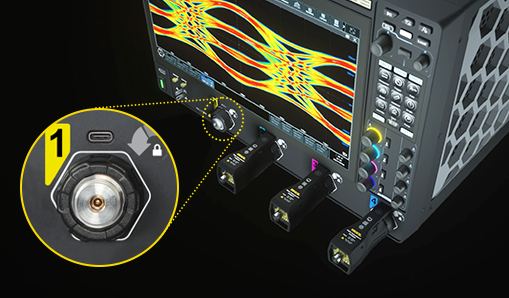

New interface design The DS80000 series adopts the RIGOL SmartProbe 2.0 interface, which supports direct signal connection with 3.5 mm connectors, and is equipped with RIGOL's self-developed probe adapter. It can also be backward compatible with the previous generation of RIGOL probes, providing convenience.

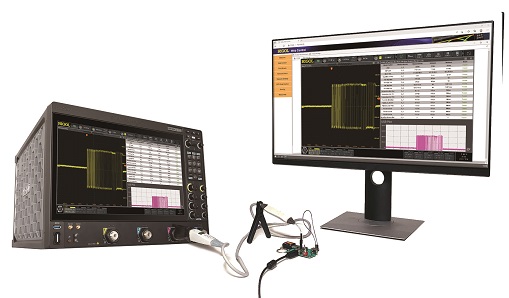

Performance for High-Speed Applications The DS80000 oscilloscope’s bandwidth and sample rate performance are ideally suited to the performance verification of high-speed devices and systems, high-speed bus compliance analysis, DDR debugging and other application scenarios, helping engineers solve more testing challenges.

Product View

DS80000
Purchasing Info
Buy Now Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (877) 474-4651

Read about our 3 Year Warranty
Product Info
 DS80000 Series Data Sheet   Firmware

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsBandwidthMax Sample RateMax Memory DepthWaveform Capture Rate Price
DS80604 4 6 GHz40 GSa/s500 Mpts(std)
2 or 4 Gpts (opt)		250,000 wfms/s Request a Quote
DS80804 4 8 GHz40 GSa/s500 Mpts(std)
2 or 4 Gpts (opt)		250,000 wfms/s Request a Quote
DS81004 4 10 GHz40 GSa/s500 Mpts(std)
2 or 4 Gpts (opt)		250,000 wfms/s Request a Quote
DS81304 4 13 GHz40 GSa/s500 Mpts(std)
2 or 4 Gpts (opt)		250,000 wfms/s Request a Quote
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

 UltraSigma Instrument Connectivity Driver C#.NET basic instrument communication example How do I install UltraSigma Compatible software? How do I install UltraSigma? Rigol Software Installation and Usage guide User's Guide for UltraSigma Software
Please scroll to the sides when using small displays

4 Gpts Memory Upgrade

DS80000-RLU-40

DS80000-RLU-40 - 4 Gpts Memory Depth Upgrade Option



$13,880

Jitter & Eye Analysis

DS80000-JITTA

DS80000-JITTA - Advanced Eye Diagram and Jitter Analysis Option



$6,880

Please scroll to the sides when using small displays
Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

4 Gpts Memory Upgrade

DS80000-RLU-40

DS80000-RLU-40 - 4 Gpts Memory Depth Upgrade Option



$13,880

Jitter & Eye Analysis

DS80000-JITTA

DS80000-JITTA - Advanced Eye Diagram and Jitter Analysis Option



$6,880

MIL-STD-1553 Serial Bus Decode

DS80000-AEROA

DS80000-AEROA - MIL-STD-1553 Serial Bus Triggers and Decoding



$2,280

Audio Serial Bus Decode

DS80000-AUDIOA

DS80000-AUDIOA - Audio Serial Bus Trigger and Decoding (I2S)



$2,280

Automotive Serial Bus Decode

DS80000-AUTOA

DS80000-AUTOA - Auto Serial Bus Trigger and Decoding (CAN, CAN-FD, LIN, FlexRay)



$2,280

Embedded Serial Bus Decode

DS80000-EMBDA

DS80000-EMBDA - Embedded Serial Bus Trigger and Decoding (RS232/UART, I2C, and SPI)



$2,280

Ethernet Compliance Test

DS80000-ENETC

DS80000-ENETC - 100M/1000M Ethernet Compliance Test



$6,880

2 Gpts Memory Upgrade

DS80000-RLU-20

DS80000-RLU-20 - 2 Gpts Memory Depth Upgrade Option



$9,680

USB2.0 Compliance Test

DS80000-USBC

DS80000-USBC - USB2.0 Compliance Test



$2,780

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Probe Adapter

BNC Adapter Input 50 Ω

BNC Adapter Input 50 Ω - Probe Adapter, 3.5 mm to BNC (50Ω)



$0

High-impedance Probe Adapter

High Impedance Adapter

High Impedance Adapter - High-impedance Probe Adapter, 3.5 mm to BNC (1 MΩ)



$2,780

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$19

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$20

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe



$799

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe



$999

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$1,590

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$1,560

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$867

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$3,408

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$4,909

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$4,332

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$5,490

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$524

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,038

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$473

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$788

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$243
