DG900 Series   |

High Resolution Arbitrary Waveform Generators With SiFi II Technology

DG900

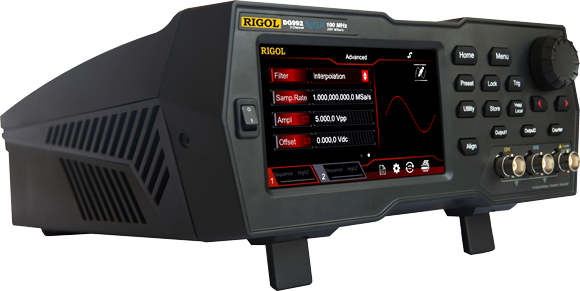

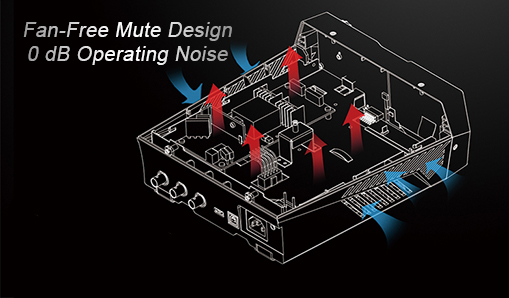

Engineers and students who require high signal fidelity in a reliable and capable waveform generation need look no further than the DG900 Series generators. With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts the DG900 reproduces any waveform with high signal fidelity.  SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market.  The intuitive touchscreen control and compact fanless design make it the perfect choice for your desk, bench, or lab.
Check out our new DG900 Pro Series Generators that combines competitive performance with a 7” touch screen and compact chassis
Product Feature Customer Benefit
  16 bit resolution Improved signal fidelity

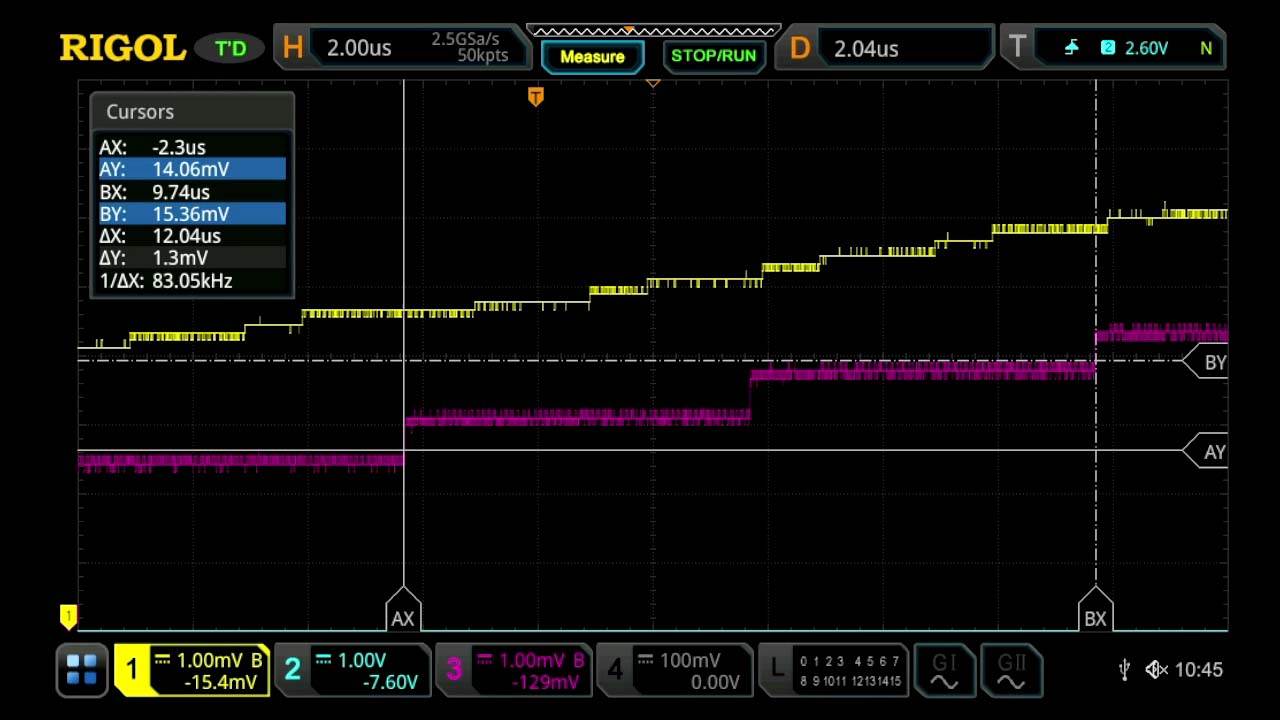

Improved signal fidelity   The DG900 Series generators extend the output with 16 bits of resolution. With 4 times as many output voltage options vs traditional 14 bit generators the DG900 more reliably reproduces any waveform - improving signal fidelity and performance.

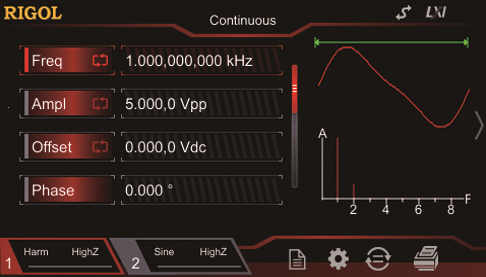

  Touch Screen Design Easy to configure and operate

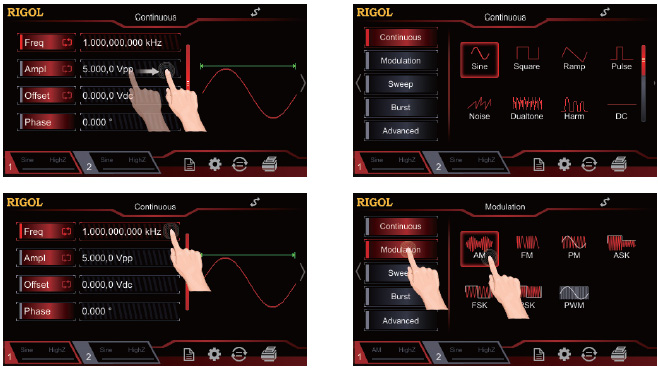

Easy to configure and operate   The touch screen control with tap and slide combined with the multifunction knob makes it simple to find and update your waveform settings. Switch between channels, configure each channel, and load standard functions or arbitrary waves with ease.
  SiFi II Technology Completely customize the wideband content in your waveforms

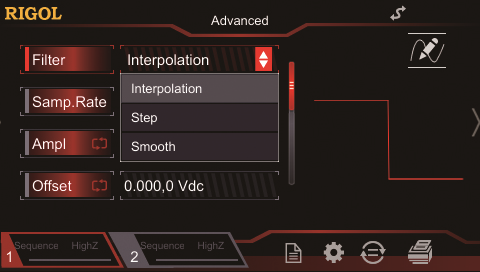

Completely customize the wideband content in your waveforms   Maximum flexibility in how your signals are represented with filtering options like step, smooth, and interpolation. These options within powerful signal sequencing gives you precise rolloff control for your signal of choice. Combine these flexible playback options or use Edge time in interpolation mode to customize the reach of the wideband components within a signal.
  Arb Sequencing Combine signals together quickly and easily for more advanced applications

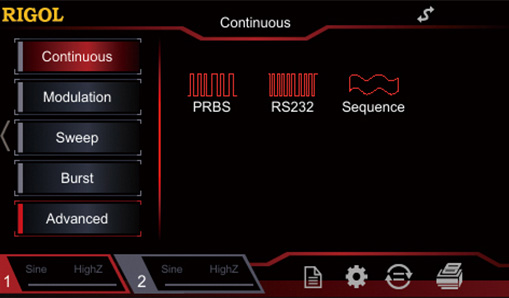

Combine signals together quickly and easily for more advanced applications   Create and combine complicated sequences of signals for emulation or failure analysis with the touch of a finger. Combine cycles of different waveform types including dual tone, arbitrary waves, and noise to mimic a broad set of test signals. The DG900 also includes the capability to generate RS232 sequences and Pseudo-Random Bit Sequences (PRBS) to use within a test sequence for advanced applications. Now you can create complete test sequences from the front panel for waveforms that used to require interactive PC control, saving time and money.
  Deep Memory Arbitrary waves Create longer signals without losing signal quality
Create longer signals without losing signal quality   With up to 16 million points of memory for arbitrary waves on the DG900 engineers can develop complete test sequences that accurately represent long durations of high speed signals. Combine that with sequencing capabilities to create dynamic signal types that can be generated interactively from the front panel. With a full 16 million point arbitrary waveform the DG900 can sample at 60 MSa/sec using SIFI II technology to emulate as much as a quarter of a second of signal with 16 bit resolution with no gaps or repeats

Product View

DG900

Specs

Please scroll to the sides when using small displays
Model Output Frequency- SINEOutput Frequency- SquareArbitrary Waveform LengthSample RateChannels Price
DG952 50 MHz15 MHz16 M250 MSa/s2 channels $719 In Stock
DG972 70 MHz20 MHz16 M250 MSa/s2 channels $959 In Stock
DG992 100 MHz25 MHz16 M250 MSa/s2 channels $1,199 In Stock

 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

Please scroll to the sides when using small displays

LAN Communication

USB-LAN
USB2.0 to 100Mbps Ethernet Adapter



$49

Please scroll to the sides when using small displays
CB-BNC-BNC-MM-100

BNC Cable (1 meter length)

USB Cable

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Arbitrary Wave Generation Software

Ultra Station-adv
Full advanced version of UltraStation wave generation software for DG1000Z, DG4000, DG5000 Series generators as well as DS1000Z and DS2000A "-S" embedded generators. This is a software upgrade license.



$115

Please scroll to the sides when using small displays

LAN Communication

USB-LAN
USB2.0 to 100Mbps Ethernet Adapter



$49

GPIB Adaptor

USB-GPIB-L
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly. "-L' Model for DL3000, DG800, and DG900 series.



$346

IoT Design Challenges Seminar
Register to check out our new IoT Webinar Series.
Topics Include:
  • Debugging Serial Communication
  • RF Sensor Integration and Demodulation
  • Characterizing Power Requirements
Register Here
